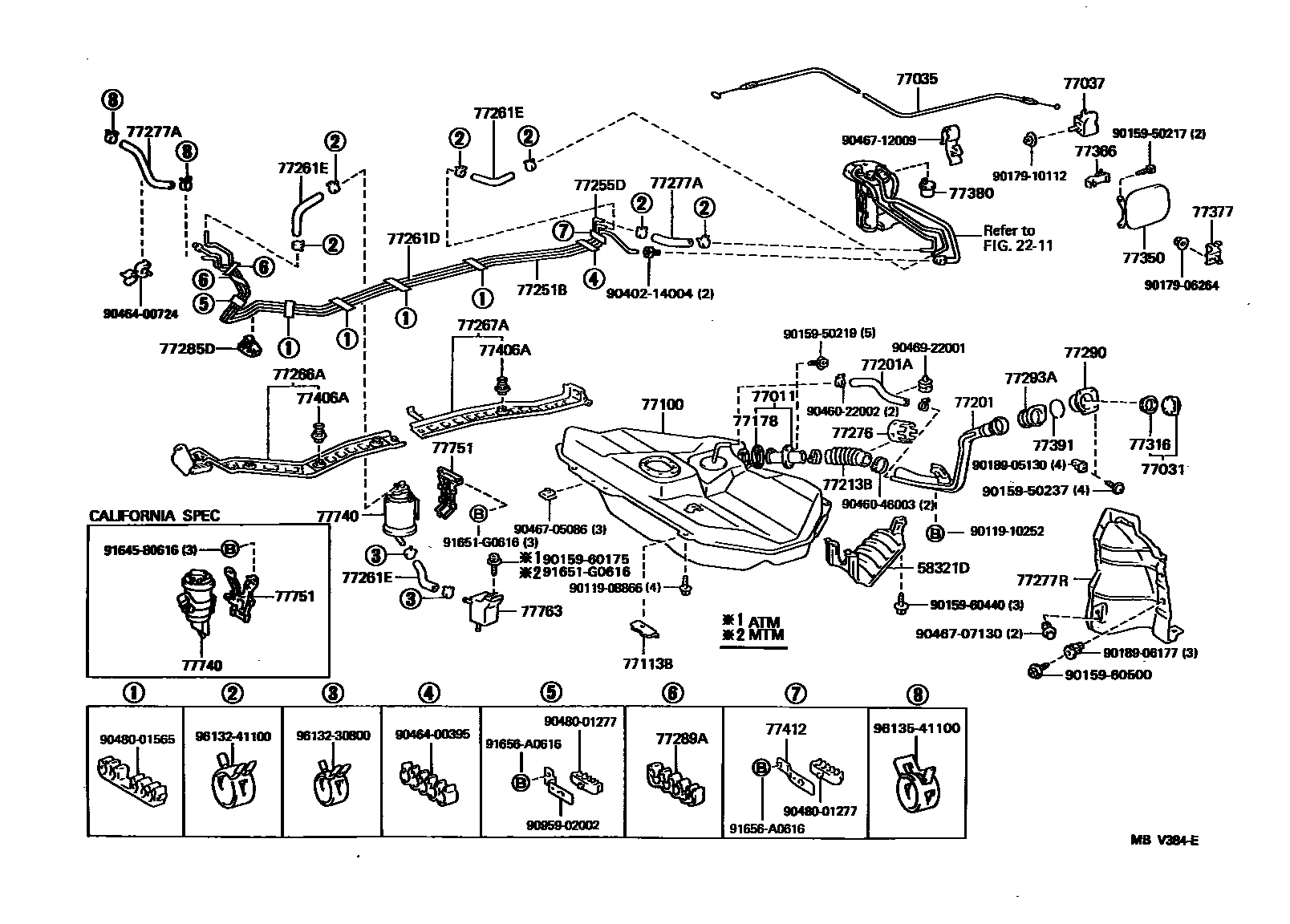

FUEL TANK & TUBE

2211

58321DINSULATOR, REAR FLOOR HEAT, NO.1

main58321-10020iEL44199104-199508

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10060iEL44199208-199508

main77011-16080iEL44199104-199208

sub77011-10060

77031CAP ASSY, FUEL TANK

main77310-12140iEL44199104-199508

main77310-16011iEL44..CND199401-199508

CHILE SPEC OR BRAZIL SPEC

sub77310-12140

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-16190iEL44199104-199508

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-16030iEL44199104-199508

77100TANK ASSY, FUEL

main77001-16220iEL44199104-199508

sub77001-16230

77113BPLATE, FUEL TANK SIDE

main77113-10020iEL44199104-199508

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iEL44199208-199508

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-16210iEL44199104-199105

sub77201-16211

main77201-16211iEL44199105-199508

sub77201-16280

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13028iEL44199104-199508

L=280

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-16070iEL44199104-199508

sub77213-16110

77251BTUBE, FUEL MAIN

main77251-16190iEL44199104-199508

main77251-16240iEL44..USA199409-199508

CALIFORNIA SPEC

77255DTUBE, FUEL RETURN

main77255-16180iEL44199104-199508

77261DTUBE, FUEL TANK TO CANISTER

main77261-16110iEL44199104-199508

main77261-16150iEL44..USA199409-199508

CALIFORNIA SPEC

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main77259-20120iEL44199104-199508

L=170

main77419-10010iEL44199104-199508

L=140

main90445-14167iEL44..ATM199104-199508

L=210

main95333-06010iEL44..USA199409-199508

L=100,CALIFORNIA SPEC

main95333-08030iEL44..MTM199104-199508

L=300

77266APROTECTOR, FUEL TUBE, NO.1

main77266-10030iEL44199104-199508

77267APROTECTOR, FUEL TUBE, NO.2

main77267-16020iEL44199104-199508

77276PROTECTOR, FUEL HOSE

main77276-10020iEL44199104-199508

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main23271-11150iEL44199104-199508

*H,L=360

main23271-11230iEL44..USA199409-199508

*H,L=360,CALIFORNIA SPEC

main77279-10020iEL44199104-199301

L=200

sub95333-06020

main95333-06020iEL44199301-199508

L=200

sub95337-06020

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-16110iEL44199104-199508

77285DCLAMP, FUEL TUBE, NO.1

main77285-10010iEL44199307-199508

77289ACLAMP, FUEL TUBE W/GROMMET, NO.3

main77289-10030iEL44199104-199508

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-16100iEL44199104-199508

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-16090iEL44199104-199508

77316GASKET, FUEL TANK CAP

main77316-16010iEL44199104-199508

77350LID ASSY, FUEL FILLER OPENING

main77350-16180iEL44199104-199508

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-20030iEL44199104-199508

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iEL44199104-199508

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iEL44199208-199508

77391RING, FUEL INLET BOX

main77391-14020iEL44199104-199508

77406ACLIP(FOR FUEL TUBE PROTECTOR)

main90467-16023iEL44199104-199508

77412SUPPORT, FUEL TUBE GROMMET, NO.2

main77412-10010iEL44199104-199508

77740CANISTER ASSY, CHARCOAL

main77740-16190iEL44199104-199508

main77740-16220iEL44..USA199409-199508

CALIFORNIA SPEC

77751BRACKET, CHARCOAL CANISTER BASE

main77751-16120iEL44199104-199508

main77751-16140iEL44..USA199409-199508

CALIFORNIA SPEC

77763CASE, CHARCOAL CANISTER DRAIN

main77763-10010iEL44..ATM199104-199508

main77763-10020iEL44..MTM199104-199508

9011908866

main90119-08866

9011910252

main90119-10252

9015950217

main90159-50217

9015950219

main90159-50219

9015950237

main90159-50237

9015960175

main90159-60175

9015960440

main90159-60440

9015960500

main90159-60500

9017906264

main90179-06264

9017910112

main90179-10112

9018905130

main90189-05130

9018906177

main90189-06177

9040214004

main90402-14004

9046022002

main90460-22002

9046046003

main90460-46003

9046400395

main90464-00395

9046400724

main90464-00724

9046705086

main90467-05086

9046707130

main90467-07130

9046712009

main90467-12009

9046922001

main90469-22001

9048001277

main90480-01277

9048001565

main90480-01565

9095902002

main90959-02002

9164580616

main91645-80616

91651G0616

main91651-G0616

91656A0616

main91656-A0616

9613230800

main96132-30800

9613241100

main96132-41100

9613541100

main96135-41100

66 parts on this diagram · 1 diagram in section
