Toyota PASEO — STEERING WHEEL

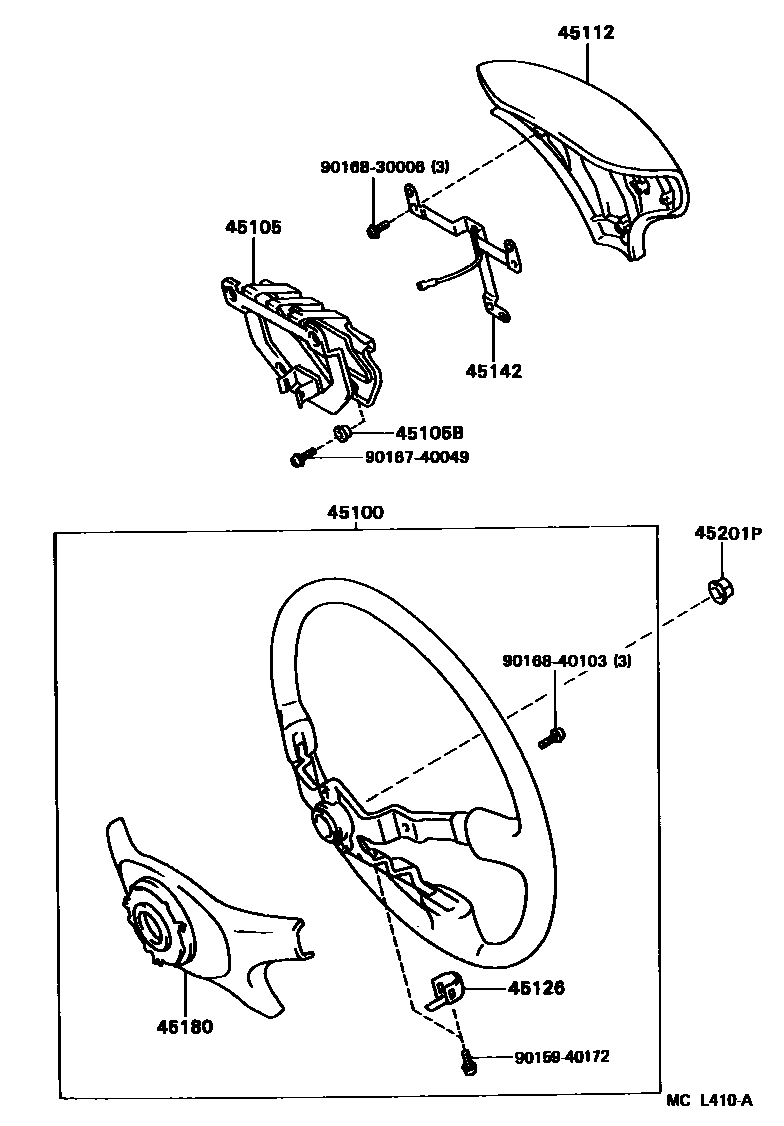

Parts diagram

45100WHEEL ASSY, STEERING

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

45105BSPACER(FOR HORN BUTTON CONTACT PLATE)

45112PAD, STEERING WHEEL

45126PLATE, STEERING WHEEL PAD SET

45142SEAT, HORN BUTTON CONTACT, NO.1

45180COVER SUB-ASSY, STEERING WHEEL

45201PNUT, STEERING WHEEL SET

9015940172

9016740049

9016830006

9016840103

12 parts on this diagram · 2 diagrams in section

STEERING WHEEL for Toyota PASEO

This section contains 20 genuine Toyota parts for the STEERING WHEEL system of the Toyota PASEO. Key components include: PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2, WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, SPACER(FOR HORN BUTTON CONTACT PLATE), PAD, STEERING WHEEL.
