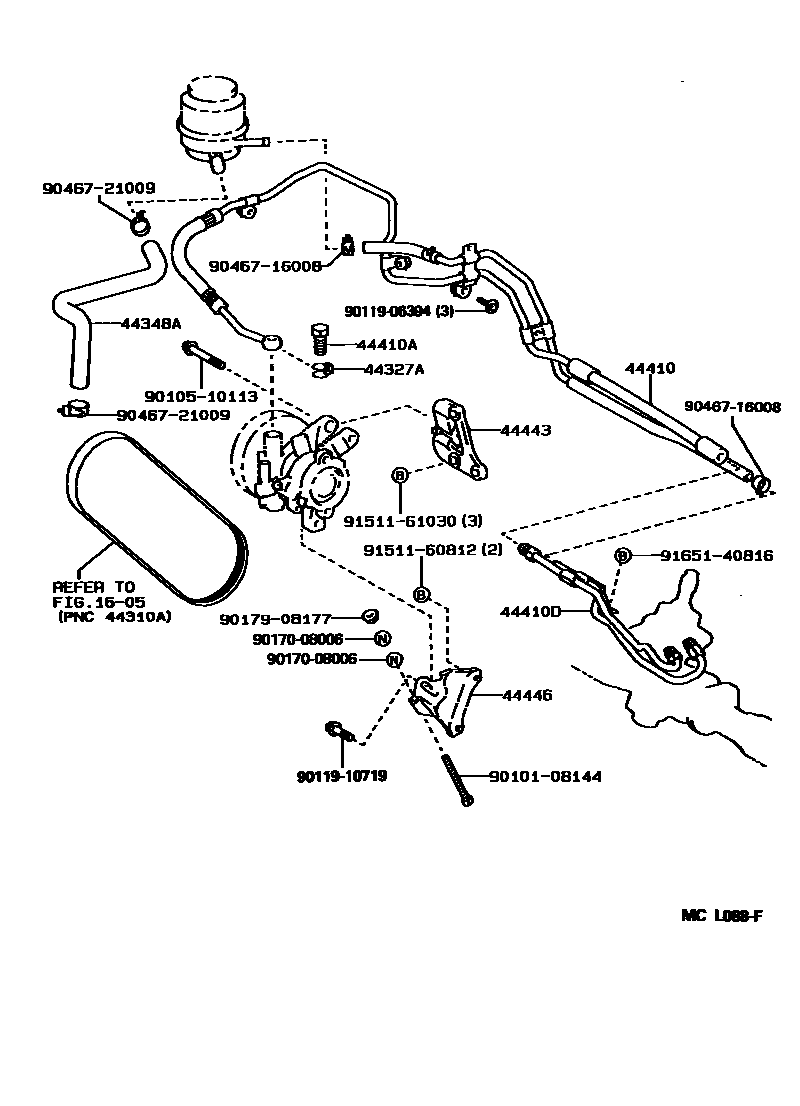

POWER STEERING TUBE

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEL44199104-199508

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-16120iEL44..MTM199104-199208

main44348-16130iEL44..ATM199104-199208

main44348-16131iEL44199208-199508

44410TUBE ASSY, PRESSURE FEED

main44410-16220iEL44..MTM199104-199405

main44410-16221iEL44..MTM199405-199508

main44410-16230iEL44..ATM199104-199405

main44410-16231iEL44..ATM199405-199508

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iEL44199208-199212

main90401-16012iEL44199212-199508

main90401-16017iEL44199104-199208

44410DTUBE ASSY, PRESSURE FEED, NO.2

main44410-10190iEL44199408-199508

main44410-16240iEL44199104-199408

44443BRACKET, PUMP

main44443-10030iEL44199104-199508

44446STRUT, ADJUSTING

main44446-16051iEL44199104-199508

9010108144

main90101-08144

9010510113

main90105-10113

9011906394

main90119-06394

9011910719

main90119-10719

9017008006

main90170-08006

9017908177

main90179-08177

9046716008

main90467-16008

9046721009

main90467-21009

9151160812

main91511-60812

9151161030

main91511-61030

9165140816

main91651-40816

19 parts on this diagram · 1 diagram in section
