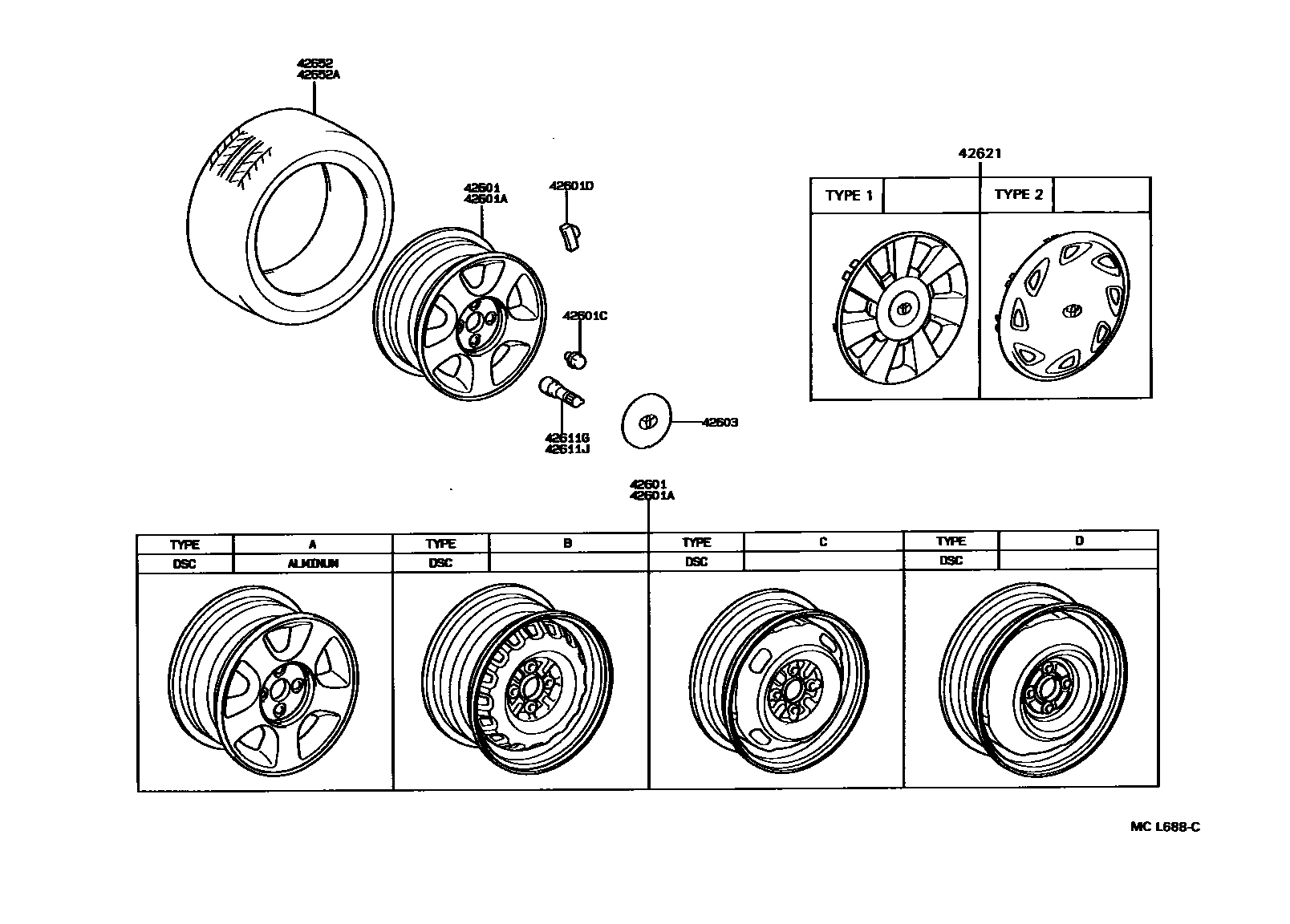

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X5.5JJ,W(ALUMINUM WHEEL),TYPE A
14X5.5J,TYPE B,BLACK
42601AWHEEL, DISC (FOR SPARE)
16X4T,W(*66),TYPE D
14X4T,TYPE C
14X5.5JJ,ALUMINUM,TYPE A
14X5.5J,BLACK
42601CNUT, HUB (FOR AXLE)
W(ALUMINUM WHEEL)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
5G,T=8.1
7.5G
10G,T=8.6
12.5G
15G,T=8.6
17.5G
20G,T=8.6
22.5G
25G,T=8.6
27.5G
30G,T=8.6
32.5G
35G,T=8.6
37.5G
40G,T=9.5
45G,T=9.5
50G,T=9.5
55G,T=9.5
60G,T=9.5
65G,T=9.5
70G,T=9.5
75G,T=9.5
80G,T=9.5
20G,T=8
30G,T=10
40G,T=9.5
50G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
10G,T=7.5
15G
25G
35G
45G
55G
65G
75G
10G,W(ALUMINUM WHEEL)
15G,W(ALUMINUM WHEEL)
20G,W(ALUMINUM WHEEL)
25G,W(ALUMINUM WHEEL)
30G,W(ALUMINUM WHEEL)
35G,W(ALUMINUM WHEEL)
40G,W(ALUMINUM WHEEL)
45G,W(ALUMINUM WHEEL)
50G,W(ALUMINUM WHEEL)
55G,W(ALUMINUM WHEEL)
60G,W(ALUMINUM WHEEL)
65G,W(ALUMINUM WHEEL)
70G,W(ALUMINUM WHEEL)
75G,W(ALUMINUM WHEEL)
80G,W(ALUMINUM WHEEL)
5G
5G,W(ALUMINUM WHEEL)
7.5G,T=7.5
12.5G,T=7.5
17.5G,T=9.5
22.5G,T=9.5
27.5G,T=9.5
32.5G,T=9.5
37.5G,T=9.5
7.5G,T=6.1,W(ALUMINUM WHEEL)
12.5G,T=7.0,W(ALUMINUM WHEEL)
17.5G,T=8.0,W(ALUMINUM WHEEL)
22.5G,T=8.0,W(ALUMINUM WHEEL)
27.5G,T=8.0,W(ALUMINUM WHEEL)
32.5G,T=8.0,W(ALUMINUM WHEEL)
37.5G,T=8.0,W(ALUMINUM WHEEL)
42603ORNAMENT SUB-ASSY, WHEEL HUB
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42621CAP, WHEEL
TYPE 2
TYPE 1
42652TIRE
175/65R14 82H
185/60R14 82H
42652ATIRE (FOR SPARE)
T115/70D14
175/65R14 82H
185/60R14 82H
T105/70D16,W(*66)
10 parts on this diagram · 1 diagram in section
