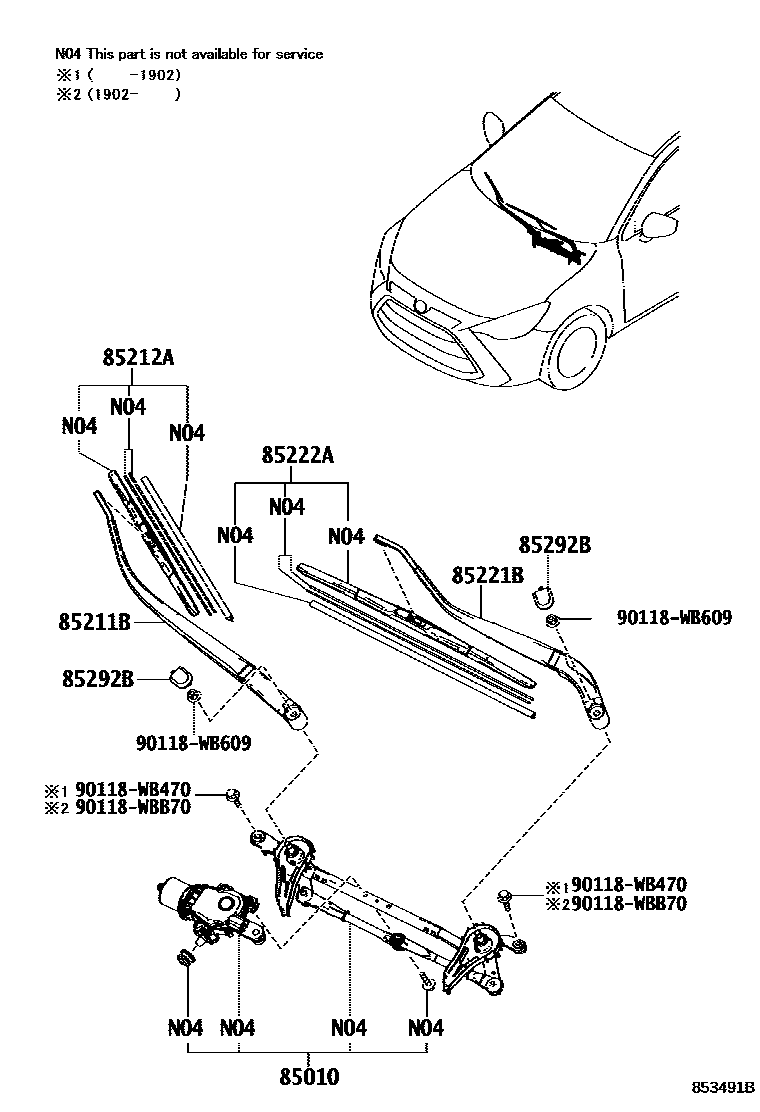

WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1

85010MOTOR & LINK ASSY, FR WIPER

main85010-WB001iDB7P,DD1B201506-201509

main85010-WB002iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201509

85211BARM, FRONT WIPER, RH

main85221-WB002iDD1C,1D,F8,F9,DM0V,0W201508-201908

85212ABLADE, FR WIPER, RH

main85212-WB002iDD1C,1D,F8,F9,DM0V,0W201508-201908

85221BARM, FRONT WIPER, LH

main85221-WB001iDD1C,1D,F8,F9,DM0V,0W201508-201908

85222ABLADE, FR WIPER, LH

main85212-WB001iDD1C,1D,F8,F9,DM0V,0W201508-201908

85292BCAP, FRONT WIPER ARM HEAD

main85292-WB001×2iDD1C,1D,F8,F9,DM0V,0W201508-201908

90118WB470

main90118-WB470

90118WB609

main90118-WB609

90118WBB70

main90118-WBB70

9 parts on this diagram · 4 diagrams in section
