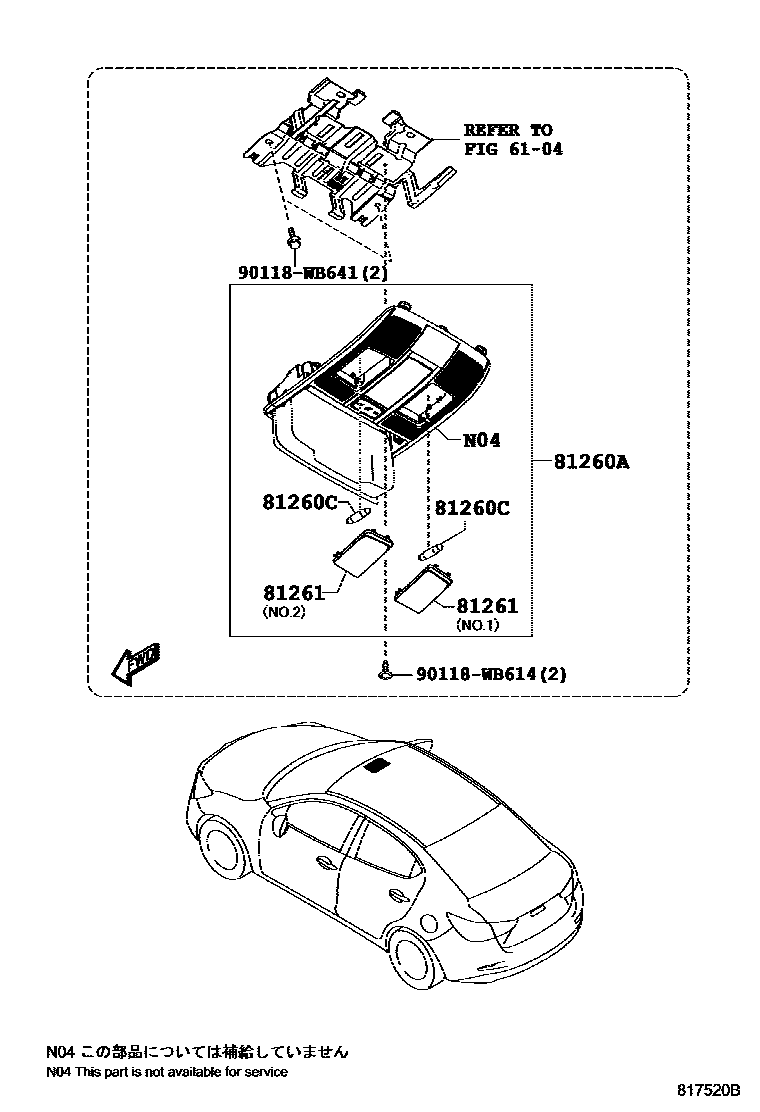

INTERIOR LAMP

0001 1 0002 1 0003 1 0005 1

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

81260ALAMP ASSY, MAP

main81260-WB001iDB7P,DD1B,DM0S,0T201506-201808

TINTED TOP,TRIM70,80

main81260-WB002iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1201909

TINTED TOP,TRIM10,20,30,40,70,80

81260CBULB(FOR MAP LAMP)

main90118-WB706×2iDB7P,DD1B,DM0S,0T201506-201808

12V 8W

81261LENS AND COVER, MAP LAMP

main81391-WB001iDB7P,DD1B,DM0S,0T201506-201808

NO.1

main81391-WB002iDB7P,DD1B,DM0S,0T201506-201808

NO.2

90118WB614

main90118-WB614

90118WB641

main90118-WB641

6 parts on this diagram · 4 diagrams in section
