REAR COMBINATION LAMP

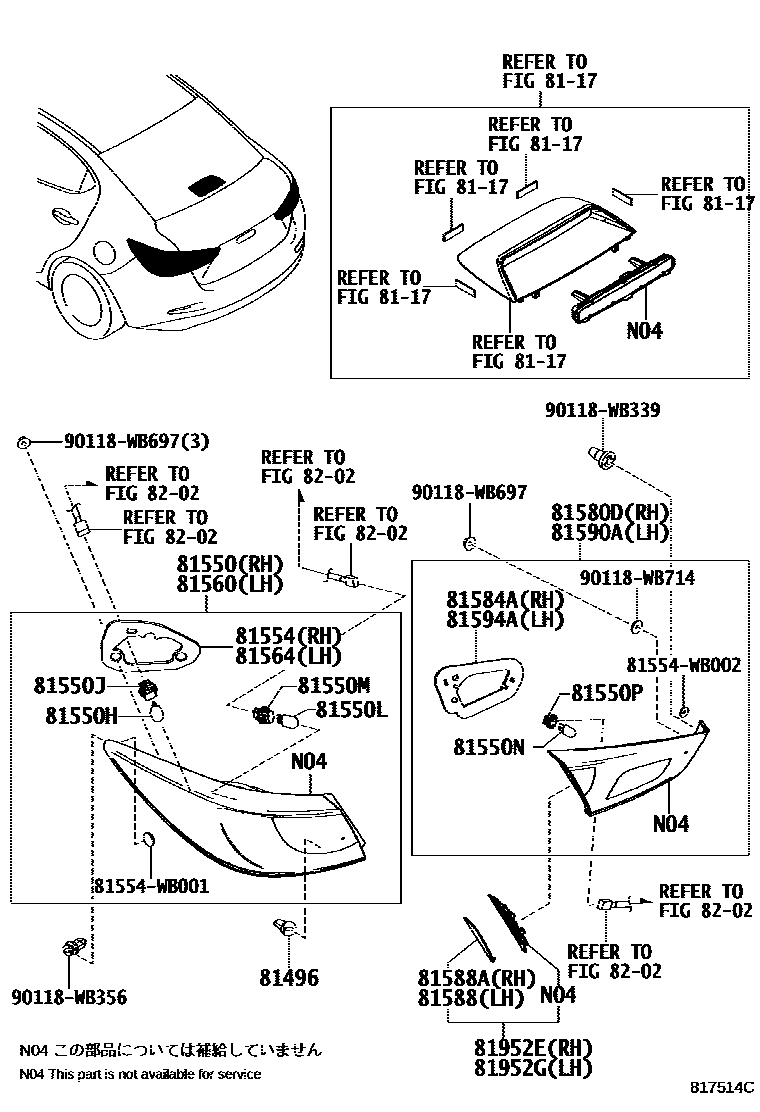

Parts diagram

8117CENTER STOP LAMP

→ Go to FIG 81-17

81496GUIDE, REAR COMBINATION LAMP

main90118-WB402×2i201506-201808

main90118-WBB82×2i201908

81550LAMP ASSY, REAR COMBINATION, RH

main81550-WB004i201506-201808

main81550-WB006i201908

81550HBULB, TAIL & STOP LAMP

main90118-WB807×2i201506-201808

12V 21/5W

81550JSOCKET, TAIL & STOP LAMP

main90118-WB737×2i201506-201808

81550LBULB, REAR TURN SIGNAL LAMP

main90118-WB805×2i201506-201808

12V 21W

81550MSOCKET, REAR TURN SIGNAL LAMP

main90118-WB015×2i201506-201808

81550NBULB, BACK UP LAMP

main90118-WB806×2i201506-201808

12V 16W

81550PSOCKET, BACK UP LAMP

main81275-WB002×2i201506-201808

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-WB001i201506-201808

81560LAMP ASSY, REAR COMBINATION, LH

main81560-WB004i201506-201808

main81560-WB006i201908

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-WB001i201506-201808

81580DLAMP ASSY, REAR, RH

main81580-WB002i201506-201808

main81580-WB003i201908

81584AGASKET, REAR LAMP RH

main81584-WB001i201506-201808

main81584-WB002i201908

81588PROTECTOR, REAR LAMP, LH

main81598-WB001i201506-201808

main81598-WB002i201908

81588APROTECTOR, REAR LAMP, RH

main81588-WB001i201506-201808

main81588-WB002i201908

81590ALAMP ASSY, REAR, LH

main81590-WB002i201506-201808

main81590-WB003i201908

81594AGASKET, REAR LAMP LH

main81594-WB001i201506-201808

main81594-WB002i201908

81952ECOVER, REAR LAMP

main81952-WB001i201506-201808

main81952-WB002i201908

81952GCOVER, REAR LAMP, LH

main81962-WB001i201506-201808

main81962-WB002i201908

8202WIRING & CLAMP

→ Go to FIG 82-02

81554WB001GASKET, REAR COMBINATION LAMP BODY, RH

main81554-WB001

81554WB002GASKET, REAR COMBINATION LAMP BODY, RH

main81554-WB002

90118WB339

main90118-WB339

90118WB356

main90118-WB356

90118WB697

main90118-WB697

90118WB714

main90118-WB714
