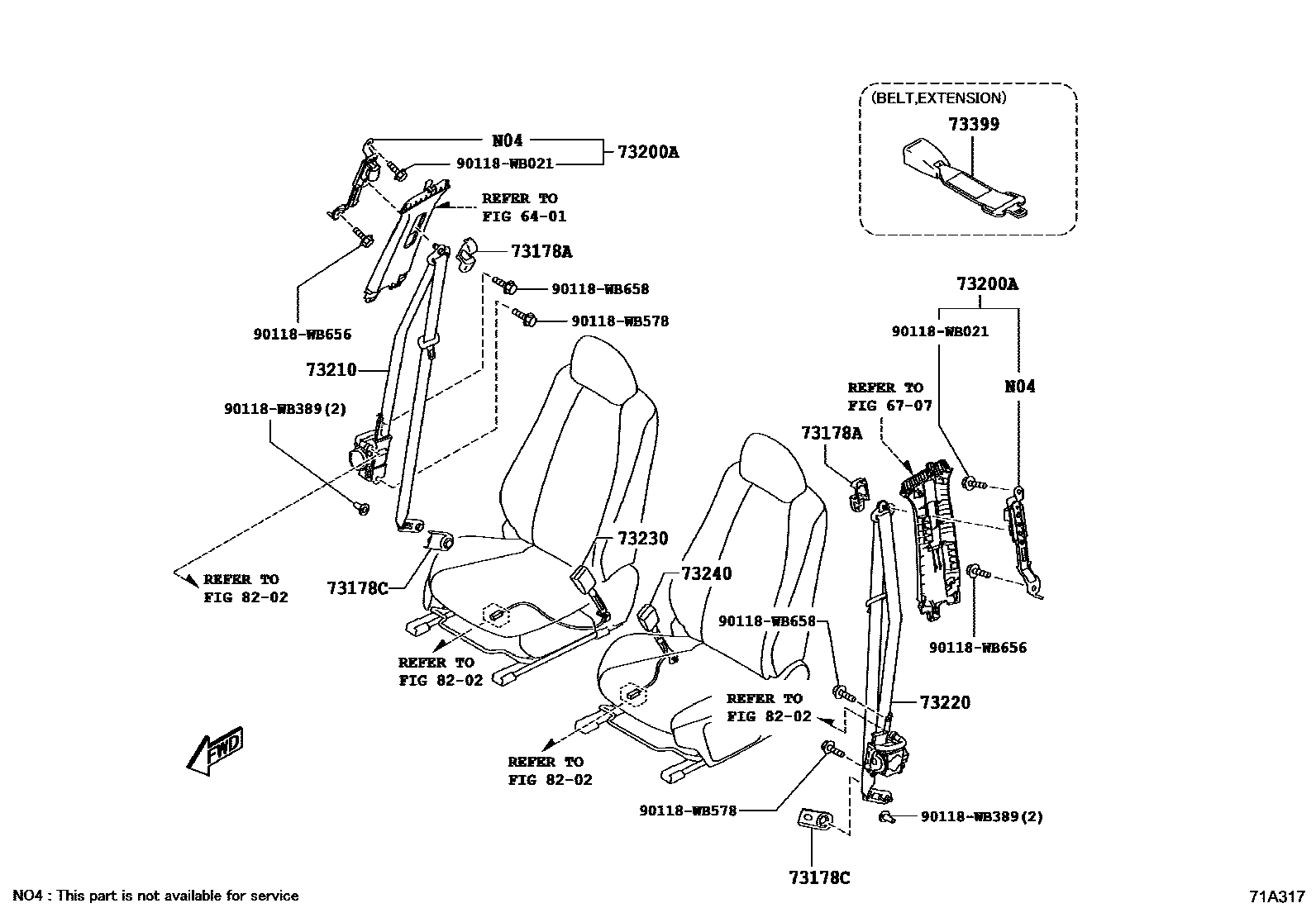

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1REAR 0005 1REAR 0006 1REAR 0007 1 0008 1 0009 1REAR 0010 1REAR 0011 1FRONT & REAR

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

73178ACAP, SEAT BELT ANCHOR COVER

main72137-WB003iDAEB1,DAEC1201908

main73178-WB001×2iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

TINTED TOP,TRIM10,20,30,40,70,80

73178CCAP, SEAT BELT ANCHOR COVER

main73178-WB003×2iDAED1,DAEE1,DD1C,1D,F8,F9,DM0V,0W201508

BLACK,TRIM10,20,30,40,70,80

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-WB001×2iDB7P,DD1B,DM0S,0T201506-201808

TINTED TOP,TRIM70,80

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-WB002iDAED1,DAEE1,DD1C,1D,F8,F9,DM0V,0W201508

main73210-WB003iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-WB002iDAED1,DAEE1,DD1C,1D,F8,F9,DM0V,0W201508

main73220-WB003iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-WB001iDAED1,DAEE1,DD1C,1D,F8,F9,DM0V,0W201508

main73240-WB002iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-WB003iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

main73230-WB004iDAED1,DAEE1,DD1C,1D,F8,F9,DM0V,0W201508

73399EXTENDER, SEAT BELT

main73399-WB001iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

9 INCH

main73399-WB002iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

12 INCH

8202WIRING & CLAMP

→ Go to FIG 82-02

90118WB021

main90118-WB021

90118WB389

main90118-WB389

90118WB578

main90118-WB578

90118WB656

main90118-WB656

90118WB658

main90118-WB658

16 parts on this diagram · 11 diagrams in section
