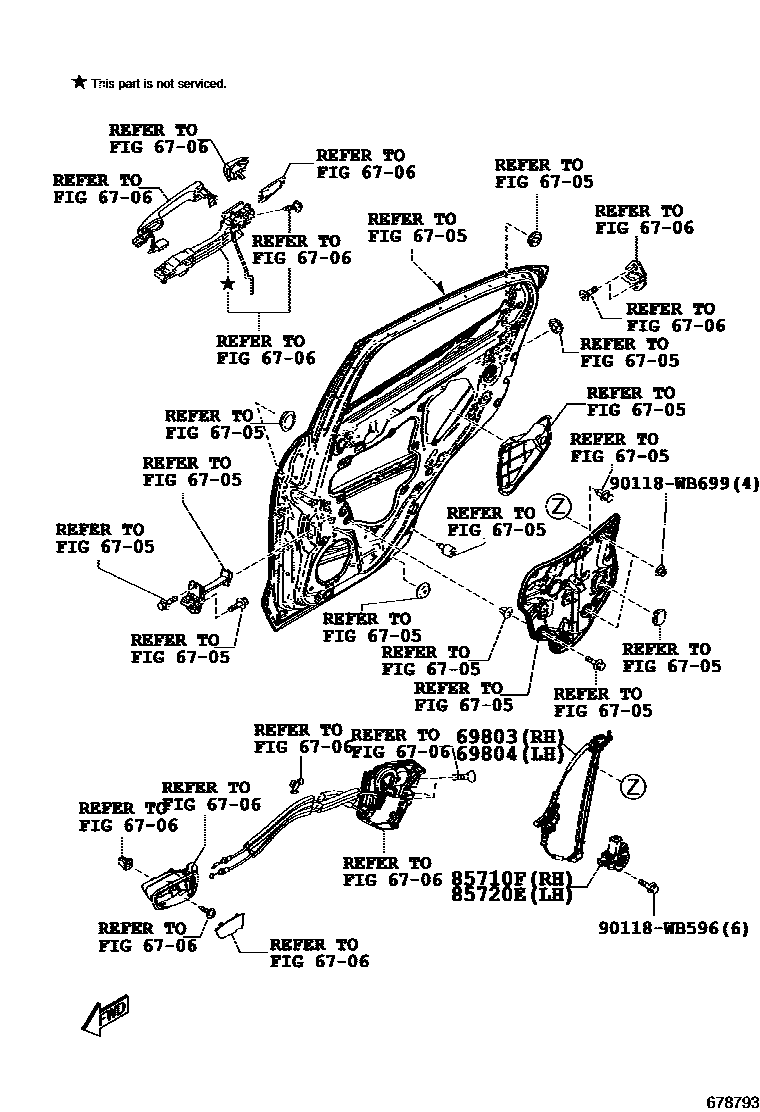

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1 0003 1

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

6706REAR DOOR LOCK & HANDLE

→ Go to FIG 67-06

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-WB001iDB7P,DD1B,F4,F5,DM0S,0T201506-201905

main69803-WB002iDD1C,1D,F8,F9,DM0V,0W201508-201905

main69803-WB003iDAED1,DAEE1,DDF8,9201905

main69803-WB004iDADW1,DAEA1,DAEB1,DAEC1,DDF4,5201905

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-WB001iDB7P,DD1B,F4,F5,DM0S,0T201506-201905

main69804-WB002iDD1C,1D,F8,F9,DM0V,0W201508-201905

main69804-WB003iDAED1,DAEE1,DDF8,9201905

main69804-WB004iDADW1,DAEA1,DAEB1,DAEC1,DDF4,5201905

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-WB001iDB7P,DD1B,DM0S,0T201506-201808

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-WB002iDB7P,DD1B,DM0S,0T201506-201808

90118WB596

main90118-WB596

90118WB699

main90118-WB699

8 parts on this diagram · 3 diagrams in section
