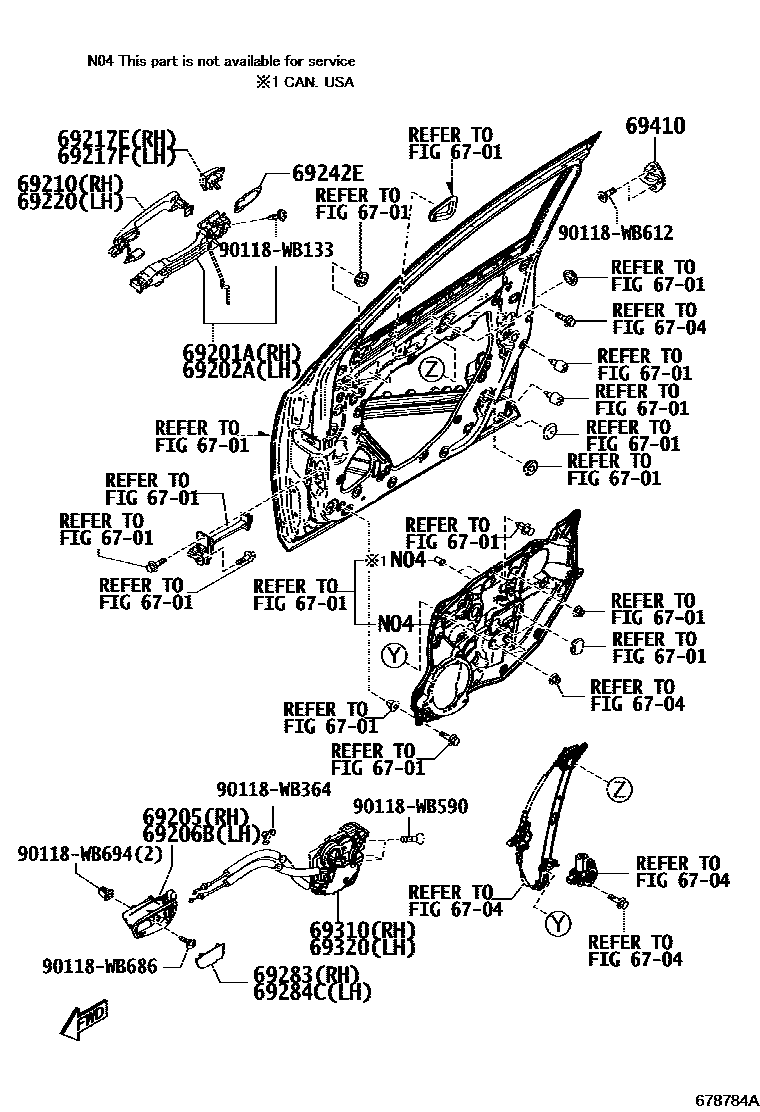

FRONT DOOR LOCK & HANDLE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6704FRONT DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-04

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-WB002iDB7P,DD1B,DM0S,0T201506-201808

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-WB002iDB7P,DD1B,DM0S,0T201506-201808

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-WB001iDB7P,DD1B..(PUE,USA)..(A,B,F)201506-201512

main69205-WB002iDB7P,DD1B..(CND,PUE)..(B,C,D,E)201506-201512

main69205-WB003iDD1B..USA;DB7P,DM0S,0T..(PUE,USA)..(A,B,D,F,G,K); DD1D,DM0W..HI201512-201808

main69205-WB004iDD1B,DM0T..B,C,E,F;DB7P,DM0S..(CND,PUE)..(B,C,D,E,H,J,L); DD1C,1D,DM0V,0W..BASE201512-201808

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-WB001iDB7P,DD1B..(PUE,USA)..(A,B,F)201506-201512

main69206-WB002iDB7P,DD1B..(CND,PUE)..(B,C,D,E)201506-201512

main69206-WB003iDAEA1,DAEC1,DAEE1,DDF5,9..HI..(MXC,PUE,USA)201808

main69206-WB004iDD1B,DM0T..B,C,E,F;DB7P,DM0S..(CND,PUE)..(B,C,D,E,H,J,L); DD1C,1D,DM0V,0W..BASE201512-201808

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-WB001iDDF5..B,D,E,F,G;DAEA1,DAED1,DDF8..A,C,D;DADW1,DAEB1,DDF4..B,C,D;DAEC1,DAEE1,DDF9..CND,MXC201808

DYNAMIC BLUE MC,44J

main69210-WB002iDB7P,DD1B,DM0S,0T201506-201808

DEEP CRYSTAL BLUE MC,42M

main69210-WB003iDB7P,DD1B,DM0S,0T201506-201808

METEOR GRAY MC,42A

main69210-WB004iDDF5..B,D,E,F,G;DADW1,DDF4..B,C,D;DAEA1,DAED1,DDF8..A,C,D;DAEC1,DAEE1,DDF9..CND,MXC201808

ARCTIC WHITE CLE,A4D

main69210-WB005iDB7P,DD1B201506-201607

ALUMINUM METALLIC,38P

main69210-WB006iDD1C,1D,DM0V,0W201508-201808

JET BLACK MC,41W

main69210-WB007iDB7P,DD1B,DM0S,0T201506-201808

ZEAL RED MC,41G

main69210-WB015iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

DYNAMIC BLUE MC,44J

main69210-WB017iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

METEOR GRAY MC,42A

main69210-WB018iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

ARCTIC WHITE CLE,A4D

main69210-WB020iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

JET BLACK MC,41W

main69210-WB021iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

ZEAL RED MC,41G

main69210-WB029iDB7P,DD1B,DM0S,0T; DD1C,1D,DM0V,0W201609-201808

SONIC SILVER M,45P

main69210-WB031iDDF5..B,D,E,F,G;DAEA1,DAED1,DDF8..A,C,D;DADW1,DAEB1,DDF4..B,C,D;DAEC1,DAEE1,DDF9..CND,MXC201808

CERAMIC M,47A

main69210-WB033iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

SONIC SILVER M,45P

main69210-WB034iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

CERAMIC M,47A

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69227-WB001iDD1C,1D,DM0V,0W201508-201808

DYNAMIC BLUE MC,44J

main69227-WB002iDD1C,1D,DM0V,0W201508-201808

DEEP CRYSTAL BLUE MC,42M

main69227-WB003iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF#201808

METEOR GRAY MC,42A

main69227-WB004iDB7P,DD1B,DM0S,0T201506-201808

ARCTIC WHITE CLE,A4D

main69227-WB005iDB7P,DD1B201506-201607

ALUMINUM METALLIC,38P

main69227-WB006iDD1C,1D,DM0V,0W201508-201808

JET BLACK MC,41W

main69227-WB007iDB7P,DD1B,DM0S,0T201506-201808

ZEAL RED MC,41G

main69227-WB022iDB7P,DD1B,DM0S,0T; DD1C,1D,DM0V,0W201609-201808

SONIC SILVER M,45P

main69227-WB025iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF#201808

CERAMIC BLUE MC,47A

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69227-WB008iDB7P,DD1B,DM0S,0T201506-201808

DYNAMIC BLUE MC,44J

main69227-WB009iDB7P,DD1B,DM0S,0T201506-201808

DEEP CRYSTAL BLUE MC,42M

main69227-WB010iDD1C,1D,DM0V,0W201508-201808

METEOR GRAY MC,42A

main69227-WB011iDB7P,DD1B,DM0S,0T201506-201808

ARCTIC WHITE CLE,A4D

main69227-WB012iDD1C,1D201508-201607

ALUMINUM METALLIC,38P

main69227-WB013iDD1C,1D,DM0V,0W201508-201808

JET BLACK MC,41W

main69227-WB014iDD1C,1D,DM0V,0W201508-201808

ZEAL RED MC,41G

main69227-WB023iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF#201808

SONIC SILVER M,45P

main69227-WB026iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF#201808

CERAMIC BLUE MC,47A

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-WB008iDD1C,1D,DM0V,0W201508-201808

DYNAMIC BLUE MC,44J

main69210-WB009iDD1C,1D,DM0V,0W201508-201808

DEEP CRYSTAL BLUE MC,42M

main69210-WB010iDB7P,DD1B,DM0S,0T201506-201808

METEOR GRAY MC,42A

main69210-WB011iDDF5..B,D,E,F,G;DAEA1,DAED1,DDF8..A,C,D;DADW1,DAEB1,DDF4..B,C,D;DAEC1,DAEE1,DDF9..CND,MXC201808

ARCTIC WHITE CLE,A4D

main69210-WB012iDD1C,1D201508-201607

ALUMINUM METALLIC,38P

main69210-WB013iDDF5..B,D,E,F,G;DAEA1,DAED1,DDF8..A,C,D;DADW1,DAEB1,DDF4..B,C,D;DAEC1,DAEE1,DDF9..CND,MXC201808

JET BLACK MC,41W

main69210-WB014iDB7P,DD1B,DM0S,0T201506-201808

ZEAL RED MC,41G

main69210-WB022iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

DYNAMIC BLUE MC,44J

main69210-WB024iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

METEOR GRAY,42A

main69210-WB025iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

ARCTIC WHITE CLE,A4D

main69210-WB027iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

JET BLACK MC,41W

main69210-WB028iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

ZEAL RED MC,41G

main69210-WB030iDB7P,DD1B,DM0S,0T; DD1C,1D,DM0V,0W201609-201808

SONIC SILVER M,45P

main69210-WB032iDDF5..B,D,E,F,G;DAEA1,DAED1,DDF8..A,C,D;DADW1,DAEB1,DDF4..B,C,D;DAEC1,DAEE1,DDF9..CND,MXC201808

CERAMIC M,47A

main69210-WB035iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

SONIC SILVER M,45P

main69210-WB036iDADW1,DAEA1,DAEC1,DDF4,5..(BASE,HI)..USA201808

CERAMIC M,47A

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

RH

main69241-WB002iDB7P,DD1B,DM0S,0T201506-201808

LH

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-WB001iDB7P,DD1B201506-201512

main69283-WB002iDB7P,DD1B,DM0S,0T201512-201808

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-WB001iDB7P,DD1B201506-201512

main69284-WB002iDB7P,DD1B,DM0S,0T201512-201808

69310LOCK ASSY, FRONT DOOR, RH

main69030-WB001iDB7P,DD1B,DM0S,0T201506-201808

69320LOCK ASSY, FRONT DOOR, LH

main69040-WB001iDB7P,DD1B,DM0S,0T201506-201808

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-WB001×2iDB7P,DD1B,DM0S,0T201506-201808

90118WB133

main90118-WB133

90118WB364

main90118-WB364

90118WB590

main90118-WB590

90118WB612

main90118-WB612

90118WB686

main90118-WB686

90118WB694

main90118-WB694

22 parts on this diagram · 1 diagram in section
