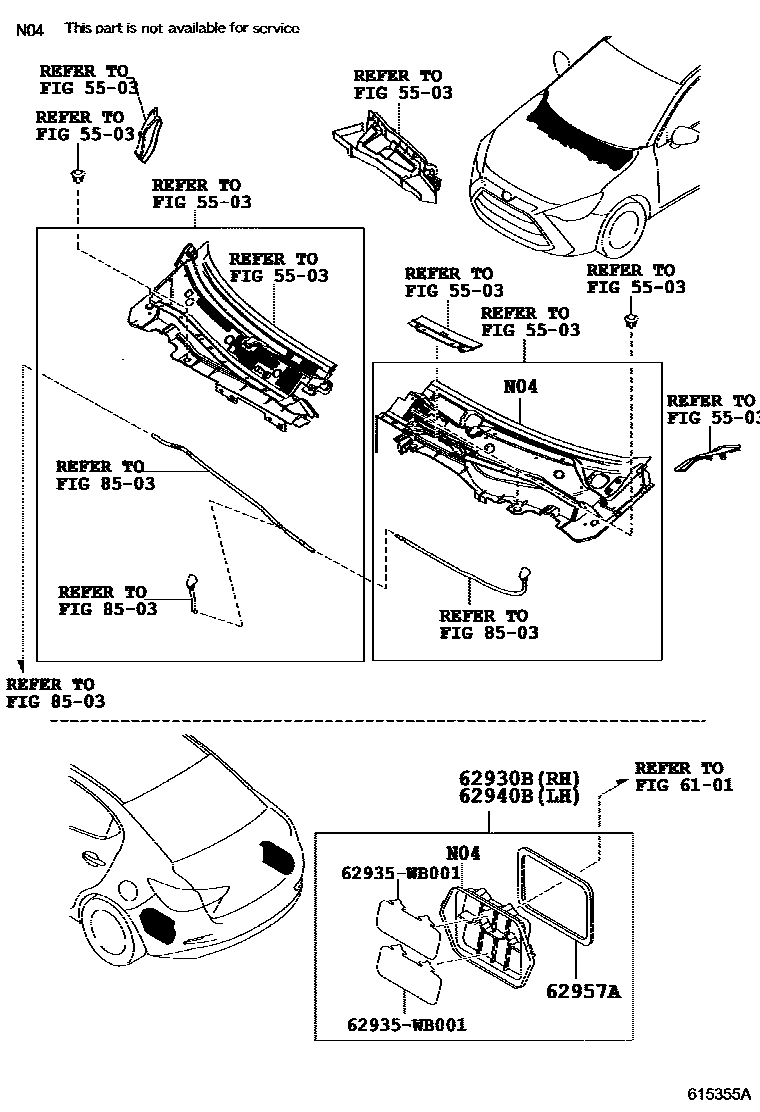

ROOF SIDE VENTILATOR

0001 1 0002 1 0003 1

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

6101SIDE MEMBER

→ Go to FIG 61-01

62930BDUCT ASSY, QUARTER VENT, RH

main62940-WB001×2iDB7P,DD1B,DM0S,0T201506-201808

main62940-WB002iDAEB1,DAEC1201908

62940BDUCT ASSY, QUARTER VENT, LH

main62940-WB001×2iDB7P,DD1B,DM0S,0T201506-201808

main62940-WB002iDAEB1,DAEC1201908

62957ASEAL, QUARTER VENT DUCT, NO.1

main62957-WB001×2iDB7P,DD1B,DM0S,0T201506-201808

main62957-WB003×2iDAEB1,DAEC1201908

8503WINDSHIELD WASHER

→ Go to FIG 85-03

62935WB001BUTTERFLY, QUARTER VENT

main62935-WB001

7 parts on this diagram · 3 diagrams in section
