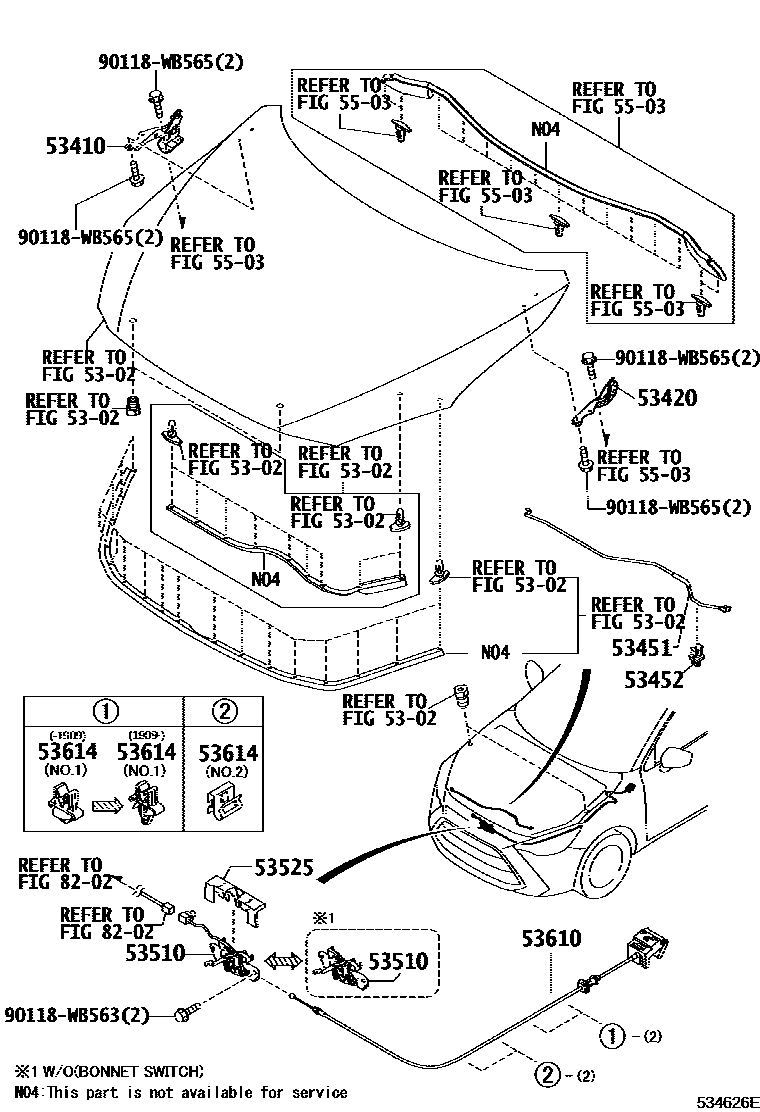

HOOD LOCK & HINGE

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53410HINGE ASSY, HOOD, RH

main53410-WB001iDB7P,DD1B,DM0S,0T201506-201808

53420HINGE ASSY, HOOD, LH

main53420-WB001iDB7P,DD1B,DM0S,0T201506-201808

53451ROD, HOOD SUPPORT

main53440-WB001iDB7P,DD1B,DM0S,0T201506-201808

53452HOLDER, HOOD STAY

main53452-WB001iDB7P,DD1B,DM0S,0T201506-201808

53510LOCK ASSY, HOOD

main53510-WB001iDB7P,DD1B,DM0S,0T..CND,USA201506-201808

main53510-WB002iDB7P,DD1B,DM0S,0T..PUE; DD1C,1D,DM0V,0W201506-201808

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-WB001iDB7P,DD1B,DM0S,0T201506-201808

53610LEVER ASSY, HOOD LOCK RELEASE

main53600-WB001iDB7P,DD1B201506-201508

main53600-WB002iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201508

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-WB001×2iDB7P,DD1B,DM0S,0T201506-201808

NO.1:REFER ILLUST.

main53614-WB002×2iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

NO.2:REFER ILLUST.

main53614-WB003×2iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1201909

NO.1:REFER ILLUST.

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

8202WIRING & CLAMP

→ Go to FIG 82-02

90118WB563

main90118-WB563

90118WB565

main90118-WB565

13 parts on this diagram · 1 diagram in section
