Toyota SCION IA/YARIS R/IA — STEERING WHEEL

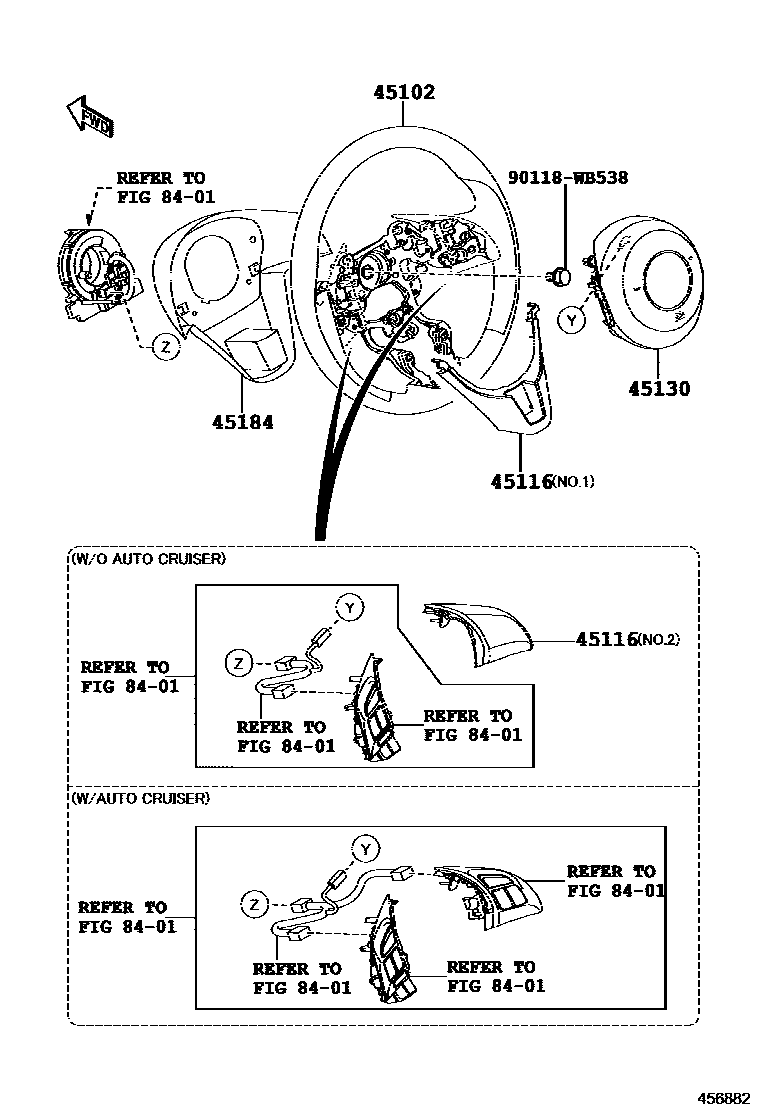

Parts diagram
45102WHEEL SUB-ASSY, STEERING
45100-WB001
45102-WB001
45102-WB002
45102-WB003
45102-WB004
45116ORNAMENT, STEERING WHEEL, NO.1
45116-WB001
45116-WB003
45116-WB004
45116-WB005
45116-WB006
45130BUTTON ASSY, HORN
45130-WB001
45130-WB002
45130-WB004
45130-WB005
45130-WB006
45184COVER, STEERING WHEEL BOSS, LOWER
45184-WB001
45184-WB002
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
90118WB538
90118-WB538

6 parts on this diagram · 3 diagrams in section

STEERING WHEEL for Toyota SCION IA/YARIS R/IA

This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota SCION IA/YARIS R/IA. Key components include: WHEEL SUB-ASSY, STEERING, ORNAMENT, STEERING WHEEL, NO.1, BUTTON ASSY, HORN, COVER, STEERING WHEEL BOSS, LOWER, CONTROL ASSY, STEERING WHEEL HEATER.
