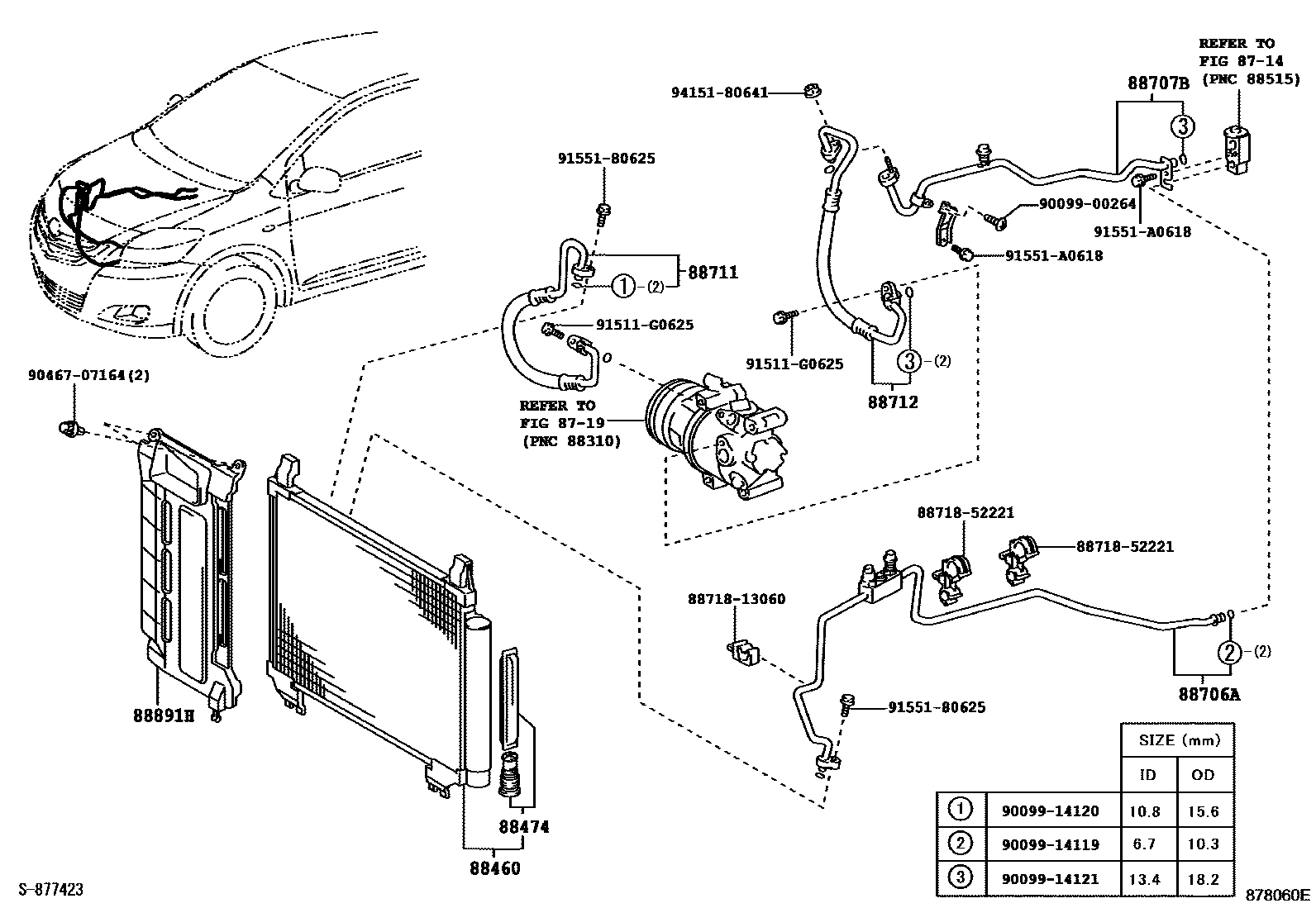

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-52130i201211

main88460-52110i200602-200708

FRONT AIR CONDITIONER-WITH(DEALER KIT)

88474DRYER, COOLER

main88474-12030i201211-201607

main88474-17010i200602-200808

FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)

88706ATUBE SUB-ASSY, LIQUID, A

main88706-52570i201211

main88706-52440i200602-200808

FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)

main88706-52450i200808-201208

FRONT AIR CONDITIONER-WITH(DEALER KIT)

88707BTUBE SUB-ASSY, SUCTION, B

main88707-52290i201211

main88707-52110i200602-200808

FRONT AIR CONDITIONER-WITH(DEALER KIT); FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52270i201211

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-52210i201211

main88712-52310i200602-200808

FRONT AIR CONDITIONER-WITH(DEALER KIT); FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)

88891HCOVER, COOLER, NO.1

main88891-52050supersedes 88891-52051i200602-200701

COLD AREA SPEC; COLD AREA SPEC&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER); FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)

main88891-52051i200702-200808

COLD AREA SPEC; COLD AREA SPEC&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER); FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)

8871813060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-13060

8871852221PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52221

9009900264

main90099-00264

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9046707164

main90467-07164

91511G0625

main91511-G0625

9155180625

main91551-80625

91551A0618

main91551-A0618

9415180641

main94151-80641

20 parts on this diagram · 4 diagrams in section
