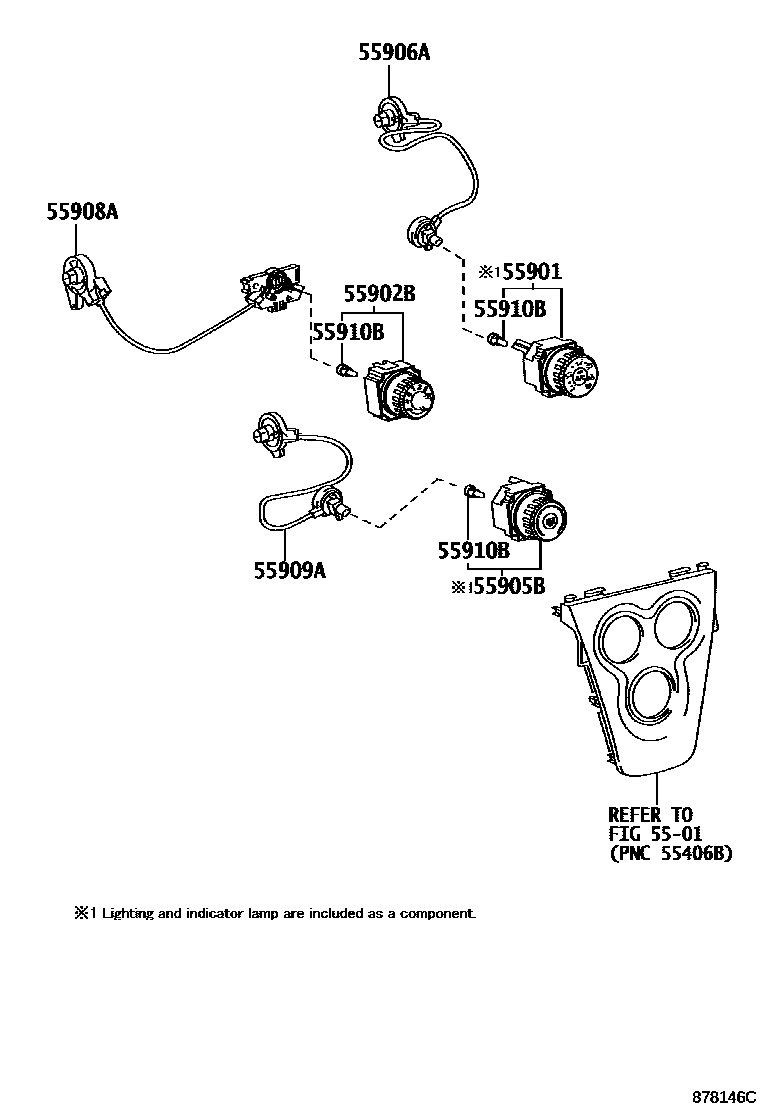

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
55901BASE SUB-ASSY, HEATER CONTROL
FRONT AIR CONDITIONER-WITH(DEALER KIT); FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
S PACKAGE(CONVENIENCE PACKAGE)&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER); S PACKAGE(POWER PACKAGE)&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
FRONT AIR CONDITIONER-WITH(DEALER KIT); FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
55902BCONTROL SUB-ASSY, HEATER
S PACKAGE(CONVENIENCE PACKAGE)&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER); S PACKAGE(POWER PACKAGE)&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
55905BKNOB, HEATER CONTROL, NO.2
REAR WINDOW DEFOGGER-WITH
COLD AREA SPEC&REAR WINDOW DEFOGGER-WITH
REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
COLD AREA SPEC&REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER); FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
S PACKAGE(CONVENIENCE PACKAGE)&REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER); S PACKAGE(POWER PACKAGE)&REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
S PACKAGE(CONVENIENCE PACKAGE)&COLD AREA SPEC&REAR WINDOW DEFOGGER-WITH&FRONT AIRCONDITIONER-WITH(MANUAL AIR CONDITIONER); S PACKAGE(POWER PACKAGE)&COLD AREA SPEC&REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
REAR WINDOW DEFOGGER-WITH
COLD AREA SPEC&REAR WINDOW DEFOGGER-WITH
REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
COLD AREA SPEC&REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55910BBULB, HEATER CONTROL
S PACKAGE(CONVENIENCE PACKAGE)&COLD AREA SPEC&REAR WINDOW DEFOGGER-WITH&FRONT AIRCONDITIONER-WITH(MANUAL AIR CONDITIONER); S PACKAGE(CONVENIENCE PACKAGE)&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER); S PACKAGE(CONVENIENCE PACKAGE)&REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER); S PACKAGE(POWER PACKAGE)&COLD AREA SPEC&REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER); S PACKAGE(POWER PACKAGE)&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER); S PACKAGE(POWER PACKAGE)&REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)
8 parts on this diagram · 3 diagrams in section
