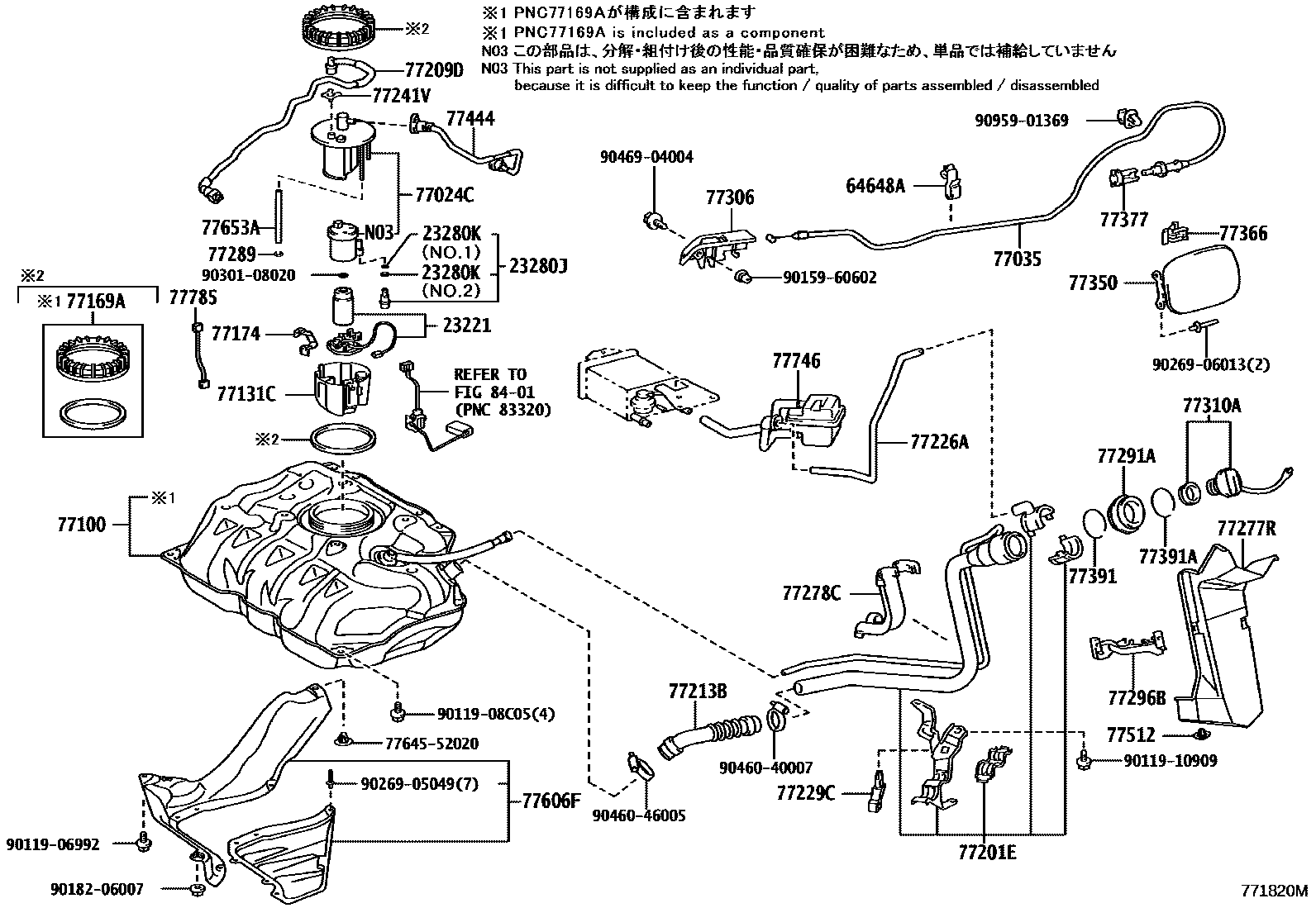

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE

23221PUMP, FUEL

main23220-21131i1NZFE..NCP93200602-200607

main23220-21132i1NZFE..NCP93200608-200808

main23220-21210i1NZFE..NCP93200808-201201

main23220-21211i1NZFE..NCP93201201

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1NZFE..NCP93200808

main23280-21020i1NZFE..NCP93200708-200808

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1NZFE..NCP93200602-200808

NO.1

main90301-15024i1NZFE..NCP93200602-200808

NO.2

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iNCP93200602-200808

main64648-32020iNCP93201110

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-52130iNCP93200602-200808

main77024-52180iNCP93200808-201604

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-52250iNCP93200602-200808

77100TANK ASSY, FUEL

main77001-52210iNCP93200602-200710

main77001-52211iNCP93200710-200808

main77001-52212iNCP93201104

77131CSUB-TANK, FUEL, NO.1

main77131-52071iNCP93200602-200607

main77131-52110iNCP93201308

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52040iNCP93200602-200808

77174SUPPORT, FUEL SUCTION, NO.1

main77174-52050iNCP93200608-200808

main77174-52070iNCP93200808

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-52230iNCP93200602-200709

main77201-52231iNCP93200710-200808

main77201-52232iNCP93201208

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-52100iNCP93200602-200801

main77209-52101iNCP93200802-200808

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-52140iNCP93200602-200808

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-52060iNCP93200602-200808

main77226-52061iNCP93201311

77229CCLAMP, BREATHER TUBE

main77229-52050iNCP93200602-200808

77241VCLIP, TUBE JOINT

main77241-33011iNCP93201005

main77241-60320iNCP93200602-200808

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52030iNCP93200602-200711

main77277-52031iNCP93200808-201110

main77277-52080iNCP93201110-201203

main77277-52100iNCP93201203

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-52030iNCP93200602-200808

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52110iNCP93200602-200607

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-52120iNCP93200602-200808

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-52020iNCP93200602-200808

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-33030iNCP93200602-200808

77310ACAP ASSY, FUEL TANK

main77300-52040iNCP93200602-200808

main77300-74010iNCP93201208

77350LID ASSY, FUEL FILLER OPENING

main77350-52150iNCP93200602-200808

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30070iNCP93200602-200808

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iNCP93200602-200808

77391RING, FUEL INLET BOX

main77391-12020iNCP93200602-200808

77391ARING, FUEL INLET BOX

main77391-60030iNCP93200602-200808

77444HOSE, FUEL TANK VENT

main77404-52050iNCP93200602-200808

77512BRACKET, FUEL TANK, REAR

main77512-35140iNCP93200602-200808

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-52070iNCP93200602-200709

main77606-52071iNCP93200710-200808

77653ACUSHION, FUEL TANK, NO.3

main77652-52040iNCP93200602-200607

77746FILTER, CHARCOAL CANISTER, NO.2

main77706-52020iNCP93200602-200808

77785HARNESS, FUEL PUMP

main77785-52060iNCP93200602-200607

main77785-52110iNCP93201201

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7764552020PACKING, FUEL TANK BRACKET UPPER, B

main77645-52020

9011906992

main90119-06992

9011908C05

main90119-08C05

9011910909

main90119-10909

9015960602

main90159-60602

9018206007

main90182-06007

9026905049

main90269-05049

9026906013

main90269-06013

9030108020

main90301-08020

9046040007

main90460-40007

9046046005

main90460-46005

9046904004

main90469-04004

9095901369

main90959-01369

48 parts on this diagram · 3 diagrams in section
