BATTERY CARRIER

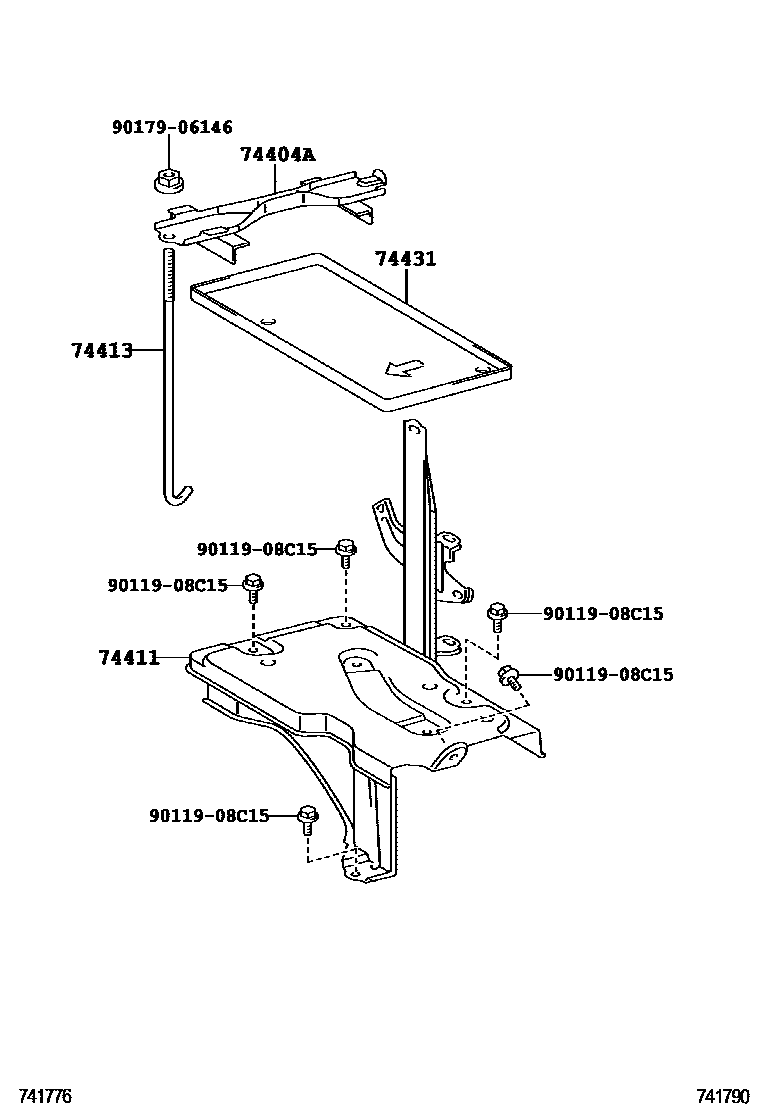

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-52080i200602-200808

74411CARRIER, BATTERY

main74410-52020i200602-200808

74413BOLT, BATTERY CLAMP

main74451-52070i200602-200808

main74451-52071i201205

74431TRAY, BATTERY

main74431-52110i200602-200808

main74431-52111i201010

9011908C15

main90119-08C15

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
