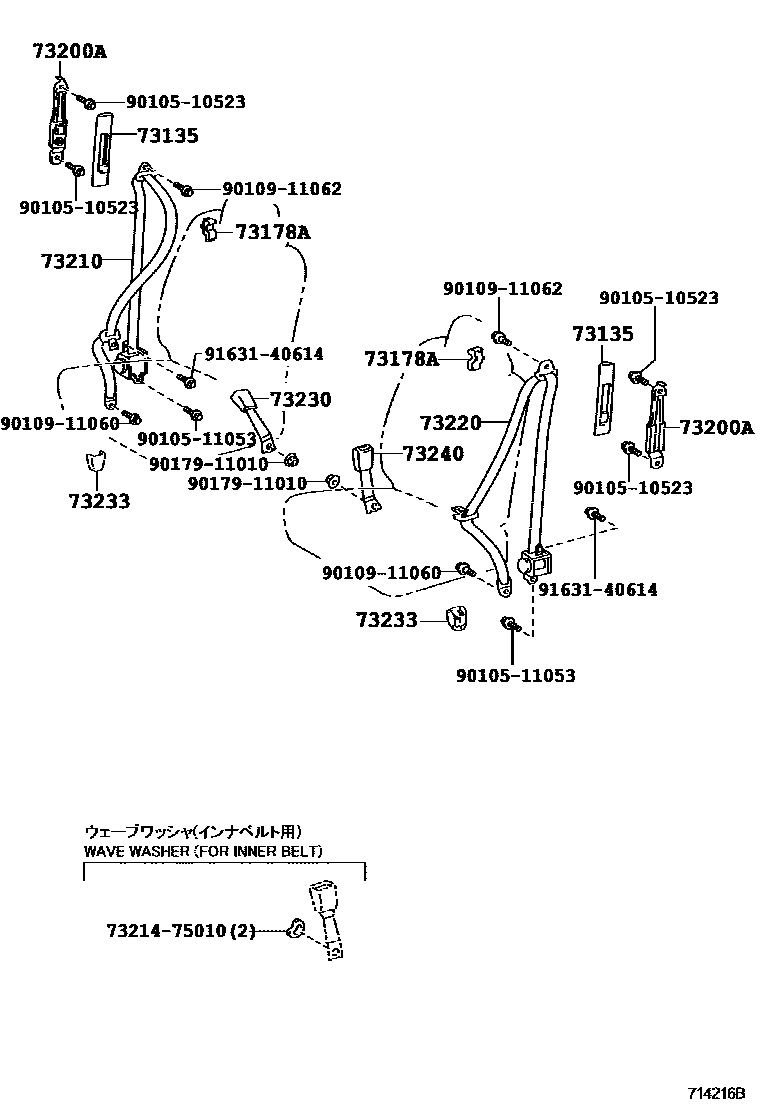

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT(FIXED) 0003 1REAR SEAT(SEPARATED)

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-52020-B0×2iNCP93200808-201607

GRAY,TRIM1#

main73135-52020-E0×2iNCP93200808-201607

GREGE,TRIM4#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-52020-B0×2iNCP93200808-201607

GRAY,TRIM1#

main73178-52020-E1×2iNCP93200808-201607

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52050-B1×2iNCP93200808-201607

GRAY,TRIM1#

main73200-52050-E0×2iNCP93200808-201607

GREGE,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52620-C0iNCP93200602-200808

BLACK,TRIM1#

main73210-52620-E0iNCP93200602-200808

GREGE,TRIM4#

main73210-52700-C0iNCP93200808-201008

BLACK,TRIM1#

main73210-52700-C1iNCP93201008-201401

BLACK,TRIM1#

main73210-52700-E0iNCP93200808-201401

GREGE,TRIM4#

main73210-52701-C1iNCP93201401-201607

BLACK,TRIM1#

main73210-52630-C0iNCP93..USA200808-201008

MEXICO SPEC&SRS AIR BAG-DRIVER,BLACK,TRIM1#

main73210-52630-C1iNCP93..USA201008-201208

MEXICO SPEC&SRS AIR BAG-DRIVER,BLACK,TRIM1#

main73210-52630-E0supersedes 73210-52701-E0iNCP93..USA200808-201208

MEXICO SPEC&SRS AIR BAG-DRIVER,GREGE,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52660-C0iNCP93200808-201008

BLACK,TRIM1#

main73220-52660-C1iNCP93201008-201401

BLACK,TRIM1#

main73220-52660-E0iNCP93200602-200808

GREGE,TRIM4#

main73220-52661-C1iNCP93201401-201607

BLACK,TRIM1#

main73220-52650-C0iNCP93..USA200808-201008

MEXICO SPEC&SRS AIR BAG-DRIVER,BLACK,TRIM1#

main73220-52650-C1iNCP93..USA201008-201208

MEXICO SPEC&SRS AIR BAG-DRIVER,BLACK,TRIM1#

main73220-52650-E0supersedes 73220-52661-E0iNCP93..USA200808-201208

MEXICO SPEC&SRS AIR BAG-DRIVER,GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52610-B0iNCP93200808-201008

DK.GRAY,TRIM1#

main73230-52610-C0iNCP93201008-201401

BLACK,TRIM1#

main73230-52610-E0iNCP93200808-201401

GREGE,TRIM4#

main73230-52611-C0iNCP93201401-201607

BLACK,TRIM1#

main73230-52590-B0iNCP93..USA200808-201008

MEXICO SPEC&SRS AIR BAG-DRIVER,DK.GRAY,TRIM1#

main73230-52590-C0iNCP93..USA201008-201208

MEXICO SPEC&SRS AIR BAG-DRIVER,BLACK,TRIM1#

main73230-52590-E0supersedes 73230-52611-E0iNCP93..USA200808-201208

MEXICO SPEC&SRS AIR BAG-DRIVER,GREGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-52010-B1×2iNCP93..CND; NCP93..USA200808-201008

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,41

main73233-52010-C0×2iNCP93..CND; NCP93..USA201008-201111

BLACK,TRIM10; BLACK,TRIM10,41

main73233-52010-E2×2iNCP93..USA200808-201502

ASH BROWN,TRIM40

main73233-60020-C0×2iNCP93201503-201607

BLACK,TRIM1#

main73233-60020-E5×2iNCP93201503-201607

ASH BROWN,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52600-B0iNCP93200602-200808

DK.GRAY,TRIM1#

main73230-52600-C0iNCP93201008-201401

BLACK,TRIM1#

main73230-52600-E0iNCP93200808-201401

GREGE,TRIM4#

main73230-52601-C0iNCP93201401-201607

BLACK,TRIM1#

main73230-52540-B0iNCP93..USA200808-201008

MEXICO SPEC&SRS AIR BAG-DRIVER,DK.GRAY,TRIM1#

main73230-52540-C0iNCP93..USA201008-201208

MEXICO SPEC&SRS AIR BAG-DRIVER,BLACK,TRIM1#

main73230-52540-E0supersedes 73230-52601-E0iNCP93..USA200808-201208

MEXICO SPEC&SRS AIR BAG-DRIVER,GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911060

main90109-11060

9010911062

main90109-11062

9017911010

main90179-11010

9163140614

main91631-40614

15 parts on this diagram · 3 diagrams in section
