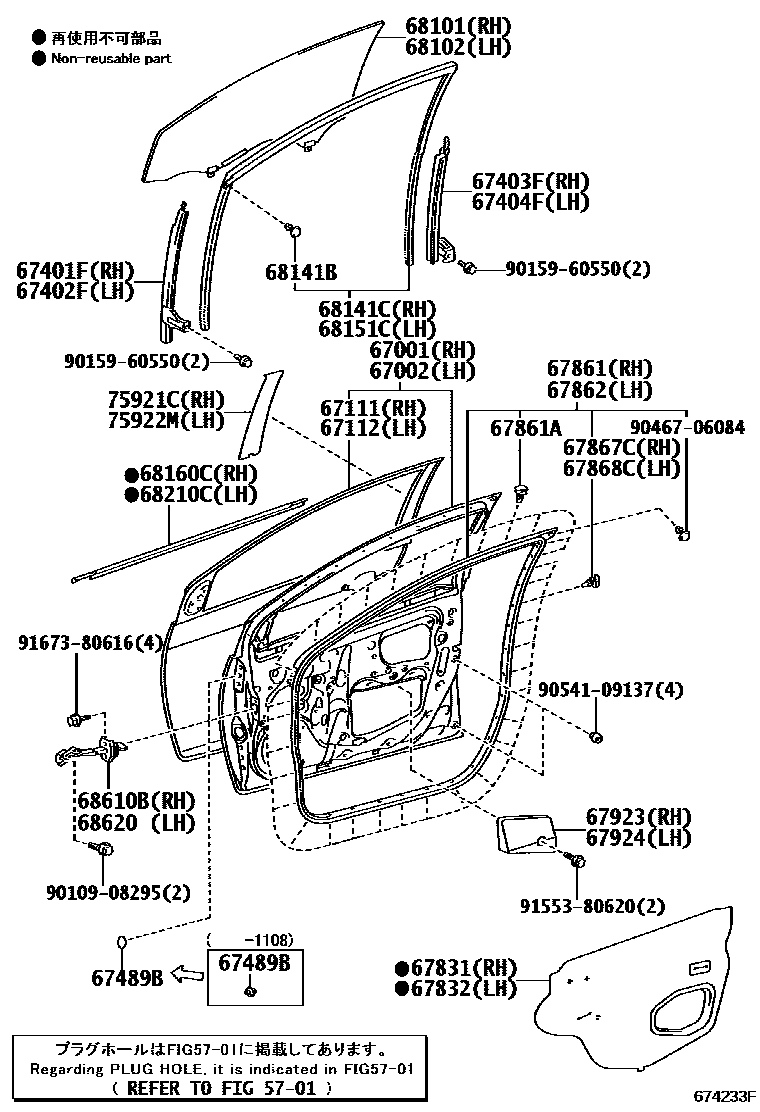

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701HOLE PLUG

→ Go to FIG 57-01

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52410iNCP93..CND200602-200808

main67001-52420iNCP93..USA200808-201607

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-52410iNCP93..CND200808-201607

main67002-52420iNCP93..USA200808-201607

67111PANEL, FRONT DOOR, OUTER RH

main67111-52180iNCP93200808-201607

67112PANEL, FRONT DOOR, OUTER LH

main67112-52170iNCP93200808-201607

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52110iNCP93200602-200808

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-52100iNCP93200602-200808

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52190iNCP93200602-200808

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-52160iNCP93200602-200808

67489BPACKING, FRONT DOOR LOWER COVER

main67489-52020×2iNCP93200602-200808

main90950-06105×2iNCP93201109

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52340iNCP93200602-200603

main67831-52341iNCP93200604-200808

main67831-52342iNCP93200809-201108

main67831-52343iNCP93201109

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-52220iNCP93200602-200603

main67832-52221iNCP93200604-200808

main67832-52222iNCP93200809-201108

main67832-52223iNCP93201109

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52200iNCP93200602-200808

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-52020×12iNCP93200808

RH

main67867-52030×12iNCP93200602-200808

LH

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-52190iNCP93200602-200808

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×22iNCP93200808

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×22iNCP93200808

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-52150iNCP93200808

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-52160iNCP93200808

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-52270iNCP93200602-200808

*UVCT,T=3.1,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-52270iNCP93200602-200808

*UVCT,T=3.1,GREEN

68141BCLIP, DOOR GLASS RUN

main90467-06084×2iNCP93200602-200808

68141CRUN, FRONT DOOR GLASS, RH

main68141-52190iNCP93200602-200808

68151CRUN, FRONT DOOR GLASS, LH

main68151-52180iNCP93200602-200808

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52150iNCP93200602-200808

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52150iNCP93200602-200808

68610BCHECK ASSY, FRONT DOOR, RH

main68610-52100iNCP93200602-200808

main68610-52101iNCP93201006

68620CHECK ASSY, FRONT DOOR, LH

main68610-52100iNCP93200602-200808

main68610-52101iNCP93201006

75921CTAPE, BLACK OUT, NO.1 RH

main75921-52090iNCP93..CND; NCP93..USA200602-200808

CONVENIENCE PACKAGE; POWER PACKAGE

75922MTAPE, BLACK OUT, NO.1 LH

main75922-52090iNCP93..CND; NCP93..USA200602-200808

CONVENIENCE PACKAGE; POWER PACKAGE

9010908295

main90109-08295

9015960550

main90159-60550

9046706084

main90467-06084

9054109137

main90541-09137

9155380620

main91553-80620

9167380616

main91673-80616

36 parts on this diagram · 2 diagrams in section
