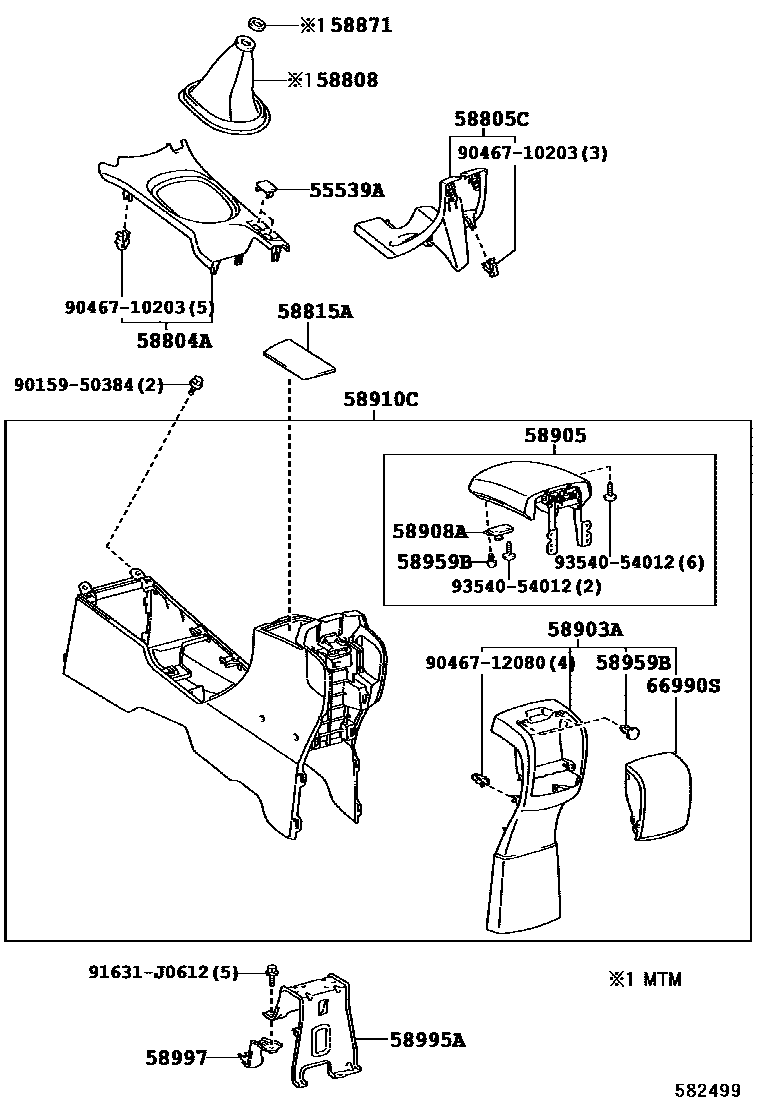

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-B0iNCP93200602-200808

DK.GRAY,TRIM1#

main55539-52060-C0iNCP93201112-201607

BLACK,TRIM1#

main55539-52060-E0iNCP93200602-200808

GREGE,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-52010-B0iNCP93..ATM200808-200904

DK.GRAY,TRIM1#

main58804-52010-E0iNCP93..ATM200602-200808

GREGE,TRIM4#

main58804-52011-B0iNCP93..ATM200905-201607

DK.GRAY,TRIM1#

main58804-52011-E0iNCP93..ATM200905-201607

GREGE,TRIM4#

main58804-52020-B0iNCP93..MTM200808-200904

DK.GRAY,TRIM1#

main58804-52020-E0iNCP93..MTM200808-200904

GREGE,TRIM4#

main58804-52021-B0iNCP93..MTM200905-201607

DK.GRAY,TRIM1#

main58804-52021-E0iNCP93..MTM200905-201607

GREGE,TRIM4#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-52020-B0iNCP93200602-200604

DK.GRAY,TRIM1#

main58805-52020-E0iNCP93200602-200604

GREGE,TRIM4#

main58805-52021-B0iNCP93200605-200808

DK.GRAY,TRIM1#

main58805-52021-E0iNCP93200808-201607

GREGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52070-B0iNCP93..MTM200602-200808

DK.GRAY,TRIM1#,4#

main58808-52070-E0iNCP93..MTM..USA200808-201607

ASH BROWN,TRIM40

58815ACARPET, CONSOLE BOX

main58815-52060iNCP93200808-201006

sub58815-52061

58871CUSHION, CONSOLE BOX

main58871-20060iNCP93..MTM200602-200808

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-52010-B0iNCP93200602-200808

DK.GRAY,TRIM1#

main58903-52010-E0iNCP93200808-201607

GREGE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-52010-B0iNCP93200808-201106

DK.GRAY,TRIM1#

main58905-52010-E0iNCP93200808-201106

GREGE,TRIM4#

main58905-52011-B0iNCP93201107-201607

DK.GRAY,TRIM1#

main58905-52011-E0iNCP93201107-201607

GREGE,TRIM4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12080iNCP93201107

main58908-32021iNCP93200808-201106

58910CBOX ASSY, CONSOLE, REAR

main58910-52050-B0iNCP93200602-200808

DK.GRAY,TRIM1#

main58910-52050-E0iNCP93200602-200808

GREGE,TRIM4#

main58910-52051-B0iNCP93201107-201607

DK.GRAY,TRIM1#

main58910-52051-E0iNCP93201107-201607

GREGE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×4iNCP93200602-200808

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-52020iNCP93200602-200808

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-52010iNCP93200602-200808

66990SCONSOLE BOX CUP HOLDER

main66990-52010-B0iNCP93200602-200808

DK.GRAY,TRIM1#

main66990-52010-E0iNCP93200602-200808

GREGE,TRIM4#

9015950384

main90159-50384

9046710203

main90467-10203

9046712080

main90467-12080

91631J0612

main91631-J0612

9354054012

main93540-54012

19 parts on this diagram · 1 diagram in section
