MAT & CARPET

58442FCOVER, JACK

main58442-52060iNCP93200602-200808

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-52C70-B0supersedes 58510-52C61-B0iNCP93..CND; NCP93..USA200602-200608

COLD AREA SPEC,DK. GREY,TRIM1#,4#; DK. GREY,TRIM1#,4#

main58510-52C71-B0supersedes 58510-52C61-B0iNCP93..CND; NCP93..USA200608-200808

COLD AREA SPEC,DK. GREY,TRIM1#,4#; DK. GREY,TRIM1#,4#

main58510-52C71-E0supersedes 58510-52C61-E0iNCP93..CND; NCP93..USA200808-201107

COLD AREA SPEC,GREGE,TRIM40; GREGE,TRIM4#

main58510-52C72-B0supersedes 58510-52C62-B0iNCP93..CND; NCP93..USA201108-201208

COLD AREA SPEC,DK. GREY,TRIM1#,41; DK. GREY,TRIM1#

main58510-52C72-E0supersedes 58510-52C62-E0iNCP93..CND; NCP93..USA201108-201208

COLD AREA SPEC,GREGE,TRIM40; GREGE,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-52040×6iNCP93200602-200808

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52160iNCP93200602-200808

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52130iNCP93200602-200808

58563QSILENCER, FRONT FLOOR, NO.3

main58563-52140iNCP93200602-200808

58564ASILENCER, FRONT FLOOR, NO.4

main58564-52140iNCP93200602-200808

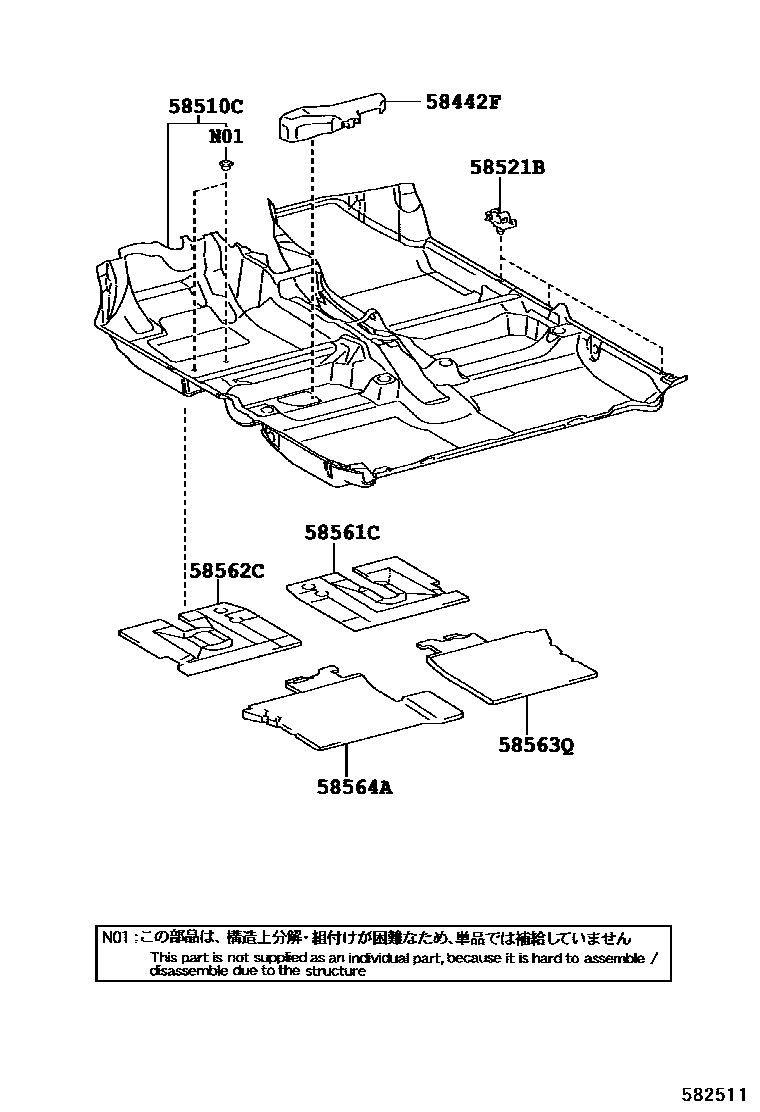

7 parts on this diagram · 1 diagram in section
