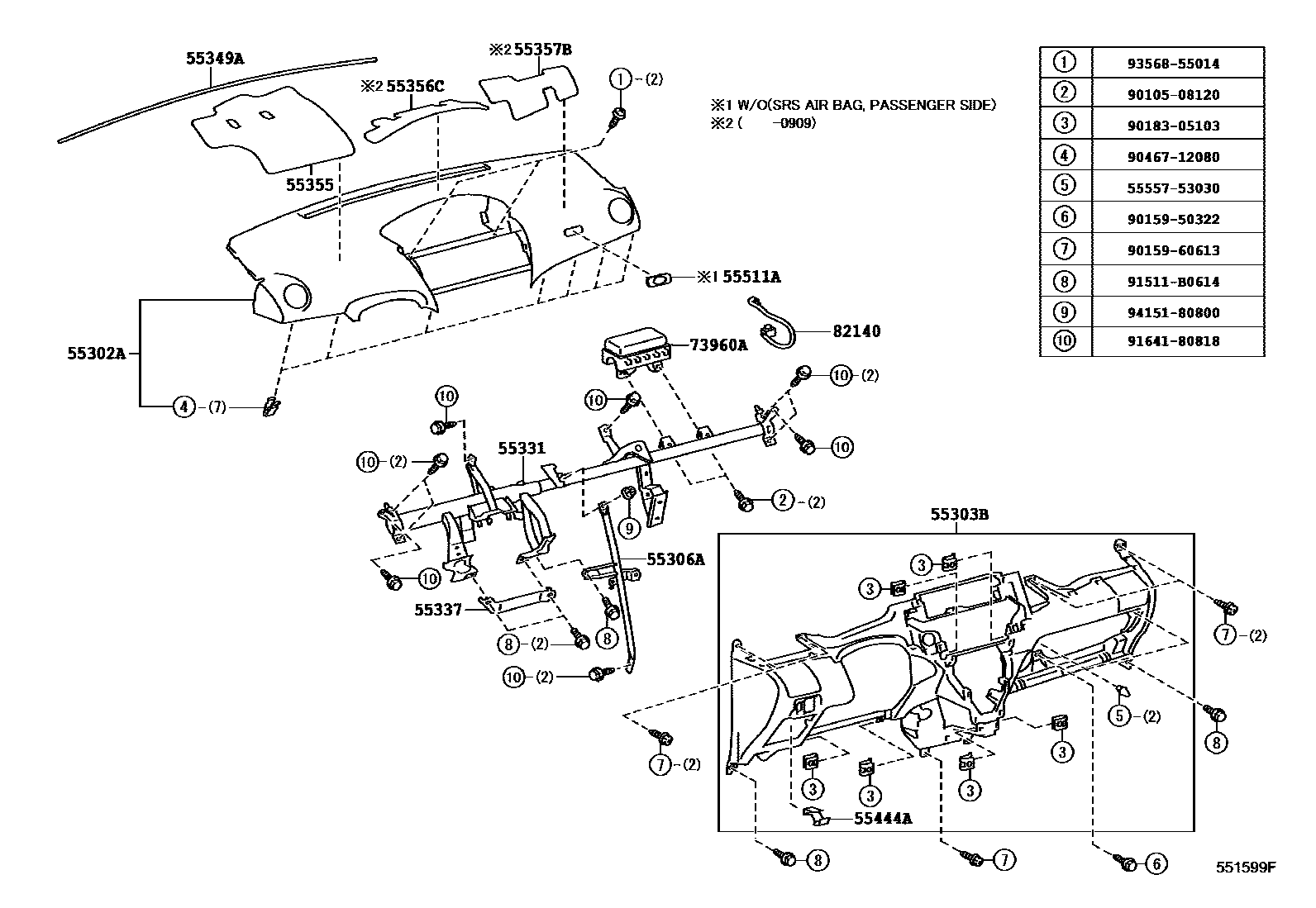

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52050-B0iNCP93200602-200607

DK.GRAY,TRIM1#,4#

main55302-52051-B0iNCP93200608-200808

DK.GRAY,TRIM1#,4#

main55302-52051-E0iNCP93..CND; NCP93..USA200808-201110

ASH BROWN,TRIM4#; ASH BROWN,TRIM40

main55302-52052-B0iNCP93..CND201111-201208

DK.GRAY,TRIM1#

main55302-52052-E0iNCP93..CND201111-201208

ASH BROWN,TRIM4#

main55302-52071-B0supersedes 55302-52052-B0iNCP93..USA200808-201110

SRS AIR BAG-DRIVER,DK.GRAY,TRIM1#,41

main55302-52071-E0supersedes 55302-52052-E0iNCP93..USA200808-201110

SRS AIR BAG-DRIVER,ASH BROWN,TRIM40

main55302-52072-B0supersedes 55302-52052-B0iNCP93..USA201111-201208

SRS AIR BAG-DRIVER,DK.GRAY,TRIM1#,41

main55302-52072-E0supersedes 55302-52052-E0iNCP93..USA201111-201208

SRS AIR BAG-DRIVER,ASH BROWN,TRIM40

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52160-B0iNCP93200808-201110

DK.GRAY,TRIM1#

main55303-52160-E0iNCP93200602-200808

GREGE,TRIM4#

main55303-52161-B0iNCP93201111-201607

DK.GRAY,TRIM1#

main55303-52161-E0iNCP93201111-201607

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52210iNCP93200602-200808

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52440iNCP93200602-200708

main55330-52441iNCP93200708-200808

55337REINFORCEMENT, INSTRUMENT PANEL SUB

main55337-52020iNCP93200602-200808

55349ACUSHION, INSTRUMENT PANEL

main55349-52060iNCP93200602-200808

main55349-52290iNCP93201504

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52140iNCP93..USA200602-200808

POWER PACKAGE

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52140iNCP93..USA200602-200808

POWER PACKAGE

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-52120iNCP93..USA200602-200808

POWER PACKAGE

55444ASPRING, INSTRUMENT PANEL BOX

main55444-52260iNCP93200602-200808

main55444-52261iNCP93201309

55511APLATE, INSTRUMENT PANEL, NAME

main55511-52050-B0iNCP93..USA200808-201208

SRS AIR BAG-DRIVER,DK.GRAY,TRIM1#,41

main55511-52050-E0iNCP93..USA200808-201208

SRS AIR BAG-DRIVER,ASH BROWN,TRIM40

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52080iNCP93; NCP93..USA200602-200808

SRS AIR BAG-DRIVER

82140WIRE ASSY, INSTRUMENT PANEL

main82140-52010iNCP93; NCP93..USA200602-200808

SRS AIR BAG-DRIVER

5555753030BRACKET, LUGGAGE DOOR OPENING VALVE

main55557-53030

9010508120

main90105-08120

9015950322

main90159-50322

9015960613

main90159-60613

9018305103

main90183-05103

9046712080

main90467-12080

91511B0614

main91511-B0614

9164180818

main91641-80818

9356855014

main93568-55014

9415180800

main94151-80800

23 parts on this diagram · 4 diagrams in section
