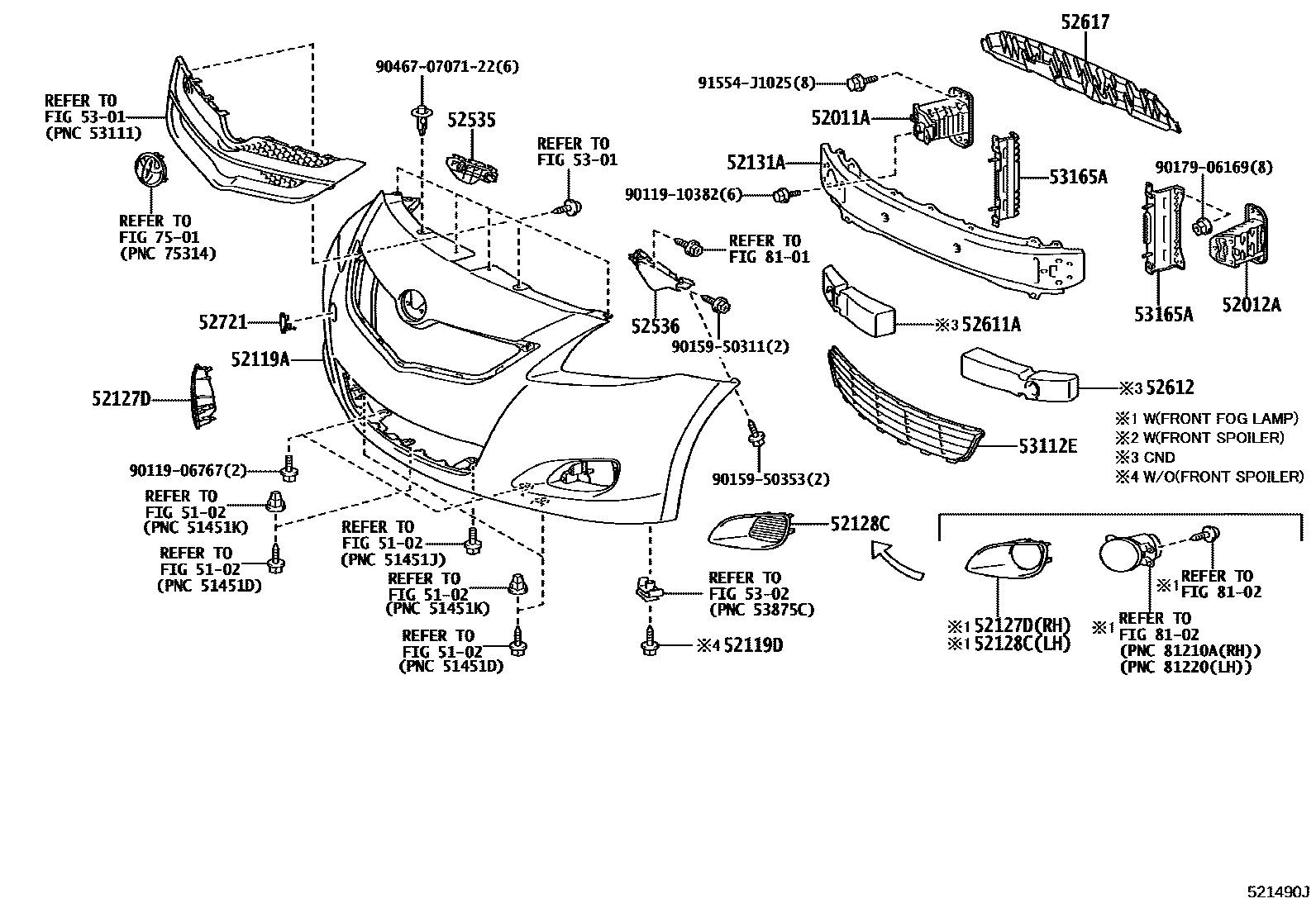

FRONT BUMPER & BUMPER STAY

0001 1 0002 1W(COLORED FRONT SPOILER)

5102

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-52020iNCP93200602-200808

main52011-52021iNCP93201208

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-52020iNCP93200808

52119ACOVER, FRONT BUMPER

main52119-52948supersedes 52119-52934iNCP93200808-201208

PAINT REQ.,FRONT SPOILER-WITH(COLORED)

52119DSCREW, NO.1

main90159-60590×2iNCP93200602-200808

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-52330supersedes 52127-52390iNCP93200808-201208

FRONT SPOILER-WITH(COLORED)

main52127-52360supersedes 52127-52390iNCP93200808-201208

FRONT SPOILER-WITH(COLORED)&FRONT FOG LAMP-WITH

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-52080supersedes 52128-52100iNCP93200808-201208

FRONT SPOILER-WITH(COLORED)

main52128-52130supersedes 52128-52100iNCP93200808-201208

FRONT SPOILER-WITH(COLORED)&FRONT FOG LAMP-WITH

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250iNCP93..CND200602-200808

main52131-52271iNCP93..USA200602-200706

main52131-52280iNCP93..USA200707-200808

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52130iNCP93200602-200808

main52535-52131iNCP93201205

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52140iNCP93200602-200808

main52536-52141iNCP93201205

52611AABSORBER, FRONT BUMPER ENERGY, RH

main52611-52130iNCP93..CND200808-201208

52612ABSORBER, FRONT BUMPER ENERGY, LH

main52612-52010iNCP93..CND200602-200808

52617ABSORBER, RADIATOR SUPPORT, UPPER

main52617-52030iNCP93200602-200808

52721MOULDING, FRONT BUMPER EXTENSION, RH

main52721-52906iNCP93200602-200808

5301

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-52240iNCP93200602-200808

NO PAINT REQ.

main53112-52360iNCP93200808

NO PAINT REQ.

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52020iNCP93200602-200808

RH

main53165-52030iNCP93200602-200808

LH

7501

8101

8102

9011906767

main90119-06767

9011910382

main90119-10382

9015950311

main90159-50311

9015950353

main90159-50353

9017906169

main90179-06169

904670707122

main90467-0707122

91554J1025

main91554-J1025

28 parts on this diagram · 2 diagrams in section
