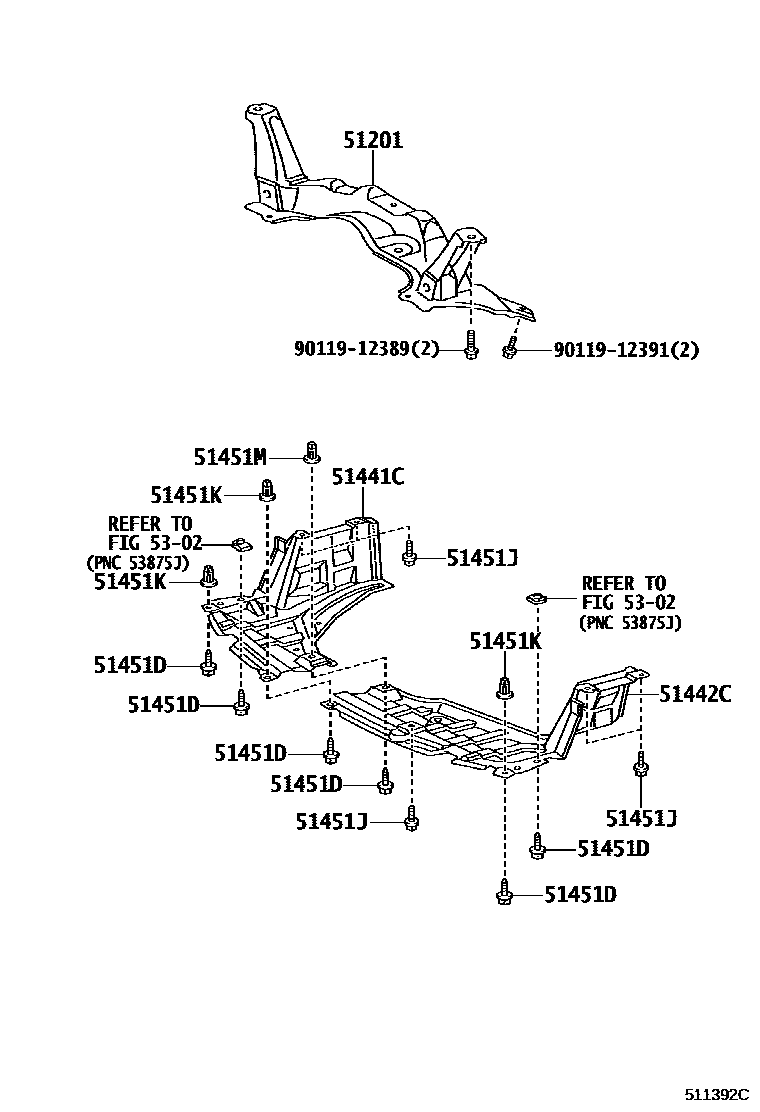

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52080iNCP93200602-200808

main51201-52083iNCP93201102-201112

main51201-52084iNCP93201201-201204

main51201-52085iNCP93201205-201206

main51201-52086iNCP93201206-201207

main51201-52087iNCP93201211

51441CCOVER, ENGINE UNDER, RH

main51441-52140iNCP93200602-200612

main51441-52141iNCP93200701-200808

main51441-52250iNCP93200808

51442CCOVER, ENGINE UNDER, LH

main51442-52080iNCP93200602-200608

main51442-52081iNCP93200609-200612

main51442-52082iNCP93200701-200808

main51442-52110iNCP93200808

51451DSCREW, NO.1

main90159-60383×6iNCP93200602-200808

51451JBOLT, NO.1

main90119-06767×5iNCP93200602-200808

51451KGROMMET, SCREW, NO.1

main90189-06076×3iNCP93200602-200808

51451MGROMMET, SCREW, NO.2

main90189-06076iNCP93200808-201604

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011912389

main90119-12389

9011912391

main90119-12391

10 parts on this diagram · 1 diagram in section
