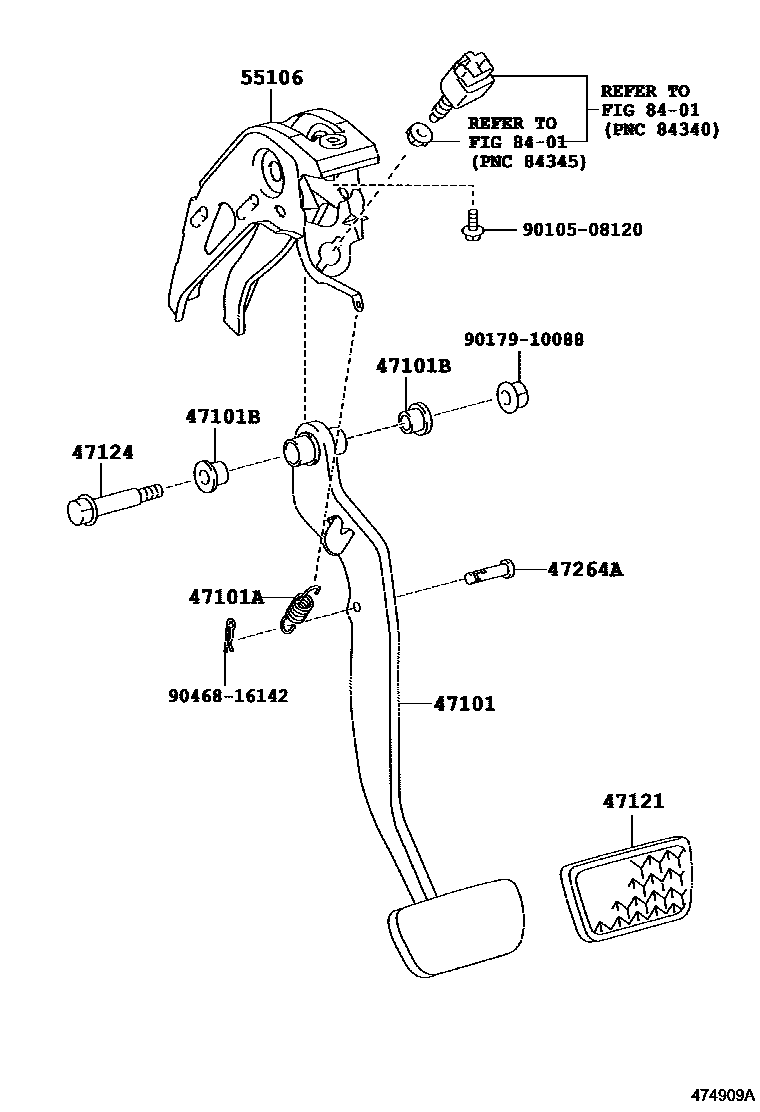

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-52250supersedes 47101-52420iNCP93..MTM..CND200908-201106

main47101-52251iNCP93..MTM201107-201408

*378

main47101-52260supersedes 47101-52430iNCP93..ATM..CND200908-201106

main47101-52261iNCP93..ATM201107-201408

*378

main47101-52270iNCP93..MTM200602-200808

main47101-52280iNCP93..ATM200602-200808

main47101-52440supersedes 47101-52420iNCP93..MTM201408-201604

WITH(MANUAL REMOTE CONTROL MIRROR)&ABS-WITHOUT,*379

main47101-52450supersedes 47101-52430iNCP93..ATM201408-201604

WITH(MANUAL REMOTE CONTROL MIRROR)&ABS-WITHOUT,*379

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP93200602-200808

main90506-14088iNCP93201205

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iNCP93200602-200808

47121PAD, BRAKE PEDAL

main31321-52010iNCP93..MTM200602-200808

main31321-52020iNCP93..MTM201502

main47121-52010iNCP93..ATM200602-200808

main47121-52020iNCP93..ATM201409

47124SHAFT, BRAKE PEDAL

main90105-10444iNCP93201104-201409

main90109-10167iNCP93200808-201104

main91552-81055iNCP93201409

47264APIN(FOR PUSH ROD)

main90249-08051iNCP93200602-200808

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52160supersedes 55106-52170iNCP93..CND200908-201104

main55106-52161iNCP93..MTM..USA201104-201409

main55106-52170iNCP93200602-200808

main55106-52171supersedes 55106-52160iNCP93..USA201104-201211

ABS-WITHOUT

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 2 diagrams in section
