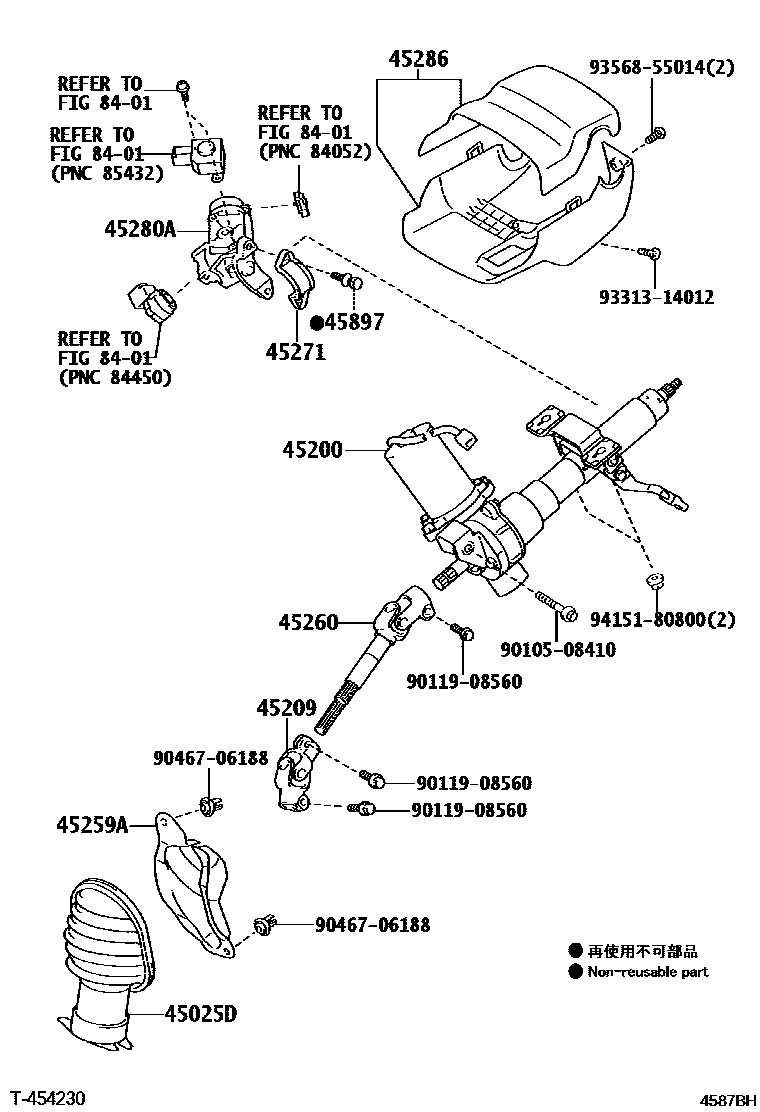

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52140iNCP93200602-200808

main45025-52170iNCP93201111

45200POST ASSY, STEERING

main45200-52300iNCP93200602-200808

main45200-52820iNCP93201108

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52040iNCP93200602-200808

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52020iNCP93200602-200808

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52230iNCP93200602-200808

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iNCP93200808

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-22510iNCP93..ATM200808-201108

main45280-22520iNCP93..ATM201108

main45280-52090iNCP93..MTM200602-200808

main45280-60640iNCP93..MTM201108

45286COVER, STEERING COLUMN

main45286-52929-B0iNCP93..CND; NCP93..USA200808-200812

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,41

main45286-52929-E1iNCP93..CND; NCP93..USA200808-200812

ASH BROWN,TRIM4#; ASH BROWN,TRIM40

main45286-52934-B0iNCP93..CND200812-201208

DK.GRAY,TRIM1#

main45286-52934-E0iNCP93..CND200812-201208

ASH BROWN,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-12020×2iNCP93200602-200808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508410

main90105-08410

9011908560

main90119-08560

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
