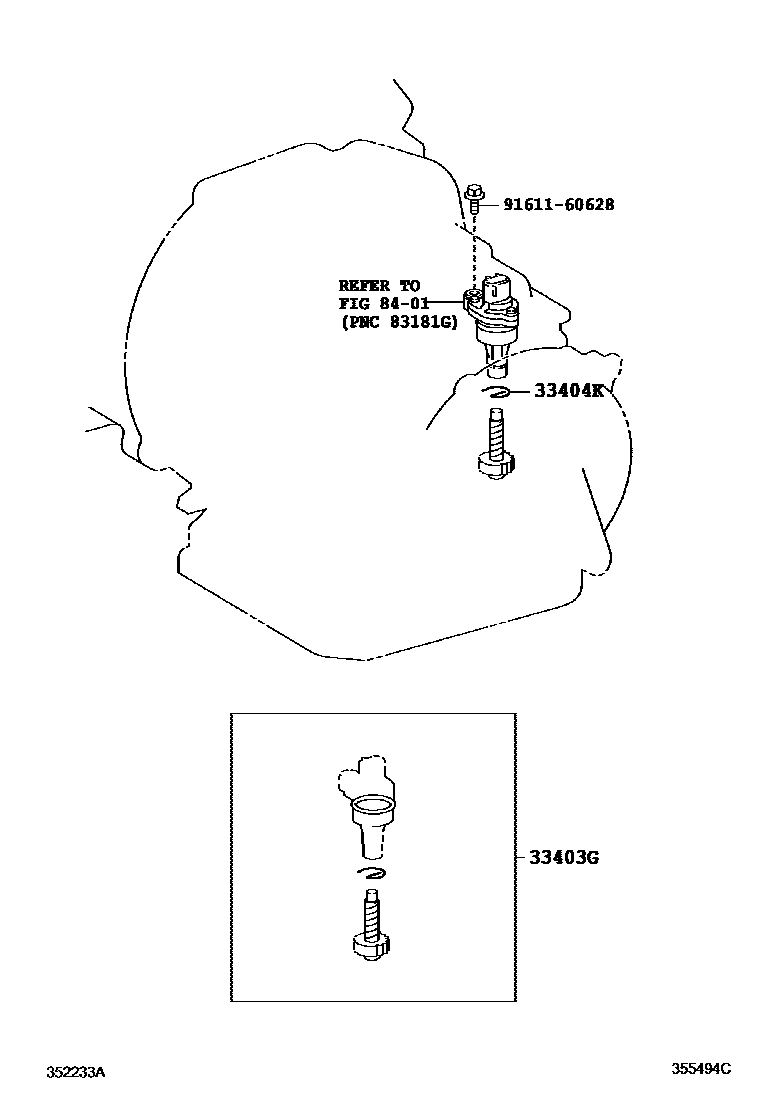

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29525i200908-201211

N=21,MARK 21:25,ABS-WITH(WITHOUT BRAKE ASSIST)&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM; N=21,MARK 21:25,ABS-WITH(WITHOUT BRAKE ASSIST)&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J BLACK; N=21,MARK 21:25,ABS-WITHOUT&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM; N=21,MARK 21:25,ABS-WITHOUT&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J BLACK

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i200602-200808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9161160628

main91611-60628

4 parts on this diagram · 1 diagram in section
