TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

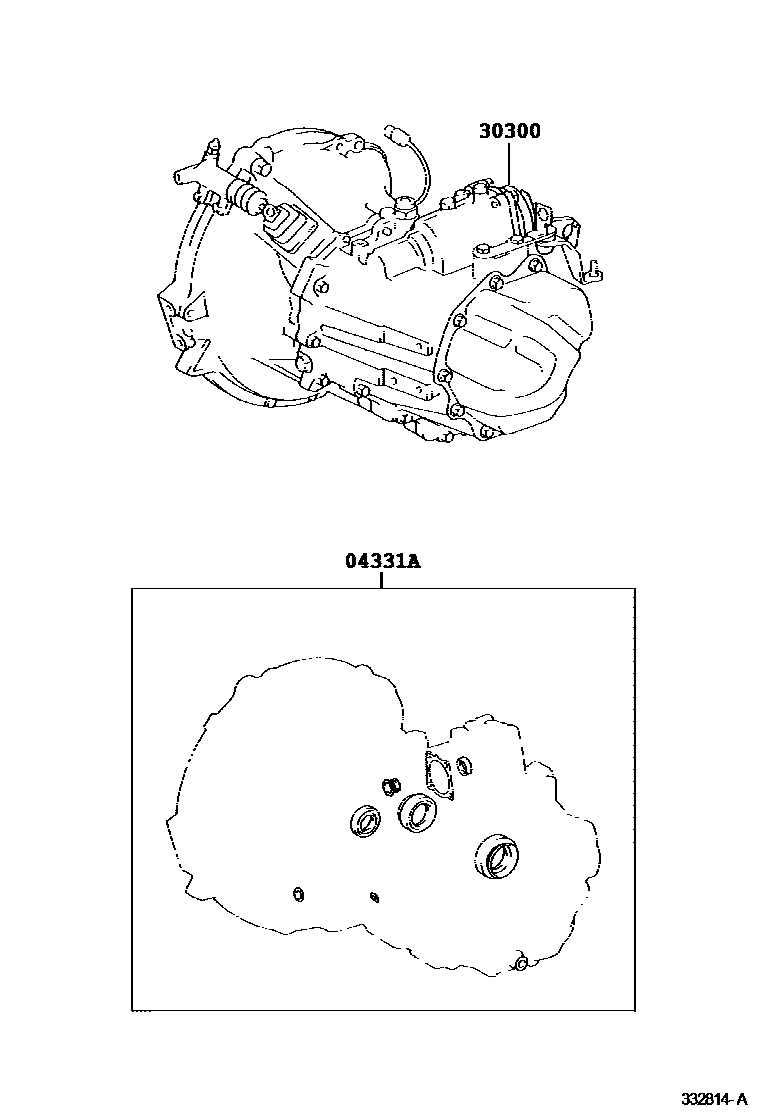

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12690i200811-201010

main04331-12691i201010-201102

main04331-12810i201102

main04331-52520i200602-200811

30300TRANSAXLE ASSY, MANUAL

main30300-52360i200602-200811

C50

main30300-52710i200811-201311

C50

main30300-52711i201311-201607

C50

2 parts on this diagram · 1 diagram in section
