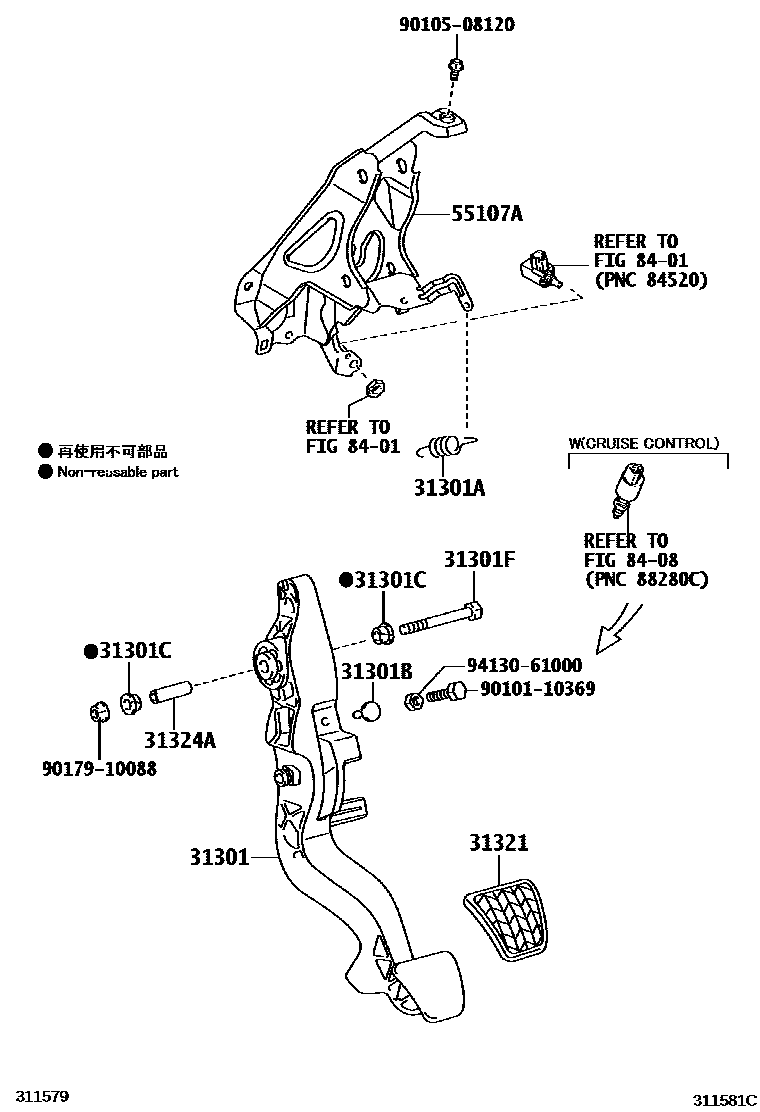

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31311-52040iNCP93..MTM200602-200808

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNCP93..MTM200602-200808

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNCP93..MTM200602-200808

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iNCP93..MTM200602-200808

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10081iNCP93..MTM200602-200808

main90105-10563iNCP93..MTM201101

31321PAD, CLUTCH PEDAL

main31321-52010iNCP93..MTM200602-200808

main31321-52020iNCP93..MTM201502

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iNCP93..MTM200602-200808

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-52120iNCP93..MTM200602-200808

main55107-52121iNCP93..MTM201101

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9010110369

main90101-10369

9010508120

main90105-08120

9017910088

main90179-10088

9413061000

main94130-61000

14 parts on this diagram · 2 diagrams in section
