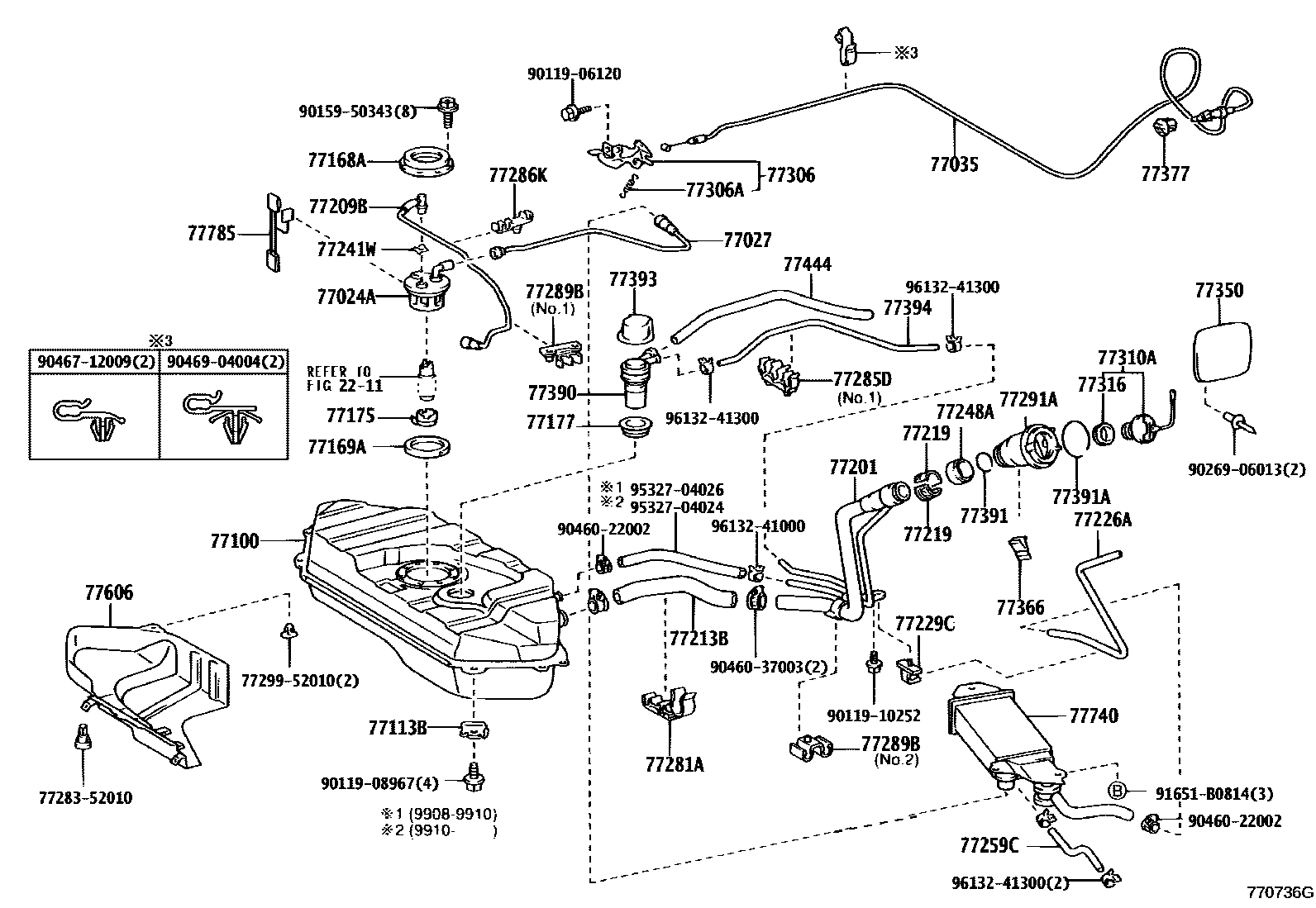

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-52030iNCP12199908-200208

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-52030iNCP12199908-200208

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-52060iNCP12199908-200208

77100TANK ASSY, FUEL

main77001-52050iNCP12199908-200208

main77001-52080iNCP12200208-200409

main77001-52180iNCP12200409

77113BPLATE, FUEL TANK SIDE

main77113-52010×4iNCP12199908-200208

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52010iNCP12199908-200208

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iNCP12199908-200208

77175SUPPORT, FUEL SUCTION, NO.2

main77175-47010iNCP12199908-200208

77177GASKET, CHECK VALVE

main77177-33010iNCP12199908-200208

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-52060iNCP12199908-200208

main77201-52140iNCP12200208-200409

main77201-52290iNCP12200409

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-52020iNCP12199908-200208

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-52040iNCP12200208

77219COVER, FUEL TANK FILLER PIPE

main77219-20090iNCP12199908-200208

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-52010iNCP12199908-200208

main77226-52020iNCP12200208

77229CCLAMP, BREATHER TUBE

main77229-52010iNCP12199908-200208

main77229-52020iNCP12200208

77241WCLIP, TUBE JOINT

main77241-33011×2iNCP12199908-200208

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-20070iNCP12199908-200208

77259CHOSE, FUEL

main95333-08020iNCP12199908-200208

77281ACLAMP, FUEL FILLER PIPE

main77281-52010iNCP12199908-200208

main77281-52020iNCP12200208

77285DCLAMP, FUEL TUBE, NO.1

main77285-52030iNCP12199908-200208

NO.1

main77285-52040iNCP12199908-200208

NO.2

77286KCLAMP, FUEL TUBE, NO.2

main77286-52020iNCP12199908-200208

77289BCLAMP, FUEL TUBE, NO.3

main77289-52010iNCP12200208

NO.1

main77289-52020iNCP12199908-200208

NO.2

main77289-52030iNCP12199908-200208

NO.3

main77289-52040iNCP12200208

NO.2

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-52040iNCP12199908-200208

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-12050iNCP12200208

main77306-13030iNCP12..CND199908-200208

W(FIXED TYPE REAR SEAT)

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iNCP12..CND200208

W(FIXED TYPE REAR SEAT)

main90506-09034×2iNCP12199908-200208

77310ACAP ASSY, FUEL TANK

main77300-20010iNCP12199908-200008

main77300-53010iNCP12200008-200208

77316GASKET, FUEL TANK CAP

main77316-16010iNCP12200208

77350LID ASSY, FUEL FILLER OPENING

main77350-52050iNCP12199908-200208

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-35010iNCP12199908-200208

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iNCP12199908-200208

77390VALVE ASSY, FUEL TANK INLET

main77390-52010iNCP12199908-200208

77391RING, FUEL INLET BOX

main77391-12020iNCP12199908-200208

77391ARING, FUEL INLET BOX

main77391-52010iNCP12199908-200208

77393PROTECTOR, CHECK VALVE

main77393-52010iNCP12199908-200208

77394HOSE, VALVE TO FUEL FILLER PIPE

main95327-08055iNCP12199908-200208

L=550

77444HOSE, FUEL TANK VENT

main77404-52010iNCP12199908-200208

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-52010iNCP12199908-200208

main77606-52040iNCP12200304

77740CANISTER ASSY, CHARCOAL

main77740-52030iNCP12199908-200208

main77740-52070iNCP12200208

77785HARNESS, FUEL PUMP

main77785-52020iNCP12199908-200208

7728352010BRACKET, FUEL TUBE

main77283-52010

7729952010CLAMP, FUEL TUBE W/GROMMET, NO.5

main77299-52010

9011906120

main90119-06120

9011908967

main90119-08967

9011910252

main90119-10252

9015950343

main90159-50343

9026906013

main90269-06013

9046022002

main90460-22002

9046037003

main90460-37003

9046712009

main90467-12009

9046904004

main90469-04004

91651B0814

main91651-B0814

9532704024

main95327-04024

9532704026

main95327-04026

9613241000

main96132-41000

9613241300

main96132-41300

56 parts on this diagram · 3 diagrams in section
