INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

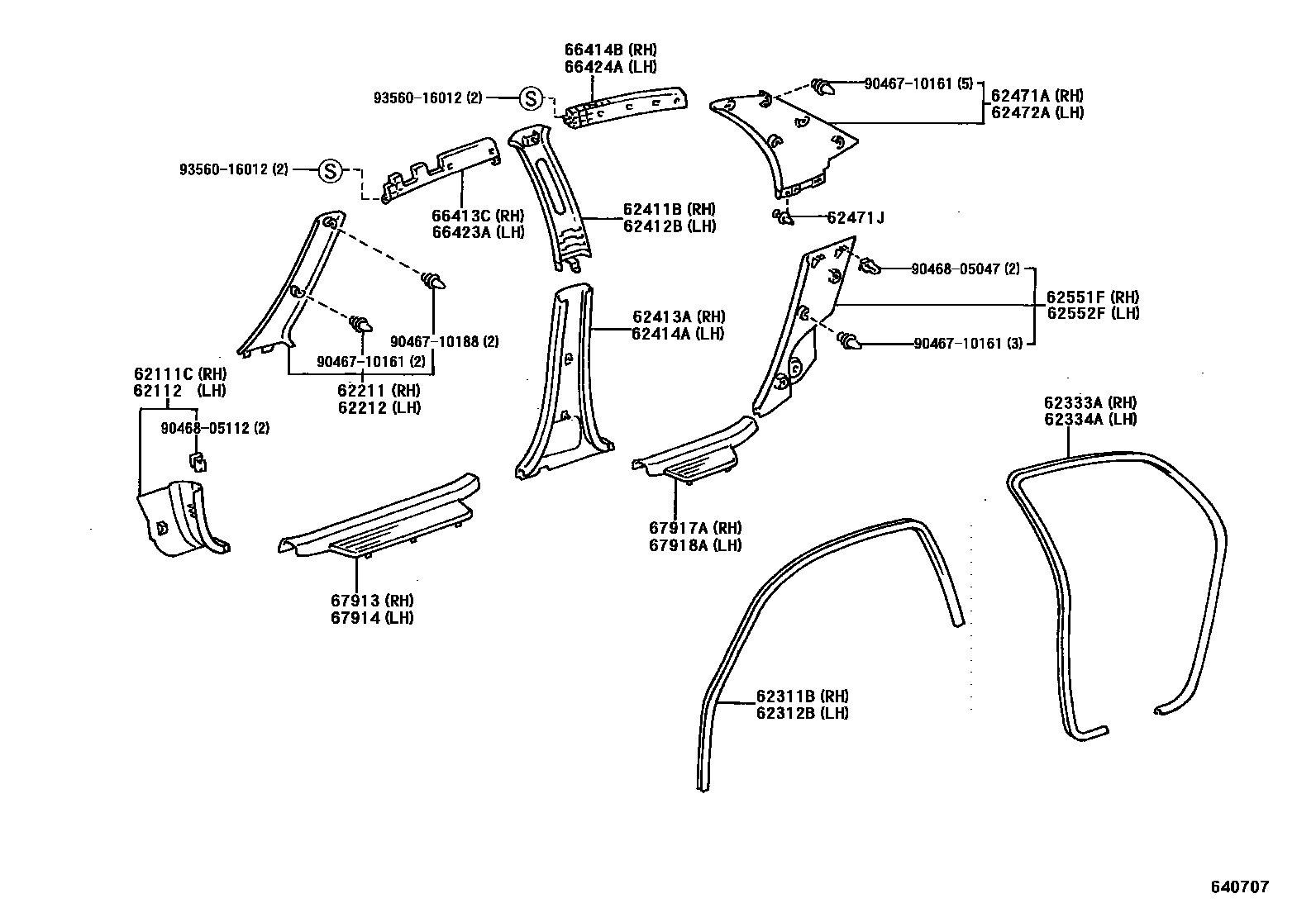

Parts diagram
62111CBOARD, COWL SIDE TRIM, RH
main62111-52020-B0i199908-200208
SHADOW GRAY,TRIM1#
main62111-52020-B1i199908-200208
AMETHYST,TRIM9#
main62111-52020-B2i200212-200602
DK.GRAY,TRIM1#
main62111-52020-E1i200208-200602
SANDAL WOOD,TRIM4#
62112BOARD, COWL SIDE TRIM, LH
main62112-52030-B0i199908-200208
SHADOW GRAY,TRIM1#
main62112-52030-B1i199908-200208
AMETHYST,TRIM9#
main62112-52030-B2i200212-200602
DK.GRAY,TRIM1#
main62112-52030-E0i200208-200602
SANDAL WOOD,TRIM4#
62211GARNISH, FRONT PILLAR, RH
main62211-52010-B0i199908-200208
LT. GRAY,TRIM1#
main62211-52010-B1i199908-200208
LT. GRAY,TRIM9#
main62211-52011-A0i200208-200602
IVORY,TRIM4#
main62211-52011-B0i200208-200602
LT. GRAY,TRIM1#
62212GARNISH, FRONT PILLAR, LH
main62212-52010-B0i199908-200208
LT. GRAY,TRIM1#
main62212-52010-B1i199908-200208
LT. GRAY,TRIM9#
main62212-52011-A0i200208-200602
IVORY,TRIM4#
main62212-52011-B0i200208-200602
LT. GRAY,TRIM1#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-52010-B0i200208-200212
SHADOW GRAY,TRIM1#
main62311-52010-B1i199908-200208
AMETHYST,TRIM9#
main62311-52010-E0i200212-200602
SANDAL WOOD,TRIM4#
main62311-52020-B0i199908-200212
SHADOW GRAY,TRIM1#
main62311-52020-B1i199908-200208
AMETHYST,TRIM9#
main62311-52020-E0i200208-200602
SANDAL WOOD,TRIM4#
main62311-52100-B0i200212-200602
DK.GRAY,TRIM1#
main62311-52110-B1i200212-200602
DK.GRAY,TRIM1#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-52010-B0i200208-200212
SHADOW GRAY,TRIM1#
main62312-52010-B1i200208-200212
AMETHYST,TRIM9#
main62312-52010-E0i200212-200602
SANDAL WOOD,TRIM4#
main62312-52020-B0i199908-200212
SHADOW GRAY,TRIM1#
main62312-52020-B1i199908-200208
AMETHYST,TRIM9#
main62312-52020-E0i200208-200212
SANDAL WOOD,TRIM4#
main62312-52080-B0i200212-200602
DK.GRAY,TRIM1#
main62312-52100-B1i200212-200602
DK.GRAY,TRIM1#
62333ATRIM, REAR DOOR OPENING, RH
main62333-52010-B0i200208-200212
SHADOW GRAY,TRIM1#
main62333-52010-B1i199908-200208
AMETHYST,TRIM9#
main62333-52010-B2i200212-200307
DK.GRAY,TRIM1#
main62333-52010-E0i200208-200307
SANDAL WOOD,TRIM4#
main62333-52011-B2i200307-200602
DK.GRAY,TRIM1#
main62333-52011-E0i200307-200602
SANDAL WOOD,TRIM4#
62334ATRIM, REAR DOOR OPENING, LH
main62334-52010-B0i199908-200208
SHADOW GRAY,TRIM1#
main62334-52010-B1i199908-200208
AMETHYST,TRIM9#
main62334-52010-B2i200212-200307
DK.GRAY,TRIM1#
main62334-52010-E0i200208-200307
SANDAL WOOD,TRIM4#
main62334-52011-B2i200307-200602
DK.GRAY,TRIM1#
main62334-52011-E0i200307-200602
SANDAL WOOD,TRIM4#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-52010-B0i199908-200208
LT. GRAY,TRIM1#
main62411-52010-B1i199908-200208
LT. GRAY,TRIM9#
main62411-52011-A0i200208-200602
IVORY,TRIM4#
main62411-52011-B0i200208-200602
LT. GRAY,TRIM1#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-52010-B0i199908-200208
LT. GRAY,TRIM1#
main62412-52010-B1i199908-200208
LT. GRAY,TRIM9#
main62412-52011-A0i200208-200602
IVORY,TRIM4#
main62412-52011-B0i200208-200602
LT. GRAY,TRIM1#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62030-52010-B0i200208-200212
SHADOW GRAY,TRIM1#
main62030-52010-B1i199908-200208
AMETHYST,TRIM9#
main62030-52010-B2i200301-200602
DK.GRAY,TRIM1#
main62030-52010-E0i200208-200602
SANDAL WOOD,TRIM4#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62040-52010-B0i200208-200212
SHADOW GRAY,TRIM1#
main62040-52010-B1i199908-200208
AMETHYST,TRIM9#
main62040-52010-B2i200212-200602
DK.GRAY,TRIM1#
main62040-52010-E0i200208-200602
SANDAL WOOD,TRIM4#
62471AGARNISH, ROOF SIDE, INNER RH
main62470-52020-A0i200208-200602
IVORY,TRIM4#
main62470-52020-B0i200208-200602
LT. GRAY,TRIM1#
main62470-52020-B1i199908-200208
LT. GRAY,TRIM9#
main62470-52040-A0i200208-200602
IVORY,TRIM4#
main62470-52040-B0i199908-200208
LT. GRAY,TRIM9#
main62470-52040-B1i199908-200208
LT. GRAY,TRIM1#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-06133-B0×2i199908-200208
SHADOW GRAY,TRIM1#,9#
main90467-06133-C0×2i200212-200602
BLACK,TRIM40
62472AGARNISH, ROOF SIDE, INNER LH
main62480-52020-A0i200208-200602
IVORY,TRIM4#
main62480-52020-B0i199908-200208
LT. GRAY,TRIM1#
main62480-52020-B1i199908-200208
LT. GRAY,TRIM9#
main62480-52040-A0i200208-200602
IVORY,TRIM4#
main62480-52040-B0i199908-200208
LT. GRAY,TRIM9#
main62480-52040-B1i200208-200602
LT. GRAY,TRIM1#
62551FGARNISH, REAR SEAT SIDE, RH
main62551-52070-B0i199908-200208
AMETHYST,TRIM9#
main62551-52070-B1i199908-200208
SHADOW GRAY,TRIM1#
main62551-52070-B2i200212-200511
DK.GRAY,TRIM1#
main62551-52070-E0i200208-200511
SANDAL WOOD,TRIM4#
62552FGARNISH, REAR SEAT SIDE, LH
main62552-52040-B0i199908-200208
AMETHYST,TRIM9#
main62552-52040-B1i199908-200208
SHADOW GRAY,TRIM1#
main62552-52040-B2i200212-200511
DK.GRAY,TRIM1#
main62552-52040-E0i200208-200511
SANDAL WOOD,TRIM4#
66413CSPACER, SIDE RAIL, FRONT RH
main66413-52010i199908-200105
main66413-52011i200105-200208
66414BSPACER, SIDE RAIL, REAR RH
main66414-52070i199908-200105
main66414-52071i200208-200602
main66414-52080i199908-200105
main66414-52081i200105-200208
66423ASPACER, SIDE RAIL, FRONT LH
main66423-52010i199908-200105
main66423-52011i200105-200208
66424ASPACER, SIDE RAIL, REAR LH
main66424-52070i199908-200105
main66424-52071i200208-200602
main66424-52080i199908-200105
main66424-52081i200208-200602
67913PLATE, FRONT DOOR SCUFF, RH
main67913-52010-B0i199908-200208
SHADOW GRAY,TRIM1#
main67913-52010-B1i199908-200208
AMETHYST,TRIM9#
main67913-52010-B2i200212-200602
DK.GRAY,TRIM1#
main67913-52010-E0i200208-200602
SANDAL WOOD,TRIM4#
main67913-52020-B0i199908-200208
SHADOW GRAY,TRIM1#
main67913-52020-B1i199908-200208
AMETHYST,TRIM9#
main67913-52020-B2i200212-200602
DK.GRAY,TRIM1#
main67913-52020-E1i200208-200602
SANDAL WOOD,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-52010-B0i200208-200212
SHADOW GRAY,TRIM1#
main67914-52010-B1i199908-200208
AMETHYST,TRIM9#
main67914-52010-B2i200212-200602
DK.GRAY,TRIM1#
main67914-52010-E0i200208-200602
SANDAL WOOD,TRIM4#
main67914-52020-B0i200208-200212
SHADOW GRAY,TRIM1#
main67914-52020-B1i199908-200208
AMETHYST,TRIM9#
main67914-52020-B2i200212-200602
DK.GRAY,TRIM1#
main67914-52020-E1i200208-200602
SANDAL WOOD,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
main67917-52010-B0i199908-200208
SHADOW GRAY,TRIM1#
main67917-52010-B1i199908-200208
AMETHYST,TRIM9#
main67917-52010-B2i200212-200602
DK.GRAY,TRIM1#
main67917-52010-E1i200208-200602
SANDAL WOOD,TRIM4#
67918APLATE, REAR DOOR SCUFF, LH
main67918-52010-B0i199908-200208
SHADOW GRAY,TRIM1#
main67918-52010-B1i199908-200208
AMETHYST,TRIM9#
main67918-52010-B2i200212-200602
DK.GRAY,TRIM1#
main67918-52010-E1i200208-200602
SANDAL WOOD,TRIM4#
9046710161
main90467-10161
9046710188
main90467-10188
9046805047
main90468-05047
9046805112
main90468-05112
9356016012
main93560-16012

30 parts on this diagram · 2 diagrams in section
