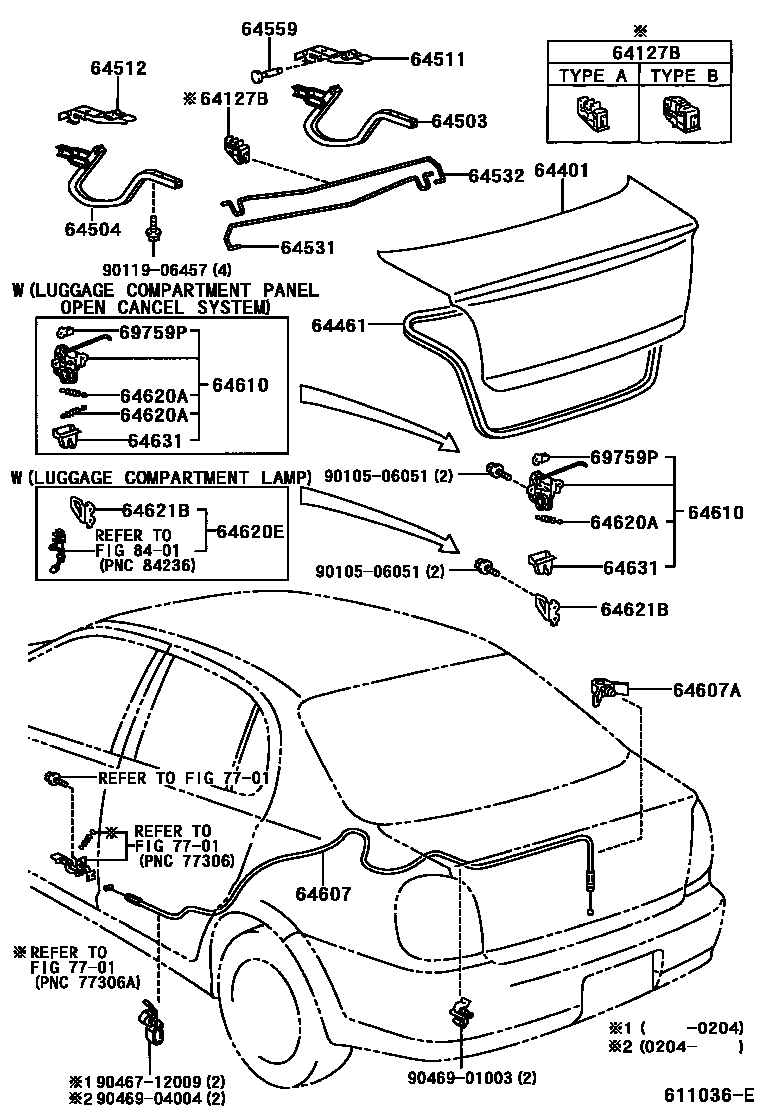

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
W(REAR SPOILER)
W(REAR SPOILER)
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
W(REAR SPOILER)
W(REAR SPOILER)
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
W(REAR SPOILER)
W(REAR SPOILER)
64559PIN, LUGGAGE DOOR HINGE
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)
W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)
sub64610-52040
W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3
W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM),L=158.3
L=23.6
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64631PROTECTOR, LUGGAGE DOOR LOCK
69759PSNAP, DOOR LOCK CONTROL LINK
YELLOW
BROWN
W(LUGGAGE COMPARTMENT PANEL OPEN CANCEL SYSTEM)
7701
8401
9010506051
main90105-06051
9011906457
main90119-06457
9046712009
main90467-12009
9046901003
main90469-01003
9046904004
main90469-04004
