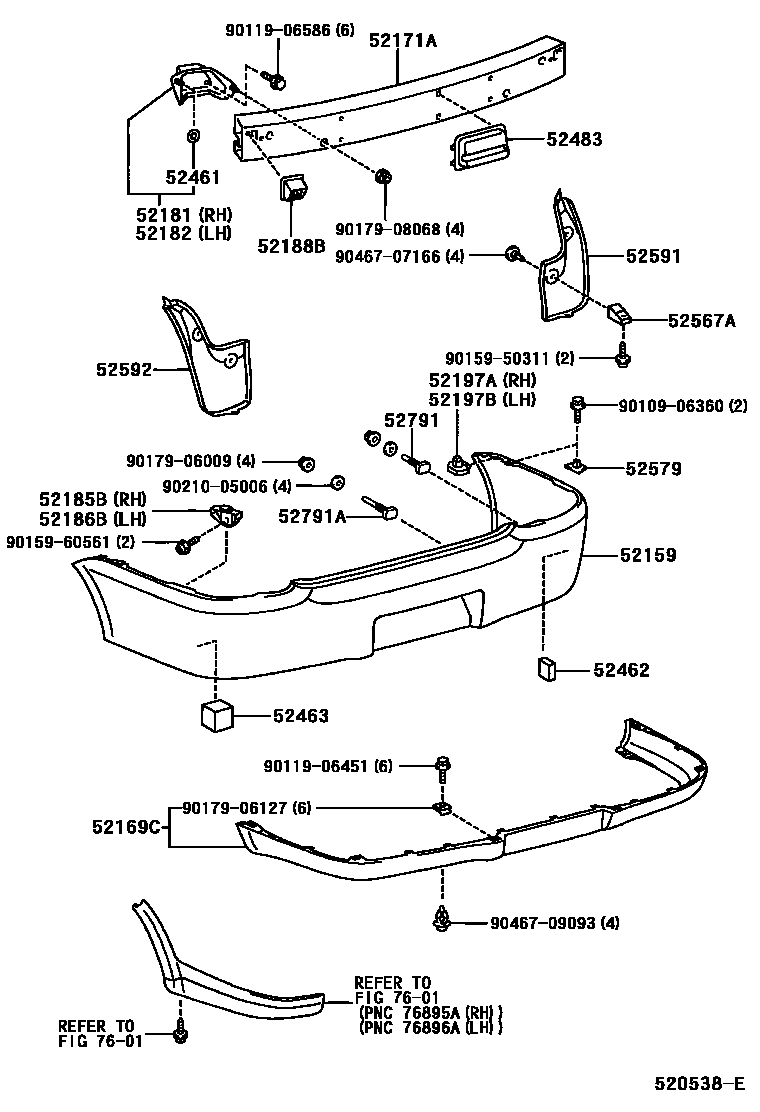

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
W(BUMPER SPOILER)
W(BUMPER SPOILER)
W(BUMPER SPOILER)
52169CCOVER, REAR BUMPER, LOWER
W(BUMPER SPOILER)
52171AREINFORCEMENT, REAR BUMPER, NO.1
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52188BSPACER, REAR BUMPER MOUNTING
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52461PAD, REAR BUMPER, CENTER
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52483BRACKET, REAR BUMPER SHIELD, CENTER
52567ARETAINER, REAR BUMPER, LOWER SIDE
52579RETAINER, REAR BUMPER SIDE, NO.3
52791BOLT, BUMPER MOULDING SET, NO.1
52791ABOLT, BUMPER MOULDING SET, NO.2
7601MUDGUARD & SPOILER
9010906360
main90109-06360
9011906451
main90119-06451
9011906586
main90119-06586
9015950311
main90159-50311
9015960561
main90159-60561
9017906009
main90179-06009
9017906127
main90179-06127
9017908068
main90179-08068
9021005006
main90210-05006
9046707166
main90467-07166
9046709093
main90467-09093
32 parts on this diagram · 2 diagrams in section
