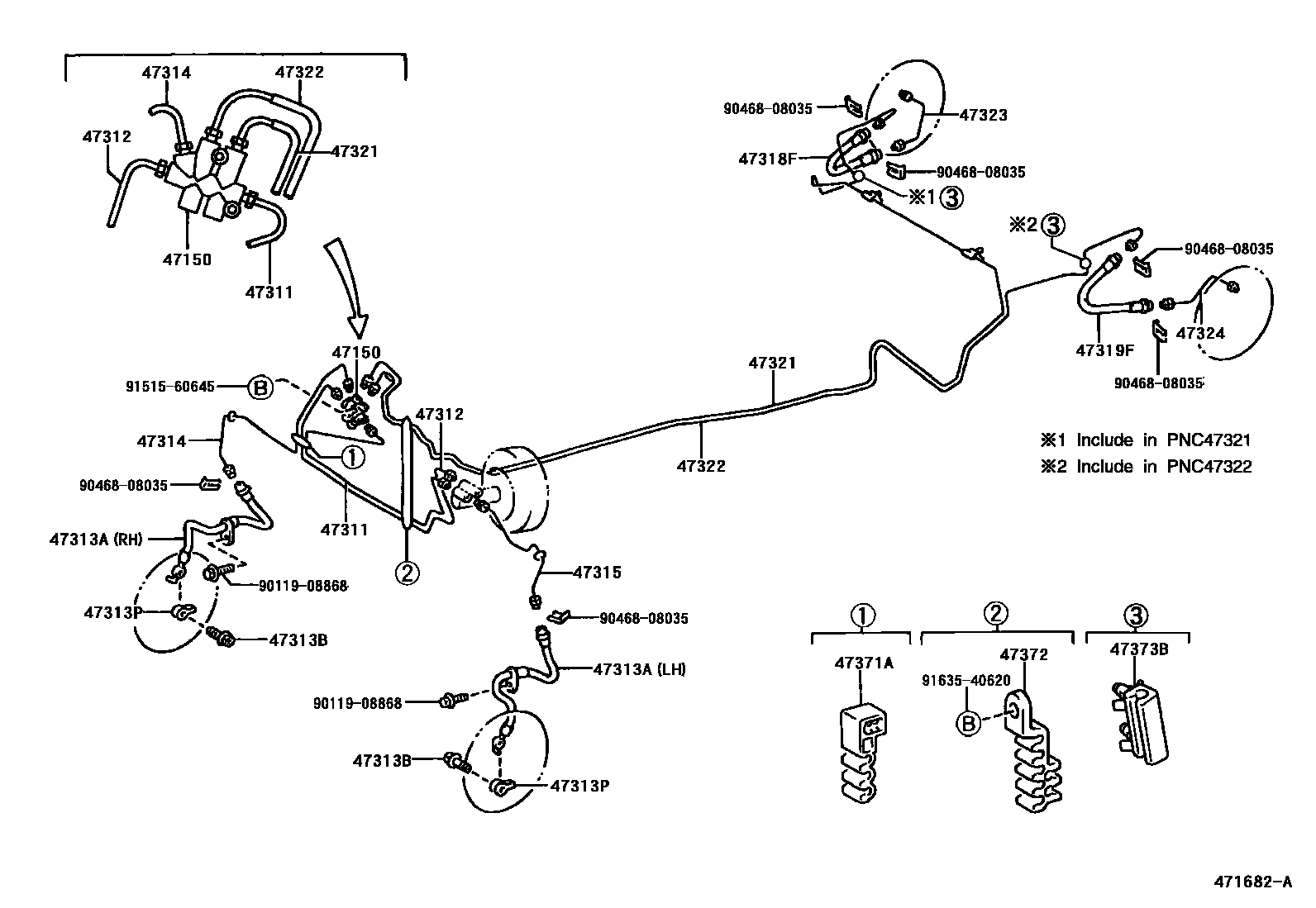

BRAKE TUBE & CLAMP
47150VALVE ASSY, PROPORTIONING
W(ABS)
47311TUBE, FRONT BRAKE, NO.1
W(ABS)
W(ABS)
W/O(ABS)
47312TUBE, FRONT BRAKE, NO.2
W(ABS)
W/O(ABS)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
W/O(ABS)
W(ABS)
W(ABS)
47315TUBE, FRONT BRAKE, NO.5
W/O(ABS)
W(ABS)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
9011908868
main90119-08868
9046808035
main90468-08035
9151560645
main91515-60645
9163540620
main91635-40620
21 parts on this diagram · 5 diagrams in section
