ENGINE OVERHAUL GASKET KIT

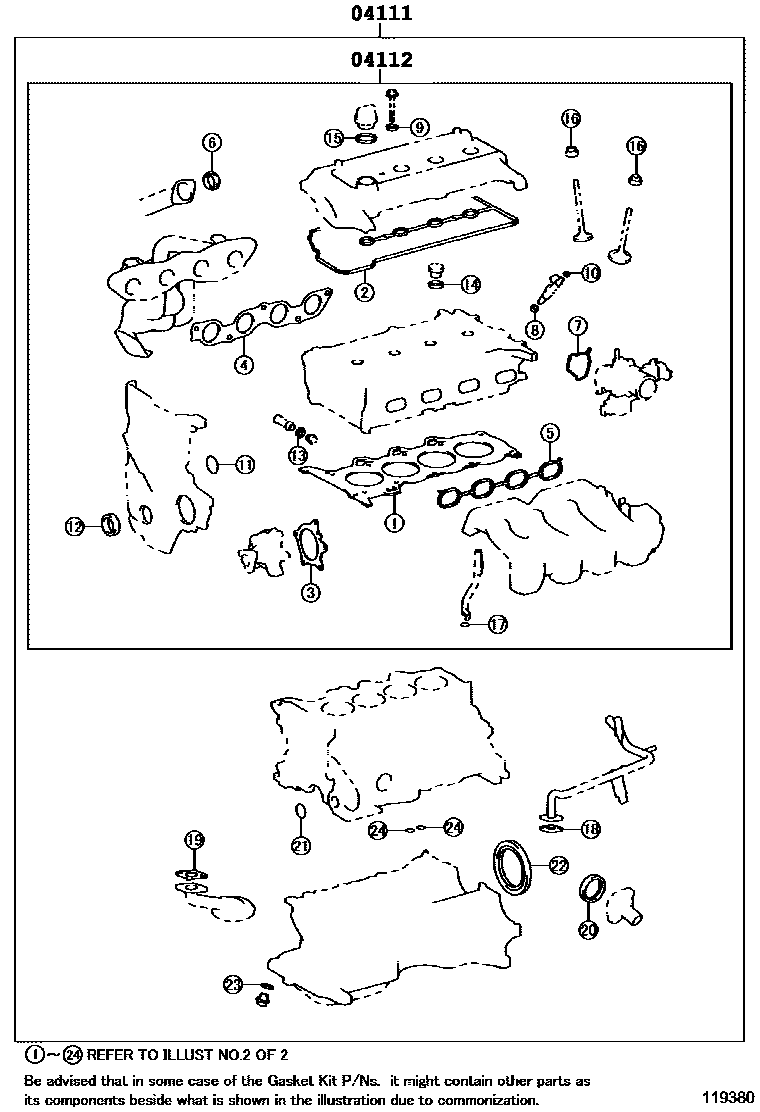

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-21040i199908-200110
sub04111-21041
main04111-21060i200111-200302
sub04111-21061
sub04111-21100
main04111-21061i200302-200308
sub04111-21062
main04111-21062i200308
sub04111-21063
04112GASKET KIT, ENGINE VALVE GRIND
main04112-21040i199908-200111
sub04112-21041
main04112-21060i200111-200302
sub04112-21061
sub04112-21100
main04112-21061i200302-200308
sub04112-21062
main04112-21062i200308
sub04112-21063

2 parts on this diagram · 2 diagrams in section
