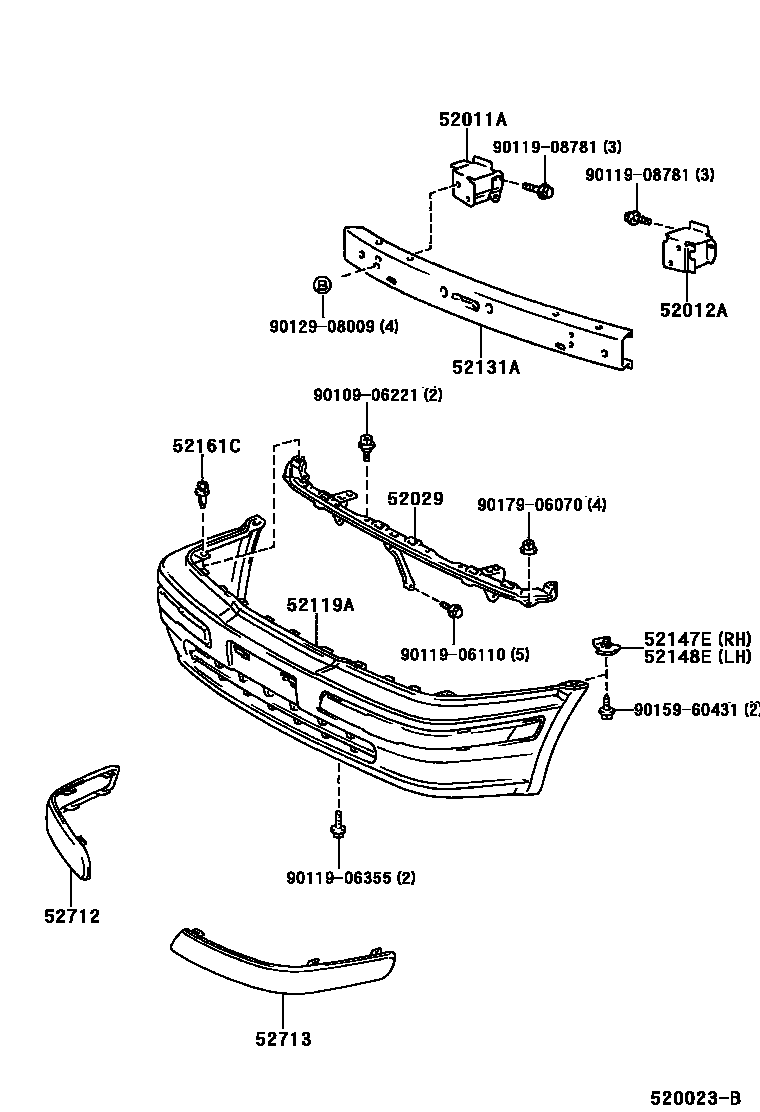

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-16151iEL53199409

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-16141iEL53199409

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-16050iEL53199409-199712

main52029-16052iEL53199712

52119ACOVER, FRONT BUMPER

main52119-16440iEL53199409-199712

main52119-16540iEL53199712

52131AREINFORCEMENT, FRONT BUMPER

main52131-16071iEL53199409

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-16080iEL53199409

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-16080iEL53199409

52161CPIECE, FRONT BUMPER

main52161-16010×2iEL53199409

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-16010iEL53199409-199712

main52712-16050iEL53199712

main52712-16070-B0iEL53199712

DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5

main52712-16070-B2iEL53199712

GRAY MM,040 ,1A0 ,6P6

52713PLUG, FRONT BUMPER MOULDING

main52713-16010iEL53199409-199712

main52713-16050iEL53199712

main52713-16070-B0iEL53199712

DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5

main52713-16070-B2iEL53199712

GRAY MM,040 ,1A0 ,6P6

9010906221

main90109-06221

9011906110

main90119-06110

9011906355

main90119-06355

9011908781

main90119-08781

9012908009

main90129-08009

9015960431

main90159-60431

9017906070

main90179-06070

17 parts on this diagram · 2 diagrams in section
