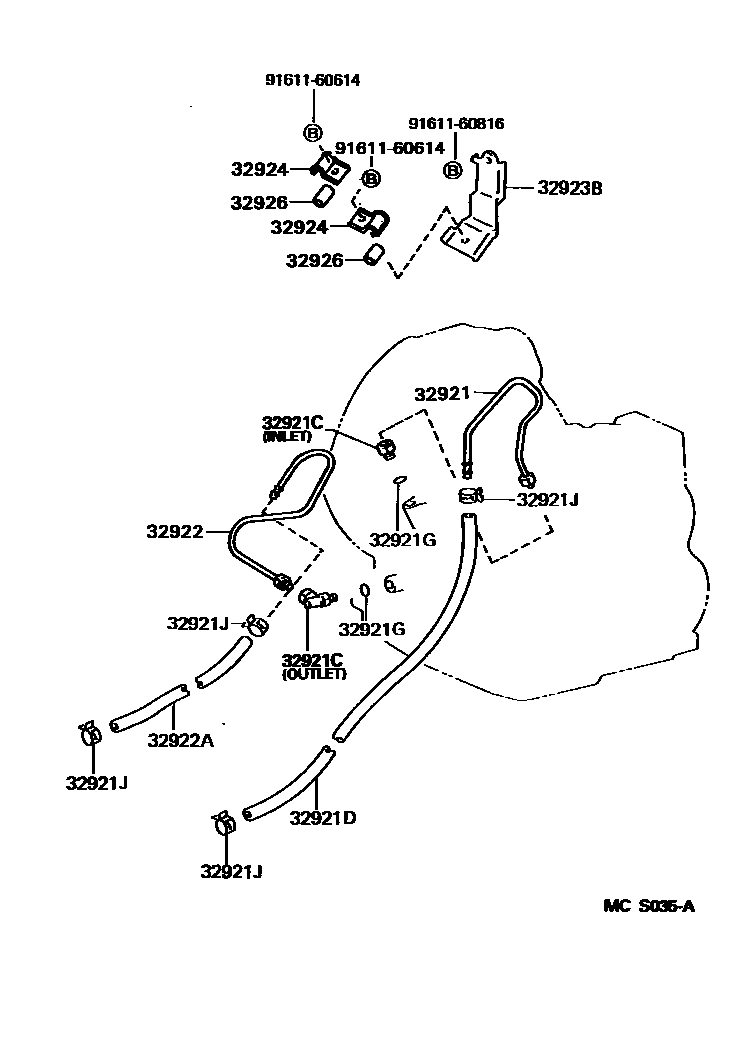

OIL COOLER & TUBE (ATM)

0001 1A132L 0002 1A242L

32921TUBE, OIL COOLER INLET, NO.1

main32921-16070iEL53..3FC199409-199712

main32921-16110iEL53..4FC199409-199712

main32921-16170iEL53..3FC199712

main32921-46010iEL53..4FC199712

32921CUNION(FOR OIL COOLER TUBE)

main32901-12030iEL53..3FC199712

INLET

main90404-14007×2iEL53..4FC199409

main90407-14003iEL53..3FC199409

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15048iEL53..4FC199409

main90445-15054iEL53..3FC199409

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iEL53..ATM199409

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039×4iEL53..ATM199409

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-16060iEL53..4FC199409-199712

main32922-16061iEL53..4FC199712

main32922-16090iEL53..3FC199409-199712

main32922-16130iEL53..3FC199712

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15014iEL53..4FC199712

main90445-15045iEL53..3FC199409

main90445-15046iEL53..4FC199409-199712

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-16031iEL53..3FC199409

main90462-10082×2iEL53..4FC199409

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-10082×2iEL53..3FC199409

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iEL53..ATM199409

L=30,ID=8

9161160614

main91611-60614

9161160816

main91611-60816

12 parts on this diagram · 2 diagrams in section
