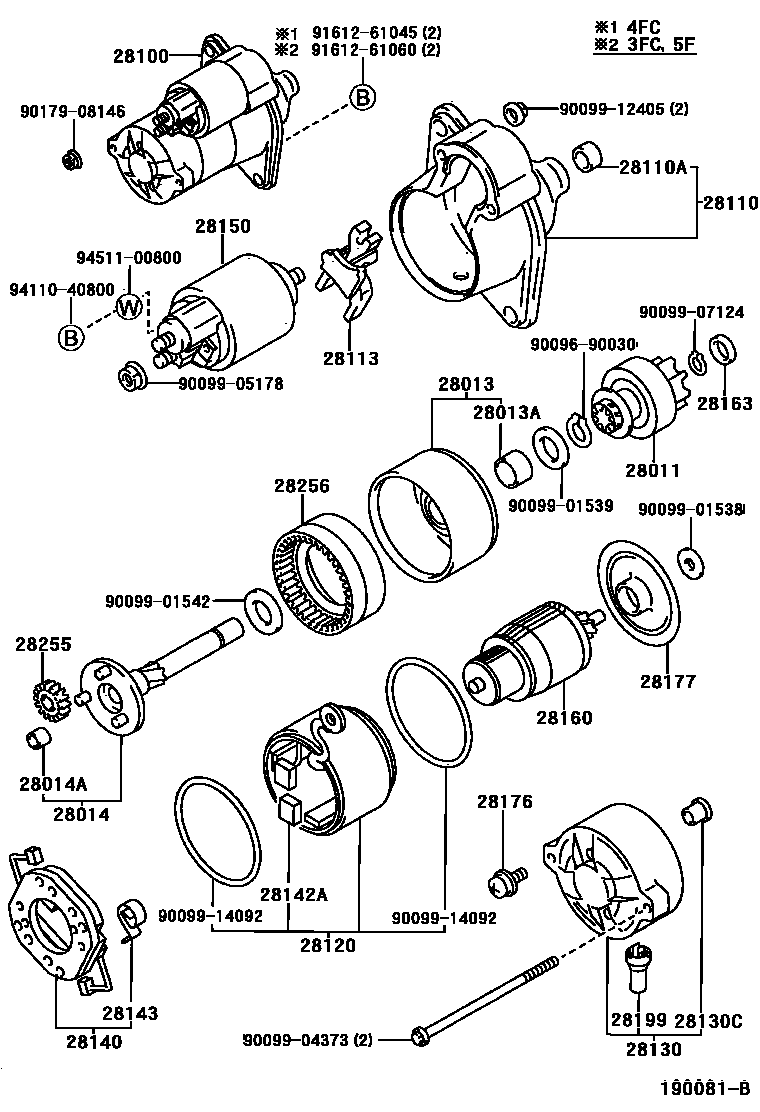

STARTER

0001 112V 0.8KW 0002 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i5EFE..EL53199409-199712

12V 1.0KW

main28011-70020i5EFE..EL53..USA199409

12V 0.8KW

main28011-70020i5EFE..EL53..CND199712

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28013-70020i5EFE..EL53199409-199712

sub28013-70030

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i5EFE..EL53..USA199409-199712

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-70020i5EFE..EL53..USA199409-199712

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i5EFE..EL53..USA199409-199712

28100STARTER ASSY

main28100-11010i5EFE..EL53..(3FC,4F,5F)..USA199409-199508

12V 0.8KW

main28100-11020i5EFE..EL53..4FC..USA199409-199508

12V 0.8KW

main28100-11080i5EFE..EL53..(3FC,4F,5F)..USA199508-199712

12V 0.8KW

sub28100-11160

main28100-11090i5EFE..EL53..4FC..USA199508-199712

12V 0.8KW

main28100-11100i5EFE..EL53..3FC,4F,5F199409-199712

12V 1.0KW

main28100-11110i5EFE..EL53..4FC199409-199712

12V 1.0KW

main28100-11140i5EFE..EL53..(3FC,5F)..USA199712

12V 0.8KW

sub28100-11130

main28100-11150i5EFE..EL53..4FC..USA199712

12V 0.8KW

main28100-11160i5EFE..EL53..3FC,5F199712

12V 1.0KW

main28100-11170i5EFE..EL53..4FC199712

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-10040i5EFE..EL53..3FC,4F,5F199409-199712

12V 1.0KW

main28110-10060i5EFE..EL53..4FC199409-199712

12V 1.0KW

main28110-11010i5EFE..EL53..(3FC,4F,5F)..USA199409

12V 0.8KW

main28110-11010i5EFE..EL53..(3FC,5F)..CND199712

main28110-11020i5EFE..EL53..4FC..CND199712

main28110-11020i5EFE..EL53..4FC..USA199409

12V 0.8KW

28110ABEARING(FOR STARTER HOUSING)

main90099-10171i5EFE..EL53199409-199712

28113LEVER, STARTER PINION DRIVE

main28113-16070i5EFE..EL53..USA199409-199712

28120YOKE ASSY, STARTER

main28120-26071i5EFE..EL53199409-199712

12V 1.0KW

main28120-70020i5EFE..EL53..USA199409

12V 0.8KW

main28120-70050i5EFE..EL53199712

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-10040i5EFE..EL53199409-199712

12V 1.0KW

main28130-11010i5EFE..EL53..USA199409

12V 0.8KW

main28130-11010i5EFE..EL53..CND199712

28130CBEARING, STARTER FLANGE

main90099-10183i5EFE..EL53199409-199712

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i5EFE..EL53199409-199712

12V 1.0KW

main28140-70020i5EFE..EL53..USA199409

12V 0.8KW

main28140-70020i5EFE..EL53..CND199712

28142ASTARTER KIT

main28142-70020i5EFE..EL53..USA199409-199712

28143SPRING, STARTER BRUSH

main28143-70020i5EFE..EL53..CND199712

main28143-70020i5EFE..EL53..USA199409

12V 0.8KW

main90099-17112i5EFE..EL53199409-199712

12V 1.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-10021i5EFE..EL53..USA199409-199508

main28150-11080i5EFE..EL53..USA199508-199712

12V 0.8KW

main28150-11100i5EFE..EL53199409-199712

12V 1.0KW

main28150-16160i5EFE..EL53199712

28160ARMATURE ASSY, STARTER

main28160-26071i5EFE..EL53199409-199712

12V 1.0KW

main28160-70021i5EFE..EL53..USA199409

12V 0.8KW

main28160-70050i5EFE..EL53199712

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-70020i5EFE..EL53199409-199712

28176SCREW, STARTER

main28176-15090i5EFE..EL53..USA199409-199510

sub28176-87701

main90099-00270i5EFE..EL53199510

28177PLATE(FOR STARTER ARMATURE)

main28177-70020i5EFE..EL53..USA199409-199712

28199COVER, STARTER

main28199-46080i5EFE..EL53199409

28255GEAR, PLANET

main28255-70020i5EFE..EL53..USA199409-199712

28256GEAR, STARTER INTERNAL

main28256-70020i5EFE..EL53..USA199409-199712

9009690030

main90096-90030

9009901538

main90099-01538

9009901539

main90099-01539

9009901542

main90099-01542

9009904373

main90099-04373

9009905178

main90099-05178

9009907124

main90099-07124

9009912405

main90099-12405

9009914092

main90099-14092

9017908146

main90179-08146

9161261045

main91612-61045

9161261060

main91612-61060

9411040800

main94110-40800

9451100800

main94511-00800

37 parts on this diagram · 2 diagrams in section
