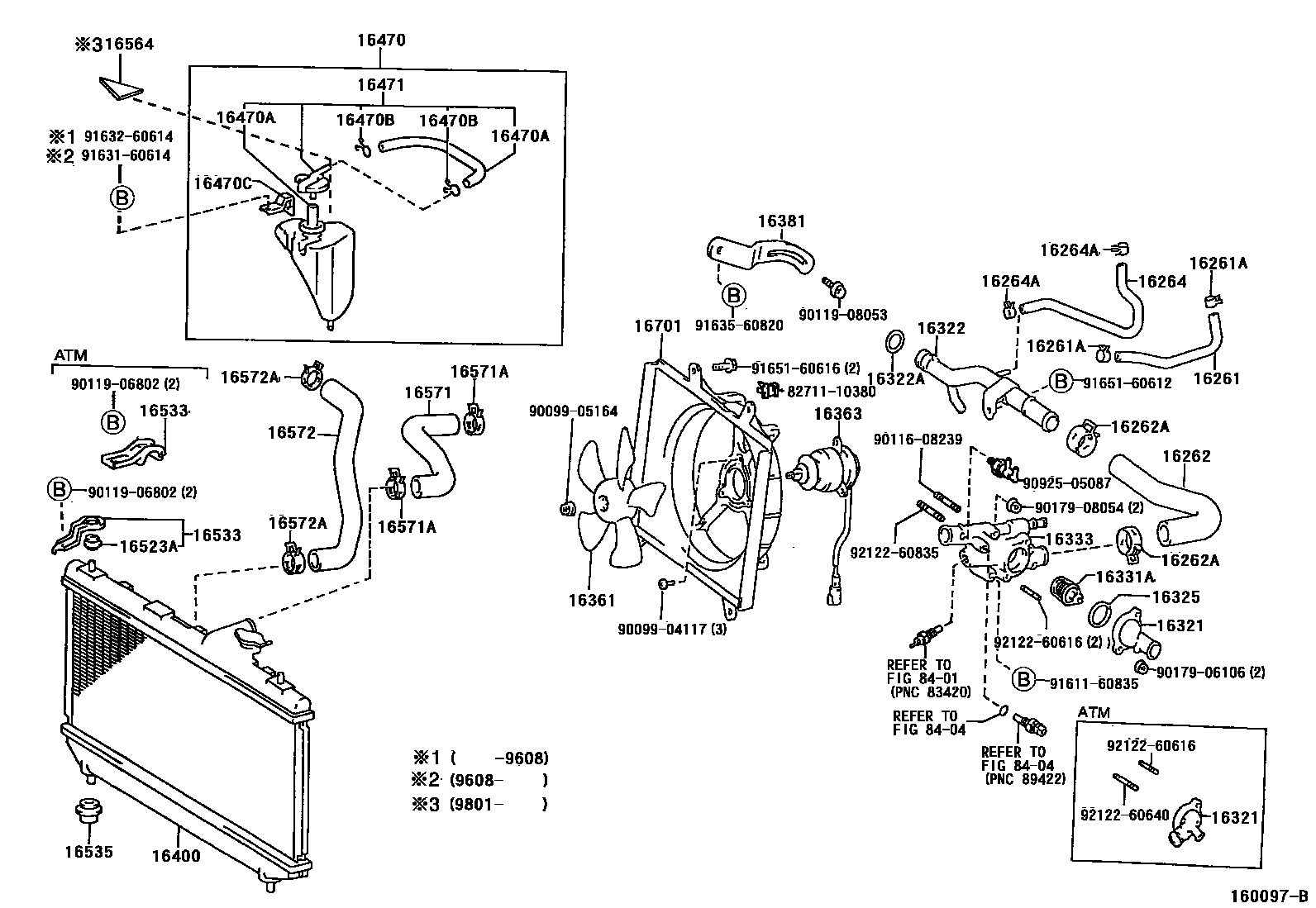

RADIATOR & WATER OUTLET

0001 1 0002 1

16261HOSE, WATER BY-PASS

main99555-00200i5EFE..EL53199512

*H,L=190

main99555-00300i5EFE..EL53199409-199512

*H,L=210

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009×2i5EFE..EL53199409

16262HOSE, WATER INLET

main16262-10010i5EFE..EL53..MTM199409-199410

main16262-10020i5EFE..EL53..ATM199409-199410

main16262-10030i5EFE..EL53..MTM199410

main16262-10040i5EFE..EL53..ATM199410

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003×2i5EFE..EL53199409

16264HOSE, WATER BY-PASS, NO.2

main16264-11080i5EFE..EL53199409

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009×2i5EFE..EL53199409

16321INLET, WATER

main16321-10011i5EFE..EL53..MTM199409

main16321-11011i5EFE..EL53..ATM199409

16322PIPE, WATER INLET

main16322-11110i5EFE..EL53199409

16322ARING, O(FOR WATER INLET)

main96711-35028i5EFE..EL53199409-199503

main96761-35028i5EFE..EL53199503

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63011i5EFE..EL53199409

16331ATHERMOSTAT

main90916-03046i5EFE..EL53199409

*WAX 82-95

16333HOUSING, WATER OUTLET

main16333-11200i5EFE..EL53199409-199608

main16333-11220i5EFE..EL53199608-199704

main16333-11221i5EFE..EL53199704

16361FAN

main16361-11020i5EFE..EL53..USA;5EFE..EL53..MTM..CND199409

MARK 171

main16361-74070i5EFE..EL53..ATM199409

MARK 212

16363MOTOR, COOLING FAN

main16363-11070i5EFE..EL53..USA;5EFE..EL53..MTM..CND199409

12V 80W

main16363-11080i5EFE..EL53..ATM199409

12V 118W

16381BAR, FAN BELT ADJUSTING

main16381-11021i5EFE..EL53..MTM199409-199712

L=175

main16381-11030i5EFE..EL53..ATM199409-199608

16400RADIATOR ASSY

main16400-11590i5EFE..EL53..MTM..USA199409-199712

MARK 1159

main16400-11591i5EFE..EL53..5F..USA199712

MARK 1159

main16400-11610i5EFE..EL53..MTM199409-199505

MARK 1161

main16400-11611i5EFE..EL53..MTM199505-199712

MARK 1161

main16400-11612i5EFE..EL53..5F199712

MARK 1161

main16400-11620i5EFE..EL53..4FC..USA;5EFE..EL53..3FC..STD..USA199409-199712

DEPTH=16,MARK 1162

main16400-11621i5EFE..EL53..ATM..USA199712

MARK 1162

main16400-11650i5EFE..EL53..3FC199409-199505

MARK 1165

main16400-11651i5EFE..EL53..3FC199505-199712

MARK 1165

main16400-11652i5EFE..EL53..3FC199712

MARK 1165

main16400-11690i5EFE..EL53..4FC199409-199505

DEPTH=27,MARK 1169

main16400-11790i5EFE..EL53..4FC199505-199712

MARK 1179

main16400-11791i5EFE..EL53..4FC199712

MARK 1179

16470TANK ASSY, RADIATOR RESERVE

main16470-11090i5EFE..EL53199409-199801

main16470-11130i5EFE..EL53199801

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078×2i5EFE..EL53199409

L=600(*H,L=140)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i5EFE..EL53199409

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-11050i5EFE..EL53199409

16471CAP SUB-ASSY, RESERVE TANK

main16405-11090i5EFE..EL53199409

16523ACUSHION, RADIATOR SUPPORT

main16523-11050×2i5EFE..EL53..MTM199409

16533SUPPORT, RADIATOR, UPPER

main16505-11160×2i5EFE..EL53..MTM199409

main16533-11050×2i5EFE..EL53..ATM199409

16535SUPPORT, RADIATOR, LOWER

main90480-23018×2i5EFE..EL53..MTM199409

main90916-04004×2i5EFE..EL53..ATM199409

16564CUSHION, RADIATOR RESERVE TANK

main16564-11010i5EFE..EL53199801

16571HOSE, RADIATOR, INLET

main16571-11240i5EFE..EL53199409

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003×2i5EFE..EL53199409

16572HOSE, RADIATOR, OUTLET

main16572-11250i5EFE..EL53..MTM199409

main16572-11260i5EFE..EL53..ATM199409

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003×2i5EFE..EL53199409

16701SHROUD SUB-ASSY, FAN

main16711-11250i5EFE..EL53..ATM..USA; 5EFE..EL53..MTM199409

PUERTORICO SPEC

main16711-11260i5EFE..EL53..ATM199409

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9009904117

main90099-04117

9009905164

main90099-05164

9011608239

main90116-08239

9011906802

main90119-06802

9011908053

main90119-08053

9017906106

main90179-06106

9017908054

main90179-08054

9092505087

main90925-05087

9161160835

main91611-60835

9163160614

main91631-60614

9163260614

main91632-60614

9163560820

main91635-60820

9165160612

main91651-60612

9165160616

main91651-60616

9212260616

main92122-60616

9212260640

main92122-60640

9212260835

main92122-60835

50 parts on this diagram · 2 diagrams in section
