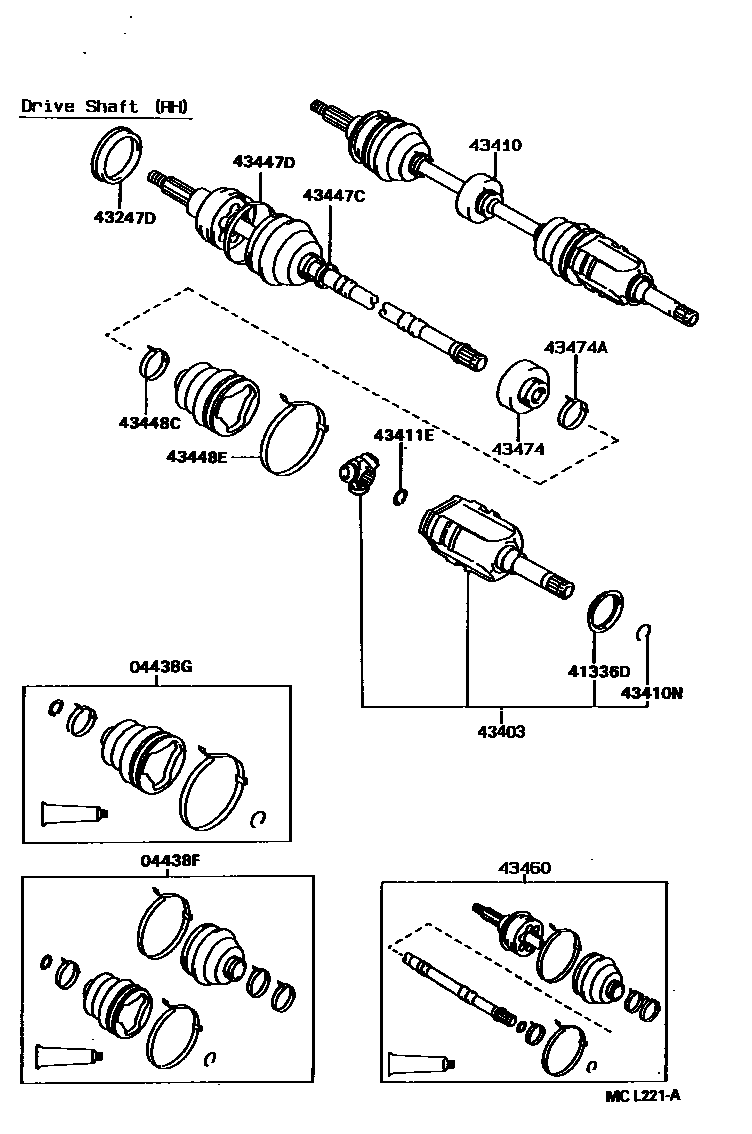

FRONT DRIVE SHAFT

0001 1 0002 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-16060iEL42199009-199409

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-16050iEL42199009-199409

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iEL42199009-199409

43247DDEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH

main43247-10020iEL42199009-199208

main43247-16040iEL42199208-199409

43403JOINT SET, FRONT AXLE INBOARD, RH

main43030-16020iEL42199009-199409

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-16180iEL42199009-199101

main43410-16181iEL42199101-199409

main43410-16240iEL42199208-199409

W(*66)

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iEL42199009-199409

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-20049iEL42199009-199409

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01694iEL42199009-199409

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01693iEL42199009-199409

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01694iEL42199009-199409

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01695iEL42199009-199409

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19575iEL42199009-199101

main43460-19576iEL42199101-199409

main43460-19735iEL42199208-199409

W(*66)

43474DAMPER, DRIVE SHAFT

main43474-16020iEL42199009-199409

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main90949-01706iEL42199009-199409

15 parts on this diagram · 2 diagrams in section
