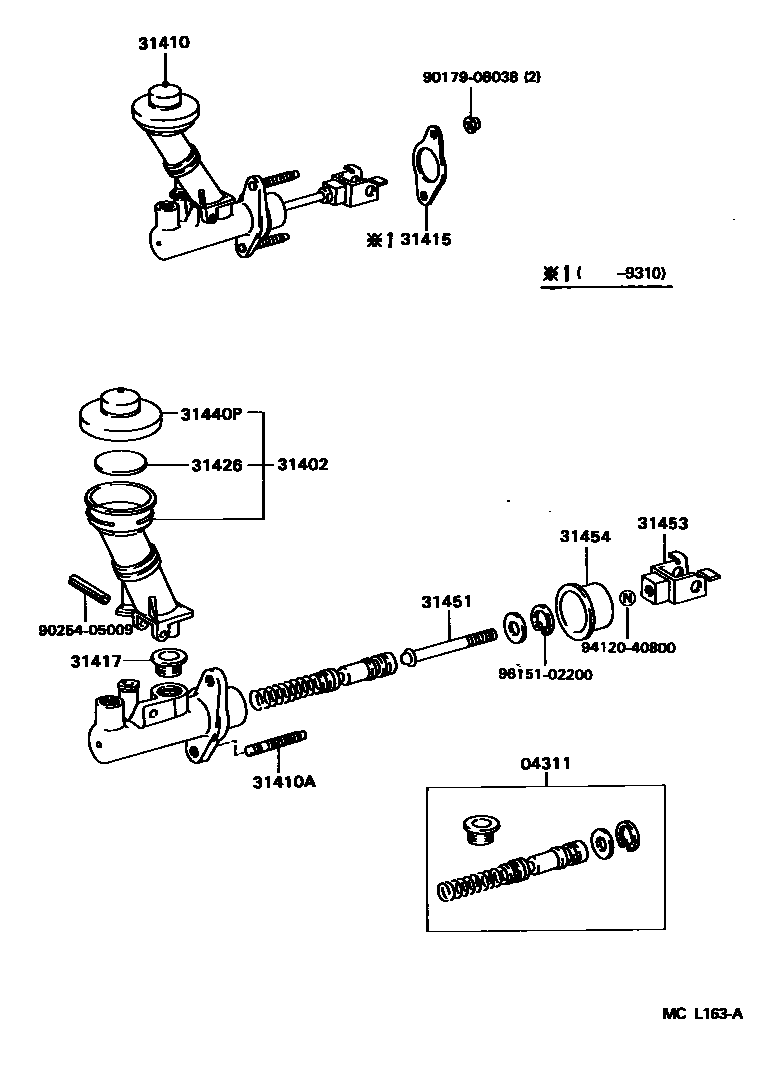

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iEL42..MTM199009-199205

sub04311-12080

main04311-12080iEL42..MTM199205-199403

main04311-12110iEL42..MTM199403-199409

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-16010iEL42..MTM199009-199409

31410CYLINDER ASSY, CLUTCH MASTER

main31410-16040iEL42..MTM199009-199409

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iEL42..MTM199009-199409

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iEL42..MTM199009-199310

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iEL42..MTM199009-199409

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iEL42..MTM199009-199409

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-36010iEL42..MTM199009-199409

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-16020iEL42..MTM199009-199409

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-10040iEL42..MTM199009-199409

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iEL42..MTM199202-199409

main31454-24010iEL42..MTM199009-199202

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

9615102200

main96151-02200

15 parts on this diagram · 1 diagram in section
