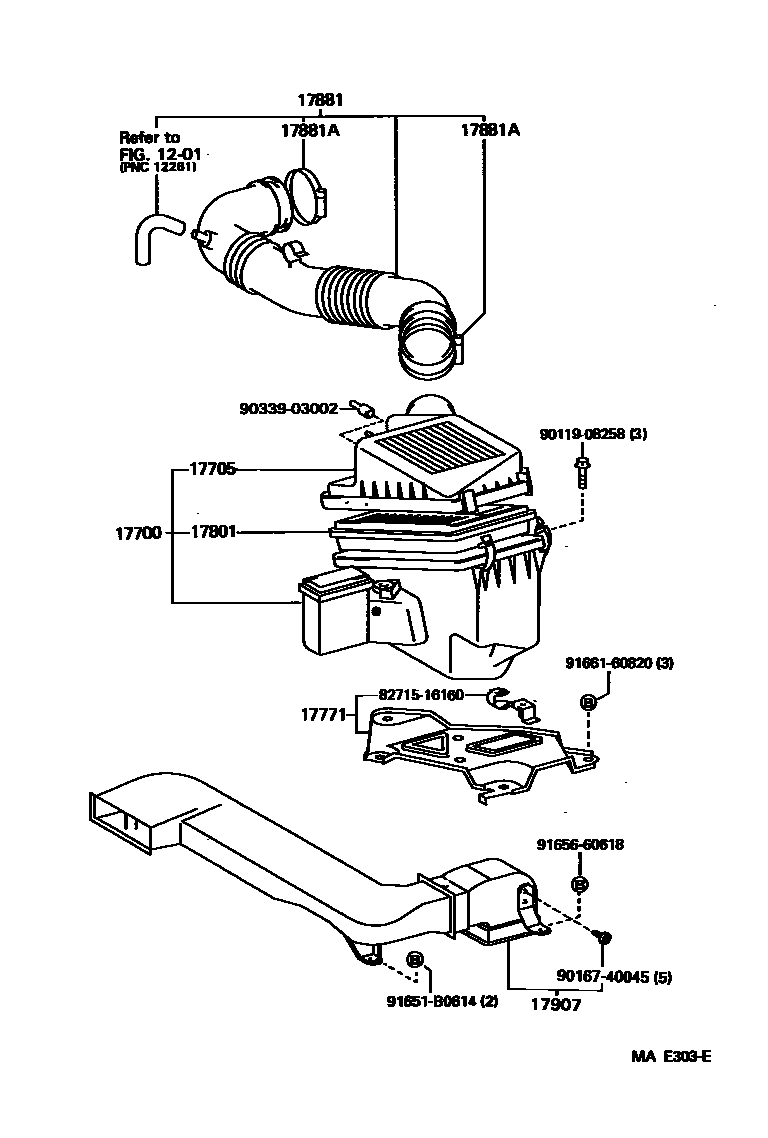

AIR CLEANER

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-11700i3EE..EL42199009-199409

17705CAP SUB-ASSY, AIR CLEANER

main17705-11480i3EE..EL42199009-199409

17771BRACKET, AIR CLEANER INLET DUCT

main17771-11090i3EE..EL42199009-199409

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-11080i3EE..EL42199009-199409

17881HOSE, AIR CLEANER, NO.1

main17880-11120i3EE..EL42199009-199409

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-75001×2i3EE..EL42199009-199409

17907INLET SUB-ASSY, COOL AIR

main17880-11100i3EE..EL42199009-199409

8271516160BRACKET,WIRING HARNESS CLAMP

main82715-16160

9011908258

main90119-08258

9016740045

main90167-40045

9033903002

main90339-03002

91651B0614

main91651-B0614

9165660618

main91656-60618

9166160820

main91661-60820

15 parts on this diagram · 1 diagram in section
