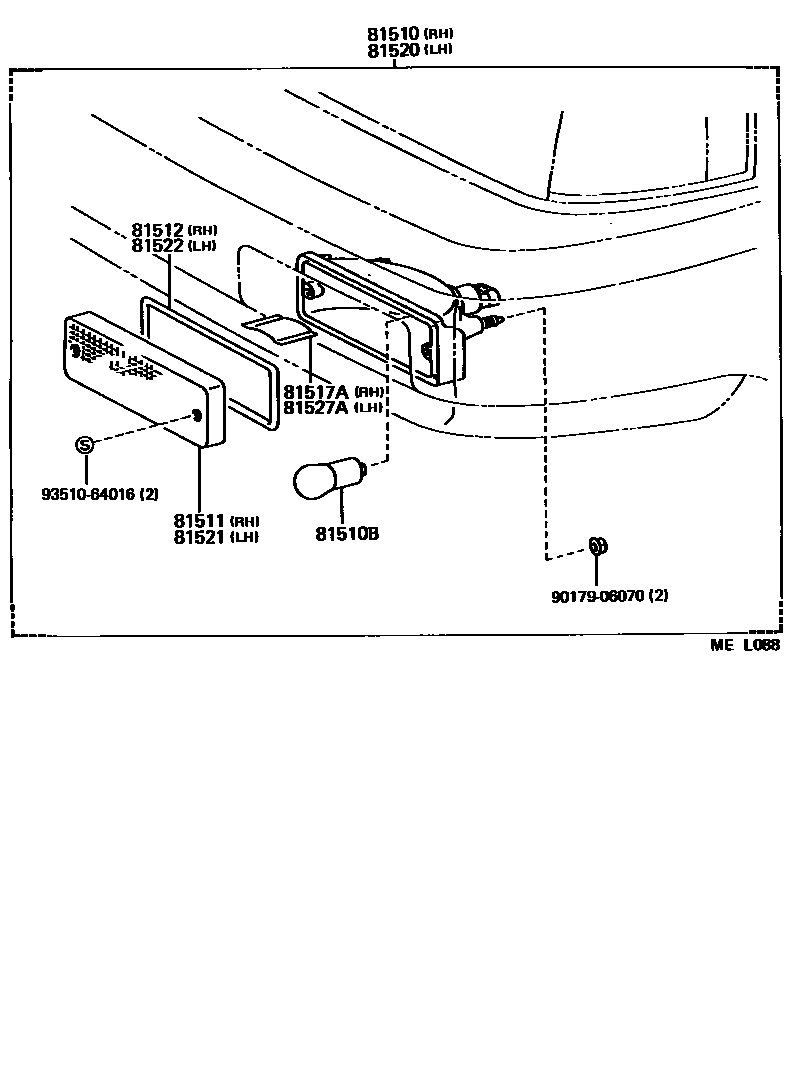

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-80028iEL31198808-199009

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11270×2iEL31198808-199009

12V 27W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-22221iEL31198808-199009

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iEL31198808-199009

81517APROTECTOR, FRONT TURN SIGNAL LAMP, RH

main81517-22220iEL31198808-199009

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-80028iEL31198808-199009

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-22221iEL31198808-199009

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iEL31198808-199009

81527APROTECTOR, FRONT TURN SIGNAL LAMP, LH

main81517-22220iEL31198808-199009

9017906070

main90179-06070

9351064016

main93510-64016

11 parts on this diagram · 1 diagram in section
