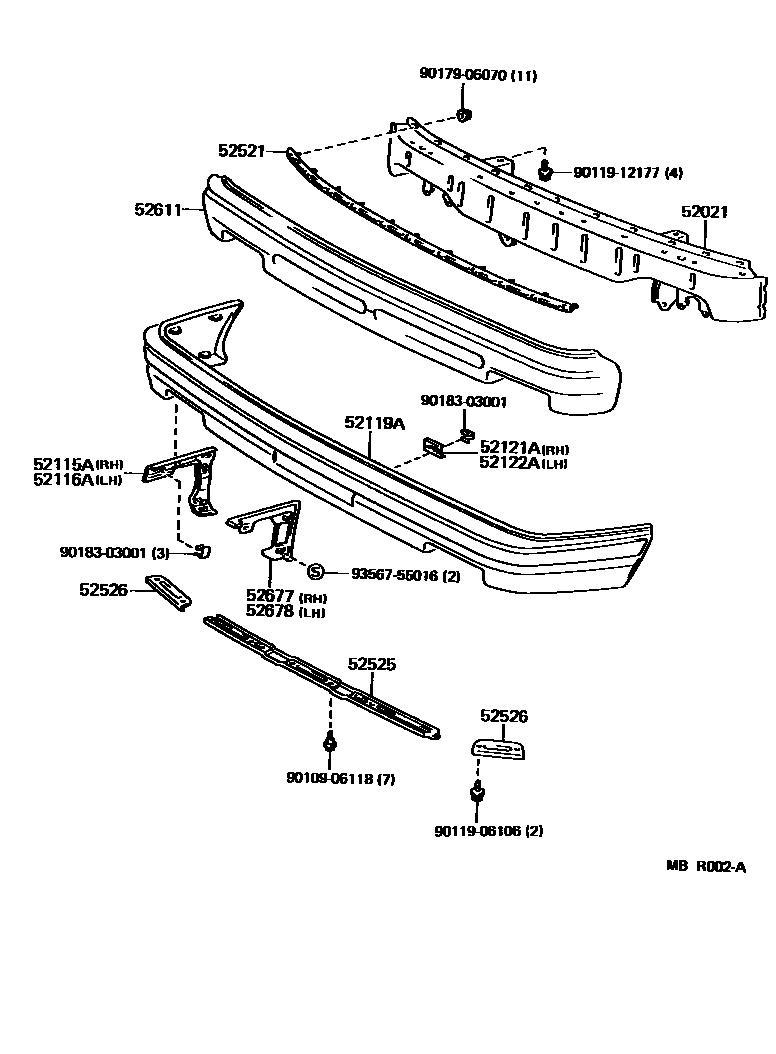

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-16061iEL31..TER198808-199009

main52021-16070iEL31..EZ198808-199009

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-16090iEL31198808-199009

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-16080iEL31198808-199009

52119ACOVER, FRONT BUMPER

main52119-16220iEL31198808-199009

52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH

main52121-16030iEL31198808-199009

52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH

main52121-16030iEL31198808-199009

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-12050iEL31198808-199009

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-16050iEL31198808-199009

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-12010×2iEL31198808-199009

52611ABSORBER, FRONT BUMPER ENERGY

main52611-16050iEL31198808-199009

52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH

main52677-16030iEL31198808-199009

52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH

main52678-16030iEL31198808-199009

9010906118

main90109-06118

9011906106

main90119-06106

9011912177

main90119-12177

9017906070

main90179-06070

9018303001

main90183-03001

9356755016

main93567-55016

18 parts on this diagram · 1 diagram in section
