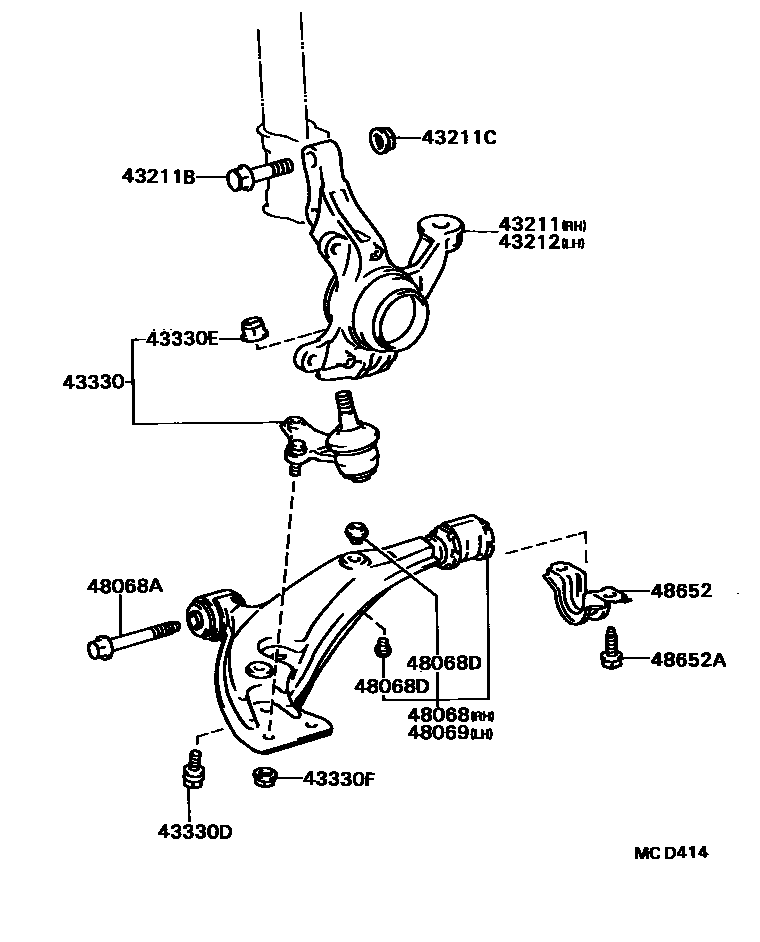

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-16030iEL31198808-199009

43211BBOLT (FOR ABSORBER SETTING)

main90105-15002iEL31198808-199009

43211CNUT (FOR ABSORBER SETTING)

main90179-15003iEL31198808-199009

43212KNUCKLE, STEERING, LH

main43212-16030iEL31198808-199009

43330JOINT ASSY, LOWER BALL, FRONT

main43330-19045iEL31198808-198904

main43330-19075iEL31198904-199009

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90119-10407iEL31198808-199009

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-12007iEL31198904-199009

main90179-12027iEL31198808-198904

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10087iEL31198808-199009

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-16040iEL31198808-199008

main48068-16060iEL31199008-199009

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90119-12099iEL31198808-199009

48068DPLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)

main90950-01414iEL31198808-199009

main90950-01478iEL31198808-199009

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-16040iEL31198808-199008

main48069-16060iEL31199008-199009

48652BRACKET, FRONT LOWER ARM

main48652-10010iEL31198808-199009

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90105-12061iEL31198808-199009

14 parts on this diagram · 1 diagram in section
