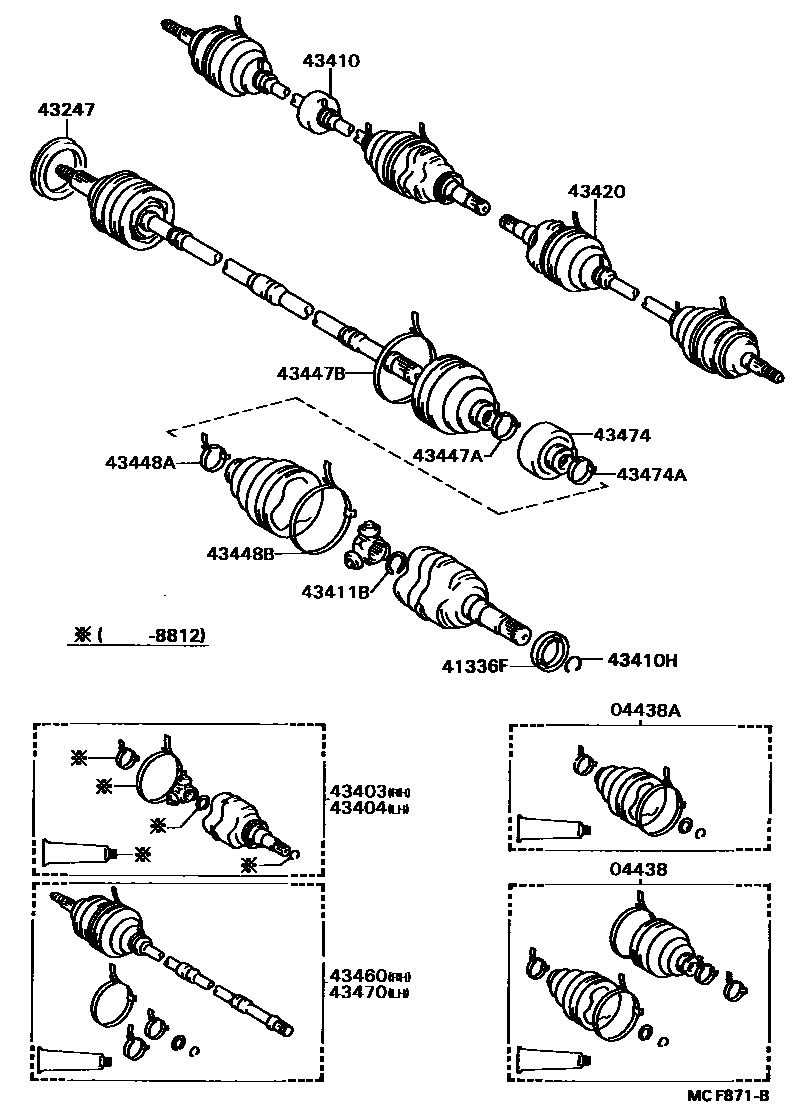

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-10022×2iEL31198808-199009

sub04438-16040

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-10011×2iEL31198808-199009

sub04438-16030

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-12010×2iEL31198808-199009

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-10010×2iEL31198808-199009

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-10010iEL31198912-199009

sub43403-10011

main43403-19046iEL31198808-198912

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-10010iEL31198912-199009

sub43403-10011

main43403-19046iEL31198808-198912

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-16060iEL31198808-199009

sub43410-16061

sub43525-20030

sub90179-22020

43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

main90521-26004iEL31198808-199009

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22001iEL31198808-199009

sub90520-22029

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-16060iEL31198808-199009

sub43420-16061

sub43525-20030

sub90179-22020

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01078iEL31198808-199009

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01080iEL31198808-199009

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01078iEL31198808-199009

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01146iEL31198808-199009

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19155iEL31198808-199009

sub43460-19156

sub43525-20030

sub90179-22020

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-19125iEL31198808-199009

sub43470-19126

sub43525-20030

sub90179-22020

43474DAMPER, DRIVE SHAFT

main43474-10010iEL31198808-199009

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main90949-01078iEL31198808-199009

18 parts on this diagram · 1 diagram in section
