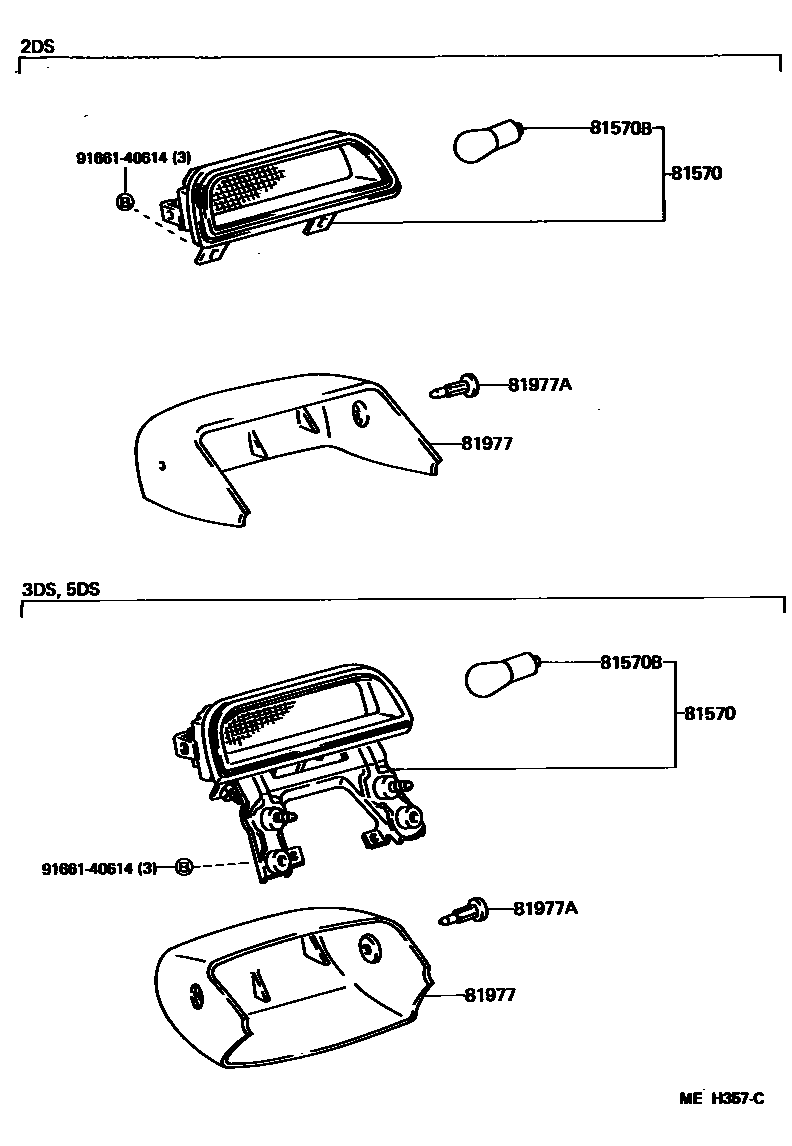

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-16030iEL31..3DS198608-198808

main81570-16040iEL31..5DS198608-198808

main81570-16050iEL31..2DS198701-198808

81570BBULB (FOR CENTER STOP LAMP)

main99132-11270iEL31198608-198808

12V 27W,12V 27W

81977COVER, CENTER STOP LAMP

main81977-16030-01iEL31..5DS198608-198808

BLACK,NEW BLACK,TRIM2#

main81977-16030-04iEL31..5DS198608-198808

BLUE,BLUE,TRIM8#

main81977-16030-05iEL31..5DS198608-198808

BEIGE,DARK BEIGE,TRIM4#

main81977-16040-01iEL31..2DS198701-198808

BLACK,BLACK,TRIM2#

main81977-16040-04iEL31..2DS198701-198808

BLUE,BLUE,TRIM8#

main81977-16040-05iEL31..2DS198701-198808

BEIGE,DARK BEIGE,TRIM4#

main81977-16050-01iEL31..3DS198608-198808

BLACK,NEW BLACK,TRIM2#

main81977-16050-04iEL31..3DS198608-198808

BLUE,BLUE,TRIM8#

main81977-16050-05iEL31..3DS198608-198808

BEIGE,DARK BEIGE,TRIM4#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07055-11×3iEL31198608-198808

BLACK,NEW BLACK,TRIM2#

main90467-07055-14×3iEL31198608-198808

BLUE,DEEP BLUE,TRIM8#

main90467-07055-25×3iEL31198608-198808

BEIGE,DARK BEIGE,TRIM4#

9166140614

main91661-40614

5 parts on this diagram · 1 diagram in section
