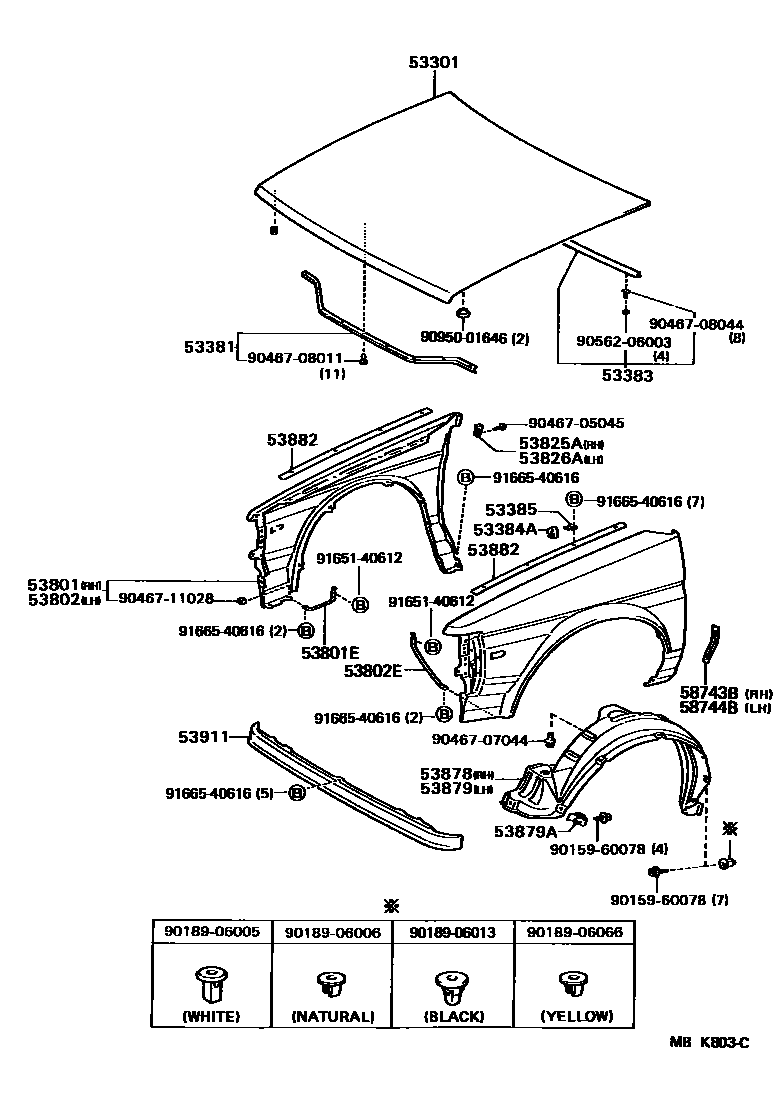

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-16080iEL31198608-198805

main53301-16081iEL31198805-198808

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-16040iEL31198608-198808

53383SEAL, HOOD TO COWL TOP

main53383-16030iEL31198608-198808

53384ABUMPER, FENDER TO HOOD

main53384-16030×2iEL31198608-198808

53385RETAINER, HOOD, BUMPER

main53385-14010iEL31198608-198808

RH

main53386-14010iEL31198608-198808

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-16080iEL31198608-198805

main53801-16081iEL31198805-198808

53801EBRACE, FRONT FENDER TO APRON, RH

main53835-16020iEL31198608-198808

53802FENDER SUB-ASSY, FRONT LH

main53802-16080iEL31198608-198805

main53802-16081iEL31198805-198808

53802EBRACE, FRONT FENDER TO APRON, LH

main53836-16020iEL31198608-198808

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-16010iEL31198608-198808

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-16010iEL31198608-198808

53878LINER, FRONT FENDER, RH

main53875-16030iEL31198608-198808

53879LINER, FRONT FENDER, LH

main53876-16030iEL31198608-198808

53879ARETAINER, FRONT FENDER LINER

main53879-14010×8iEL31198608-198808

53882PACKING, FRONT FENDER MAIN

main53882-10050×2iEL31198608-198808

53911PANEL, FRONT VALANCE

main53901-16050iEL31198608-198808

58743BPROTECTER, FRONT FENDER PANEL, RH

main58743-12010iEL31198801-198808

58744BPROTECTER, FRONT FENDER PANEL, LH

main58743-12010iEL31198801-198808

9015960078

main90159-60078

9018906005

main90189-06005

9018906006

main90189-06006

9018906013

main90189-06013

9018906066

main90189-06066

9046705045

main90467-05045

9046707044

main90467-07044

9046708011

main90467-08011

9046708044

main90467-08044

9046711028

main90467-11028

9056206003

main90562-06003

9095001646

main90950-01646

9165140612

main91651-40612

9166540616

main91665-40616

32 parts on this diagram · 1 diagram in section
