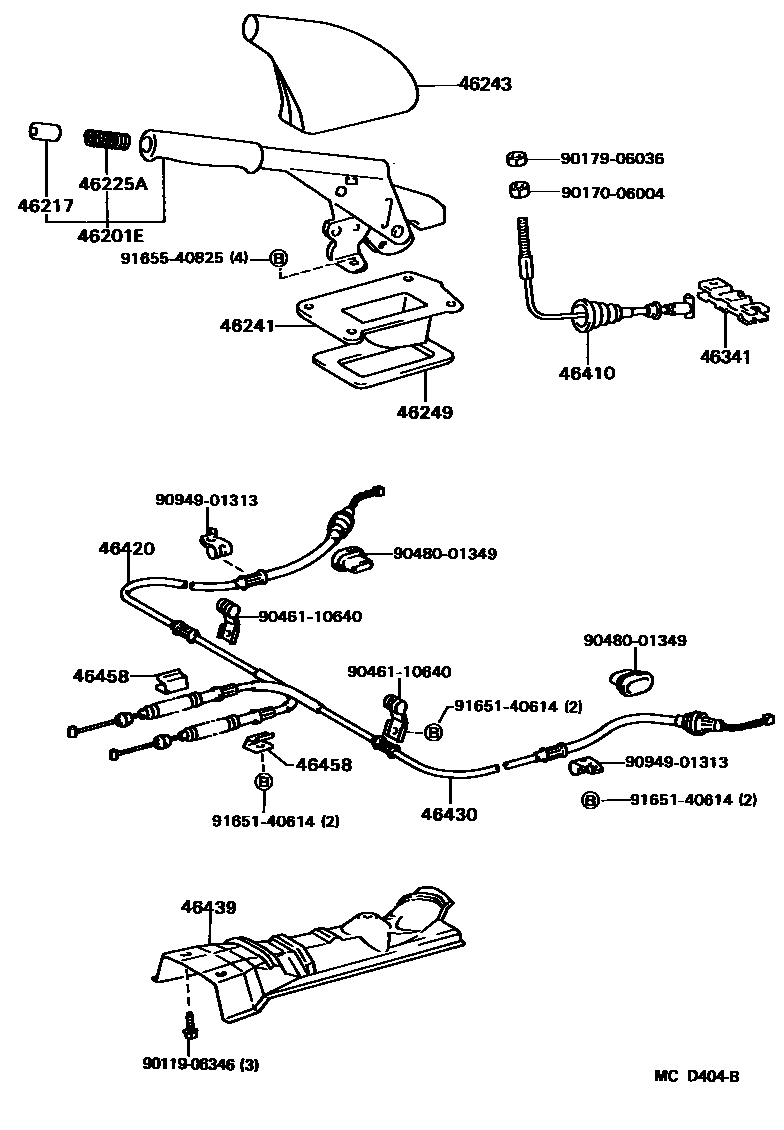

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
BEIGE,DARK BEIGE,TRIM4#
BLACK,NEW BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
BLACK,NEW BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
BLACK,NEW BLACK,TRIM2#
BLUE,BLUE,TRIM8#
46217KNOB, PARKING BRAKE RELEASE ROD
BLACK,NEW BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
BLUE,DEEP BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
46241BOOT, PARKING BRAKE LEVER
46243COVER, PARKING BRAKE LEVER
DECONTENT PACKAGE,BLACK,BLACK,TRIM2#
BLACK
46249SHIELD, PARKING BRAKE HOLE
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
46430CABLE ASSY, PARKING BRAKE, NO.3
46439INSULATOR, PARKING BRAKE CABLE HEAT
46458RETAINER, CABLE
9011906346
main90119-06346
9017006004
main90170-06004
9017906036
main90179-06036
9046110640
main90461-10640
9048001349
main90480-01349
9094901313
main90949-01313
9165140614
main91651-40614
9165540825
main91655-40825
20 parts on this diagram · 1 diagram in section
