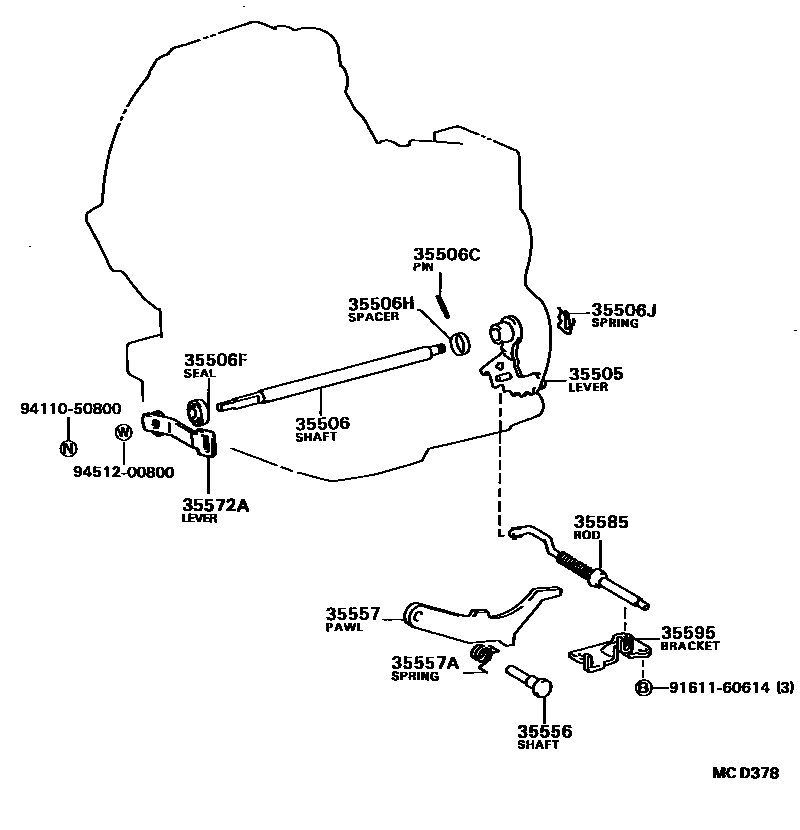

Toyota 131410 — THROTTLE LINK & VALVE LEVER (ATM)
35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35572ALEVER, TRANSMISSION CONTROL SHAFT
35585ROD, PARKING LOCK
35595BRACKET, PARKING LOCK PAWL
9161160614
9411050800
9451200800
15 parts on this diagram · 2 diagrams in section
THROTTLE LINK & VALVE LEVER (ATM) for Toyota 131410
This section contains 18 genuine Toyota parts for the THROTTLE LINK & VALVE LEVER (ATM) system of the Toyota 131410. Key components include: LEVER SUB-ASSY, MANUAL VALVE, SHAFT SUB-ASSY, MANUAL VALVE LEVER, PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT), SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT), SPACER (FOR MANUAL VALVE LEVER SHAFT).
